6800XT REVIEW 6800XT BENCHMARK OVERCLOCK




6800xt review 6800xt benchmark overclock
Posted:2006-06-06 By hardware review
Number of View:352281




6800XT REVIEW 6800XT BENCHMARK

OVERCLOCK



By :hardware review

Posted:2006-06-06






xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source

6800xt review 6800xt benchmark overclock

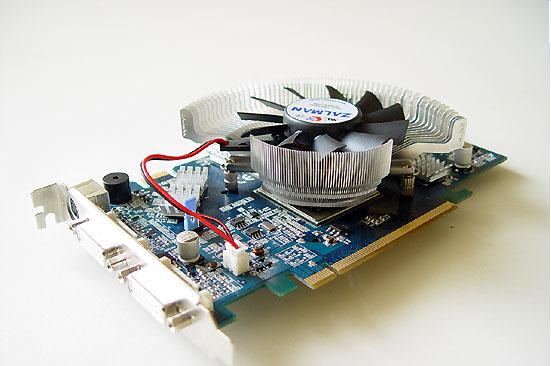

what is the the 6800xt:the card look like the 6800le it s come with nv40 gpu it has 8 pixel and 4 vertex pipelines.the card should come cloocked at 325 MHz  for the gpu and the ram will operate at 700 MHz (256 bit as bus width ) using the nvidia clock referance as u know that some Manufacturers sell preoverclocked card the one witch will be tested today has come with 425 MHz for the core and 500 MHz the memory .the card come clocked a bit high if we taked in our mind the nvida referance clock but it come guaranted to work at those clock and operate stably

as a referance also here is the hole serie specification

  Memory Interface

Memory

Memory Bandwidth

Memory Data Rate

core clock

Pixels per Clock (peak)

Textures per Pixel*

6800 utra

256-bit

512 MB

35.2 GB/sec.

1050 MHz

425 MHz

16

6

6800 gt

256-bit

256mb

32 GB/sec.

1000 MHz

350 MHz

16 6
6800

256-bit

256mb/

128mb

 22.4GB/sec.

 700 MHz

325 MHz

12 5
6800 xt

256-bit

256mb/

128mb

22.4GB/sec.

  700 MHz

325 MHz

8 4
6600gt 128-bit

256mb/

128mb

16 GB/sec.

1000 MHz

500 MHz

8 4

what  (XT) mean: in ati language xt mean xtreme edition it s alwais come with high end card such 1900xtxt or

1800xt etc... but in nvidia side the xt mean cripled budget card

lower pipeline unit ,lower gpu clock and memory  to get the price of the card down

here is full specification list for the nvidia geforce 6 gpu:

6800xt review

CineFX 3.0 Engine


Powers the next generation of cinematic realism. Full support for Microsoft® DirectX® 9.0 Shader Model 3.0 enables stunning and complex special effects. Next-generation shader architecture delivers faster and smoother gameplay.

NVIDIA® PureVideoв„ў Technology


NVIDIA® PureVideoв„ў technology is the combination of a high-definition video processing core and software that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for video content. It delivers home-theater quality high-definition video. Features varies by product.

Programmable Video Processor


NVIDIA PureVideo is a programmable technology that can adapt to new video formats as they are developed, providing a future-proof video solution.

NVIDIA SLI Technology


Delivers up to 2x the performance of a single GPU configuration for unparalleled gaming experiences by allowing two graphics cards to run in parallel. The must-have feature for performance PCI Express graphics, SLI dramatically scales performance on today's hottest games. NVIDIA SLI certified versions of select GeForce PCI Express GPUs only.

UltraShadow II Technology


Enhances the performance of bleeding-edge games, featuring complex scenes with multiple light sources and objects. 2nd-generation technology delivers more than 4x the shadow processing power over the previous generation.

64-Bit Floating Point Texture Filtering and Blending


Based on the OpenEXR technology from Industrial Light & Magic (http://www.openexr.com/), NVIDIA’s 64-bit texture implementation delivers state-of-the-art high dynamic-range (HDR) visual effects through floating point capabilities in shading, filtering, texturing, and blending.

Intellisample 3.0 Technology


The industry’s fastest antialiasing delivers ultra-realistic visuals, with no jagged edges, at lightning-fast speeds. Visual quality is taken to new heights through a new rotated grid sampling pattern.

nView Multi-Display Technology


The NVIDIA® nView® hardware and software technology combination delivers maximum flexibility for multi-display options, and provides unprecedented end-user control of the desktop experience. NVIDIA GPUs are enabled to support multi-displays, but graphics cards vary. Please verify multi-display support in the graphics card before purchasing.

NVIDIA® Digital Vibrance Control® 3.0 Technology


Allows the user to adjust color controls digitally to compensate for the lighting conditions of their workspace, in order to achieve accurate, bright colors in all conditions.

PCI Express Certified


Designed to run perfectly with the next-generation PCI Express bus architecture. This new bus doubles the bandwidth of AGP 8x delivering over 4GB/s in both upstream and downstream data transfers.

What is Shader Model 3

The shader model 3 is an optimized shader model 2.there is no new visual effect .in other word  it is a performance booster is some case over the smart shader 3 .especially with new game patch you can see a great performance improvement sm3 . and of corse u will get smouther gaming using sm3 there is a game support. so u sould be happpy with nvidia geforce series 7 and 6 they fully support the sm3 and yes it help in some game and improve a lot the gaming performance

what is HDR

called high dynamic rendering.HDR is something you all know from games like Far Cry. It's extremely bright lighting that brings a really cool cinematic effect to gaming. This effect is becoming extraordinarily popular.

6800xt hdr6800xt hdr6800xt hdr

HDR is already present in Far Cry, Splinter Cell: Chaos Theory, Serious Sam 2 and in Half Life 2: Lost Coast. It will be available in Unreal 3 and likely a large number of other games, not to mention 3DMark06. Let the screenshots do the talking and click away.

here is now the 6800xt review

System  used was

Mainboard : Gigabyte Asus-SLI motherboard, nForce4 SLI, Socket 939

Cpu : AMD Athlon 64 FX-57, Socket 939

Graphics Cards :

GeForce 6600 GT (PCX) 128 MB
GeForce 6800 XT (PCX) 256 MB
GeForce 6800 (PCX) 128 MBGeForce 6800 GT (PCX) 256 MB
GeForce 7800 GTX (PCX) 512 MB

Memory: 2048 MB (2x1024MB) DDR1 - PC-3200 2-3-2-5

Windows XP Professional SP1
NVIDIA nForce4 Platform Driver 6.39
DirectX 9.0c End User Runtime
ForceWare 81.89
RivaTuner 2.0 (tweak utility)

Game List Used for Test:

Far Cry
Splinter Cell 3
 3DMark03
3DMark05
Serious Sam 2
Doom 3
Quake 4

note the card used in our 6800xt review came with 425 gpu and 1000 MHz memory DDR 3.

6800xt gaming benchmark

Serious Sam 2

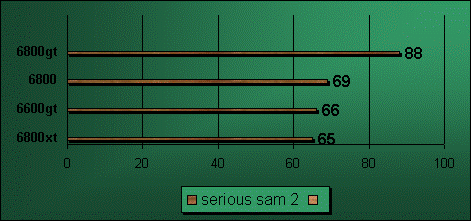

6800xt serious sam2 benchmark

here the 6800xt was beaten by all  other

card the 6600gt win here by 1 fps ,thanks to the high clocked

gpu(500mhz ) . the 256 -bit memory bus of the 6800xt is no helping at

all it still toped out with 6600gt witch have only 128-bit memory

interface.but the 6800 xt is providing enough fps to play with some

moderated high setting the game and enjoy the game play

Splinter cell

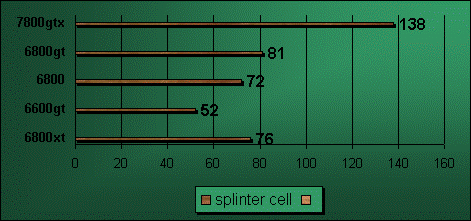

6800xt splinter cell benchmark

wow 138 fps for the 7800gtx card. the

geforce 7 gpu is a lot better than 6 one . the 6800xt is

performance is good here it score 76 fps even higher than the 6800 witch

come with more vertex and pixel shader. the core clock played a large role in this benchmark remenber that the 6800xt card used was

preoverclocked 425/1000 MHz witch higher

by 100 MHz than the nvidia stock referance

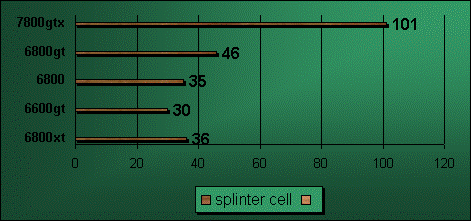

6800xt splinter cell benchmark

here is now some result with Hdr enabled .the only geforce 6 gpu presenting respectable frame rate was the one in 6800gt . the 6800xt  here top the 6600gt and the 6800 by 5 and 1 fps respectivly. the 7800gtx card is provinding awesome performance .with 101 fps witch more than enough

Quake 4

based in open gl witch performing very well in nvidia card (Thanks for nvidia optimized driver)

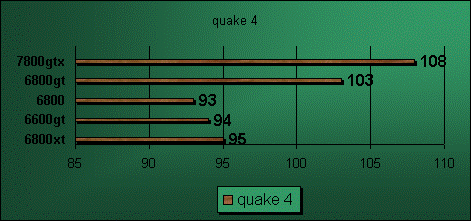

6800xt quake 4 benchmark

nothink especial here it look clearly that the 6800xt performance is somewhere between the 6800gt and 6800 .except

for the 6600gt win here over the 6800 by 1 fps . all the card has

pretty smilar performance lets know move to 16aa and 8 af and see results

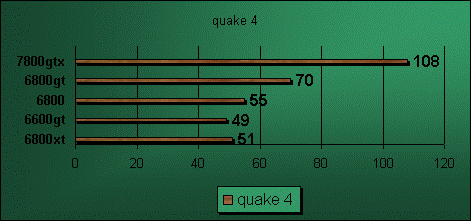

6800xt quake 4 high benchmark

first I would notice impressive performance

of the 7800gtx card look  not even 1 fps drop . all the other card  geforce 6 serie has soufer from the high setting but they still producing enough fps for good game play with full graphic setting enabled.no change here again the 6800xt confirm its place over the 6600gt card

farcry

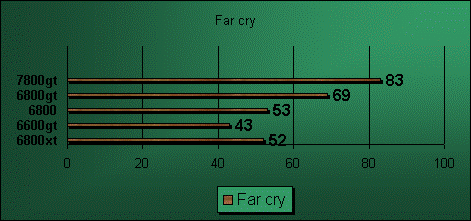

6800xt sfar cry benchmark

the setting used was 1600/1200 resolution . all the card are providing respectable fps but I alwais enjoyed gaming with 60 fps++ as frame rate.the 6800xt is compliting with 6800 card  about the same fame rate. the 6800xt out scored the 6600 gt by 9 fps witch is nice result.

Lets see now some synthetic benchmark

3d2003 benchmark result

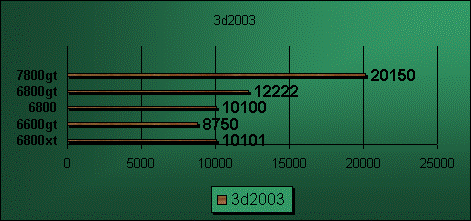

6800xt 3d 2003 benchmark

the result of this benchmark confirm the

performance of the 6800xt card.it is  again somwhere better than 6600gt

and equal or higher from the  6800 stock

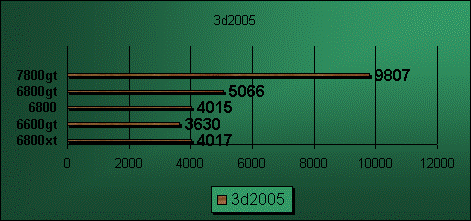

6800xt 3d 2005 benchmark result

6800xt 2d 2005 benchmark

The same here for 3d mark 2005 and the 6800xt performance

6800xt Overclocking

as u know the card come preoverclocked so I was not excepting a high overclock from it.generally the nv 40 gpu

should overclock in 400 MHz ++ range

  Referance clock   Card used   6800xt overclocked result
Core clock 400 Mhz 425  Mhz 475 Mhz
Memory Clock

500 MHz (1000 MHz )

500 MHz (1000 MHz ) 1280 Mhz

The overclocking result of the 6800xt is

pretty good. The onboard DDr 3 memory is also dowing well with 280 MHz

of overclock ,about 25% from the memory and 12% from the gpu.

lets see how much of gaming improvement we have got from this overclock

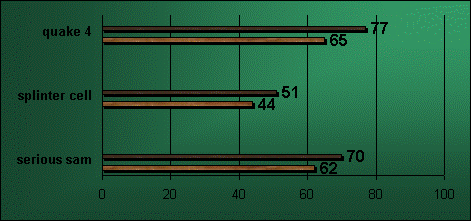

6800xt overclock

about 15 % of performance increse should be
right with the overclocked 6800xt. u can clearly see a nice boost of 10 fps aproxsimativly is those game.

Coclusion of our 6800xt review

First I want to note : the card used in our

test was coupled with DDR 3 memory and preoverclocked card so the

6800xt as nvidia referance card should be a lot lower

325/700 vs 425/1000 this should be about 25% boost . please check twice the card clock before making any order.

The 6800xt is now a good low range card

witch provide enough fps for medium to high setting  gaming .u could

also consider the 7600gt witch is now the middle range card u can check

the review here .
