7600GT REVIEW - 7600GT BENCHMARK

OVERCLOCK - SLI ASUS GIGABYTE

INNO3D LEADTEK XFX



By :hardware review

Posted:2006-05-02






xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source

7600gt review - 7600gt benchmark overclock - sli asus gigabyte inno3d leadtek xfx



The 7600GT benchamrk - 7600gt review  overclock - sli asus gigabyte inno3d leadtek xfx

Today, we will be taking a look at seven different 7600GT graphics cards from six different manufacturers. The 7600GT will be the next card majority of the consumers will be looking to buy because it has a very affordable price tag. In effect, the 7600GT fills in the shoes of "6600GT" of the last Gen.

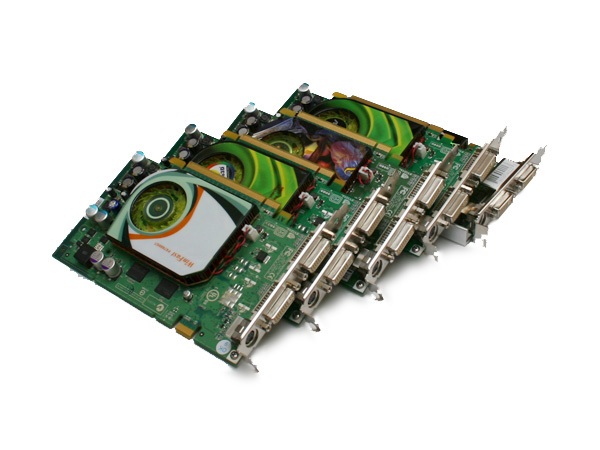

7600gt round up

As you can see, almost all the cards we have here are based completely on the reference design from NVIDIA, right down to the PCB.

This is the list of manufacturers our 7600GT cards come from:

  • Asus
  • Gigabyte
  • Inno3D
  • Leadtek
  • XFX
  • XpertVision

Here is a brief table listing the specifications for the 7600GT:

7600gt round up

As you can see, almost all the cards we have here are based completely on the reference design from NVIDIA, right down to the PCB.

This is the list of manufacturers our 7600GT cards come from:

  • Asus
  • Gigabyte
  • Inno3D
  • Leadtek
  • XFX
  • XpertVision

Here is a brief table listing the specifications for the 7600GT:



GeForce 7600 GT

Graphics Bus Technology PCI Express
Memory 256MB
Memory Interface 128-bit
Memory Bandwidth (GB/sec) 22.4
Fill Rate (Billion pixels/sec) 6.7
Vertices/Second (Millions) 700
Pixels per clock (peak 12
RAMDACs (MHz) 400

The default clocks of the 7600GT is 560MHz for the core and 700MHz for the memory. However, some manufacturers have already pre-overclocked their cards. These cards come from namely XFX and XpertVision. Their cards have speeds of 580/750 and 575/750 respectively.

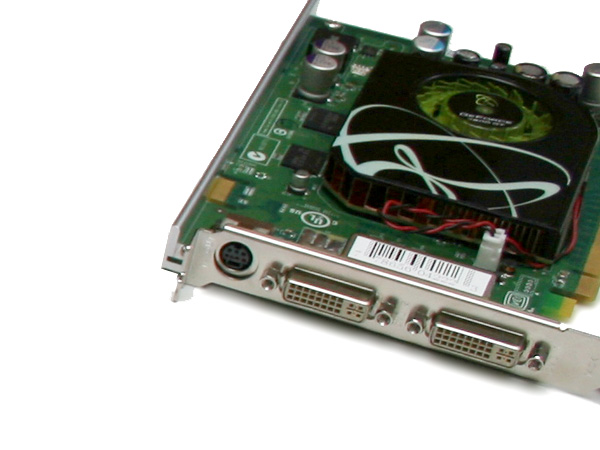

All the 7600GT cards we have come with dual DVI ports, with the exception of the XpertVision 7600GT.

7600GT review.

Processor Intel Pentium D 950 ES @ 3.40GHz stock
Motherboard Asus P5LD2 Deluxe
Memory Corsair CM2X512-4200 512MB x 2 in dual channel @ 266MHz 5.0-5-5-15
Hard Disk Seagate Barracuda 7200.7 80GB SATA
Optical Storage Iomega 24/10/40 CD-RW (Plextor OEM)
Cooling Intel stock heatsink (Sanyo Denki 0.28A)
Graphics Cards Asus EN7600GT
Asus EN7600GT SILENT
Gigabyte 7600GT
Inno3D 7600GT
Leadtek WinFast 7600GT TDH
XFX 7600GT
XpertVision 7600GT
Power Supply Topower TOP-600P7 600W
Display Philips 170B4 17" LCD



Benchmarks are done using the whole 3DMark series. They would be able to give a good gauge of the performance from the cards.

  • 3DMark2001 SE

  • 3DMark05 120

  • 3DMark06 102 3DMark03 360

  •



ASUS EN7600GT benchmark review

First, we shall take a look at what ASUS has to offer.

The ASUS EN7600GT comes in a simple box and goes for a retail price of around USD$225 (SGD$370).

ASUS EN7600GT

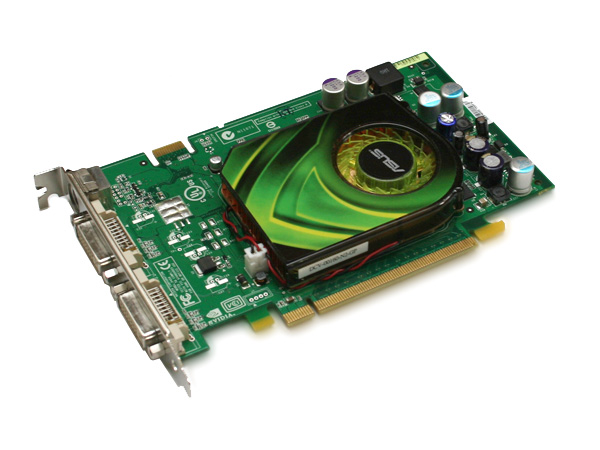

Upon opening the box, we discover that the EN7600GT is based on the reference design. The fan has an ASUS label, but other than that, it looks every single bit like nVidia's own

ASUS EN7600GT

If you were to look at the card from the back, we don't think one would be able to distinguish it from a nVidia sample, minus the stickers stuck on by ASUS themselves.

ASUS EN7600GT

Upon powering up, the fan produces an audible whirr for a few seconds before the RPM drops. The fan noise is kept to a minimum level, until you fire up the Coolbits overclocking utility, or you run 3D applications. When these applications were ran, the RPM moves one step up. You can hear the fan, but it is still not yet at the level when you first power up your system.

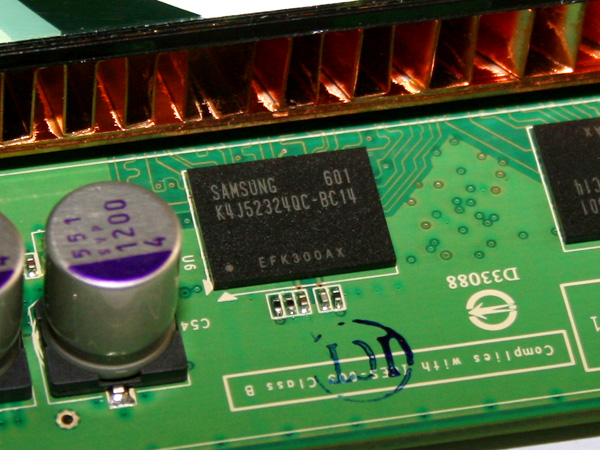

The BGA RAM chips used are produced by Samsung, and they are a 1.4ns part. The same Memory is used on all the other 7600GT cards in this shootout, except the Xpertvision 7600GT which uses Samsung 1.2ns chips. An image of the 1.4ns part can be found later in this review.

As mentioned in the previous pages, we will be using a single set of scores for all the default-clocked 7600GT cards.

  Stock Overclocked
Core 560MHz 625MHz
Memory 700MHz 725MHz

Somehow, this card we have here does not seem to perform well when it comes to memory overclocking. We could only raise the memory speed a little, but the core could scale quite well to 625MHz, up from the default 560MHz.

When clocked to 650MHz on the core, benchmarking would freeze immediately after the loading screen for quite a while before continuing to run. However, major artifact sets in, so we had to reduce the overclock.

  Stock Overclocked
3DMark2001 SE 23500 23721
3DMark03 13600 14361
3DMark05 6100 6520
3DMark06 3300 3532

ASUS EN7600GT Silent benchmark review

We also have the EN7600GT SILENT from ASUS. This card can be had for USD$245 (SGD$404), thereabouts. This si the most expensive card among the pack of 7, but understandably so when you factor in the high cost of it's heatsink.

The box is definitely very attention grabbing since it is so huge. It even comes with a handle, so you can carry it home without a plastic carrier

ASUS EN7600GT



What's special about this card is that it is passive cooled. This means that there is totally no fans on the card for complete silence. Opening the flap on the box, you will see a section explaining what SilentCool 2 Technology is all about. SilentCool is a term used by ASUS to describe their unique heatsink design.

ASUS EN7600GT

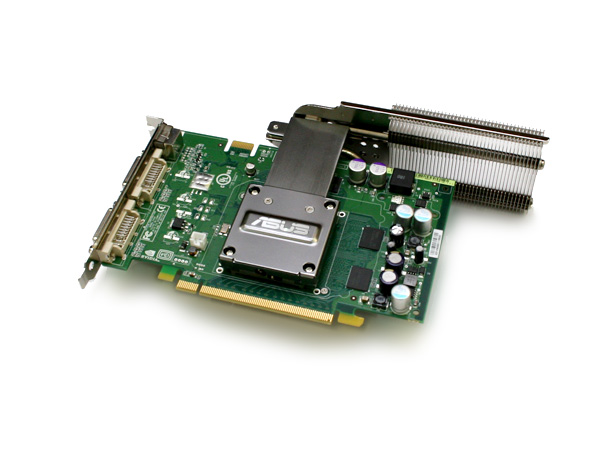

This is the card itself. As you can see, only the core is being cooled. The BGA RAM chips are naked. This card is also using the reference PCB design.

ASUS EN7600GT

Heat is transferred by the use of heatpipes to the suspending fins, as well as the fins behind the card. It gets rather warm to the touch after prolonged use in 3D mode. You can twist the suspended unit 90 degrees depending on your system setup, to get slightly better cooling performance, though we feel that leaving the heatsink in either position is still fine



ASUS EN7600GT

  Stock Overclocked
Core 560MHz 600MHz
Memory 700MHz 775MHz

The core would only run up to 600MHz. Clocking higher can cause random pauses during the course of benchmarking. However, the memory chips could go pretty high, up to 775MHz, not bad for a 1.4ns part.



  Stock Overclocked
3DMark2001 SE 23500 23921
3DMark03 13600 14602
3DMark05 6100 6585
3DMark06 3300 3545

Gigabyte 7600GT overlcok review

Gigabyte's 7600GT comes in a really nice looking box. This card goes around for USD$210 (SGD$348).

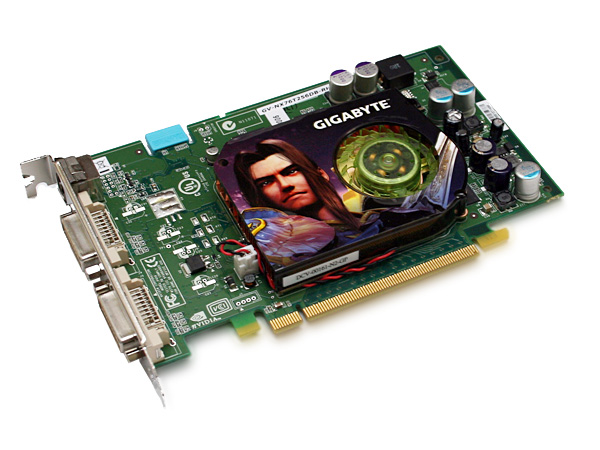

Gigabyte 7600GT

The label on the box, stating what the card has and what is in the package.

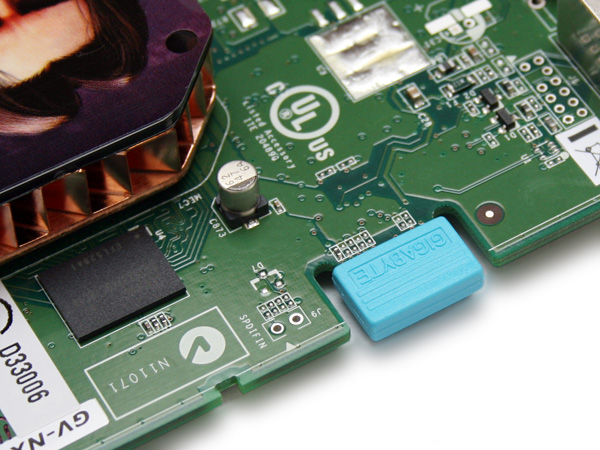

Gigabyte 7600GT

Gigabyte 7600GT

  Stock Overclocked
Core 560MHz 600MHz
Memory 700MHz 750MHz

When overclocking with Coolbits, we attempted a first try of 650MHz on the core. However, upon clicking the button to test changes, the whole system froze and we had to do a hard reset. We clocked the core down to 625MHz then. However, our 3D benchmarks refused to load, stopping with a black screen. We further clocked it down to 600MHz before the card would bench nicely. Memory overclocking wasn't bad, with the memory topping out at 750MHz.

  Stock Overclocked
3DMark2001 SE 23500 23602
3DMark03 13600 14110
3DMark05 6100 6330
3DMark06 3300 3444

Inno3D 7600GT overlcok benchmark

A simple looking box to go with the card which goes for a low price of USD$200 (SGD$330).

Inno3D 7600GT

The card looks exactly like the Asus EN7600GT except for the label



Inno3D 7600GT

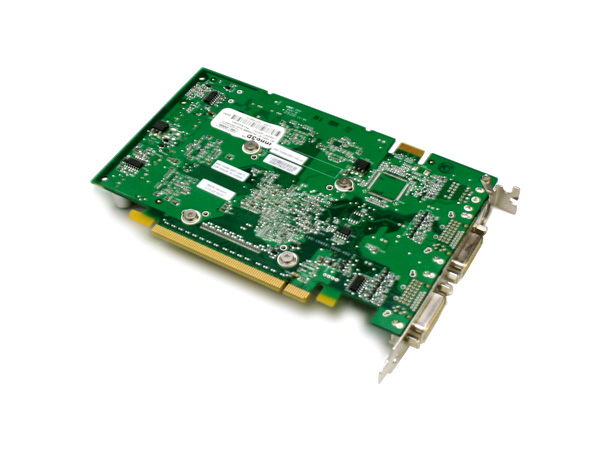

The back of the card.

Inno3D 7600GT

  Stock Overclocked
Core 560MHz 600MHz
Memory 700MHz 800MHz

Poor performance from the core, only managing 600MHz. However, the memory could clock to 800MHz. Impressive for a 1.4ns RAM part. Clocking anything higher than 600MHz causes the benchmarks to freeze momentarily now and then.

  Stock Overclocked
3DMark2001 SE 23500 24101
3DMark03 13600 14772
3DMark05 6100 6677
3DMark06 3300 3560

Leadtek 7600GT overclock benchamrk

Now let us take a look at the Leadtek 7600GT going for a low price tag of USD$200 (SGD$330).

Leadtek boxes always have nice designs and are pretty eye-catching, this one is not an exception either

Leadtek 7600GT overclock

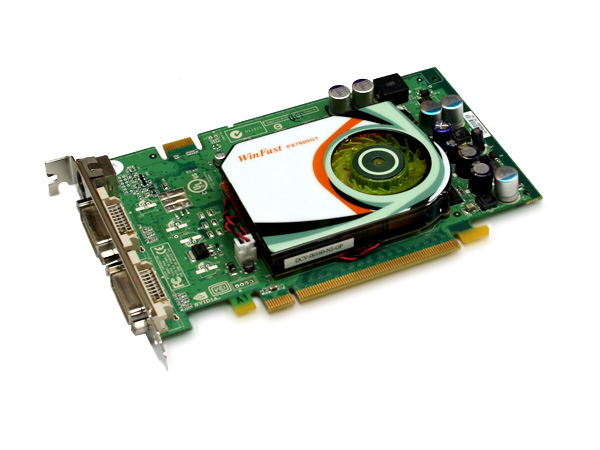

Yet another reference card, but Leadtek has replaced the whole front of the heatsink with their own label cover, customizing the sticker on the fan hub as well.




Leadtek 7600GT

However, one thing to note is that there is no fan speed control on this card. The fan runs at full blast right from the start. As with all reference heatsinks, the whirr produced by the fan is quite audible, so do keep this in mind. Also, there is no temperature readout when using the nVidia control panel. As a result, there is no auto overclocking option with Coolbits. I guess this has to do with Leadtek's Home-brewed BIOS which is quite different from the others.

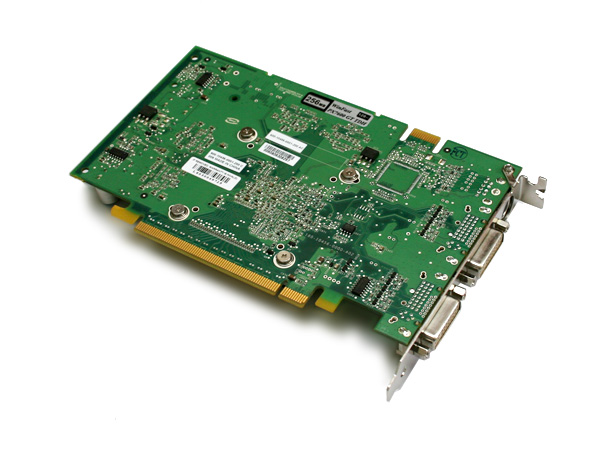

The back of the card

Leadtek 7600GT

The RAM chips used are Samsung 1.4ns, just like the ones used on all the other brands except Xpertvision's

Leadtek 7600GT

We understand that there is another 7600GT TDH from Leadtek which has Leadtek's own heatsink design. It covers the core and also all the BGA RAM chips. We believe this would bring down the noise levels considerably considering the fact that the fan used on Leadtek's own heatsink is much larger.

Anyway, let us take a look at the overclocked numbers.

  Stock Overclocked
Core 560MHz 640MHz
Memory 700MHz 800MHz

Leadtek has been known for creating cards with great overclockability. Here, we see that the Leadtek is the highest clocked of the pack. 650MHz on the core, but there were some random freezes during benchmarking. No artifacting after the freezes occurred, unlike all the other cards in this roundup. The memory could go all the way to 800MHz without any sweat. Pretty amazing stuff here.

  Stock Overclocked
3DMark2001 SE 23500 24422
3DMark03 13600 15239
3DMark05 6100 6916
3DMark06 3300 3720

This card exhibits good overclocking potential. We believe that the 7600GT TDH and the 7600GT TDH Extreme using Leadtek's own heatsink design would be able to clock even further.

XFX 7600GT review

As usual, XFX's 7600GT comes in the unique X-shaped packaging and goes for the price of USD$242 (SGD$400.

XFX 7600GT review



You can see the card itself through the plastic cover at the back of the box.

XFX 7600GT review

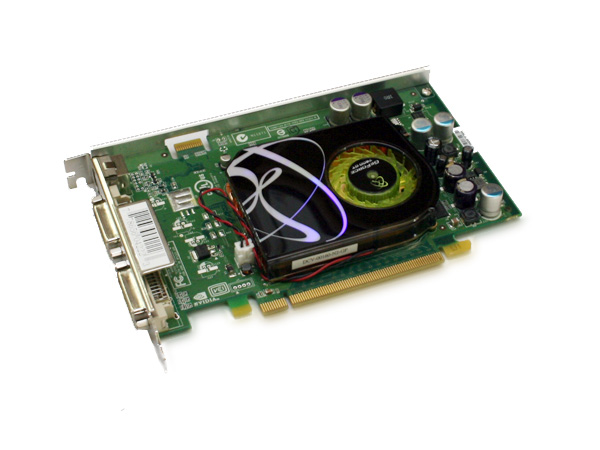

The heatsink cover is reflective, and it looks pretty cool. The heatsink used is reference.

XFX 7600GT review



Like the other reference cards, the fan RPM can be distinguished to three different speeds. Highest speed upon powering on the sysem, lowest speed in 2D mode, and medium speed in 3D mode.

Interestingly, this card comes with a metal bar at the top, to prevent the card from warping. However, we do not think there is a need for this on the 7600GT because the card is short and the heatsink is light, but many of us agree that this bar adds a cool factor to the card right?

XFX 7600GT review

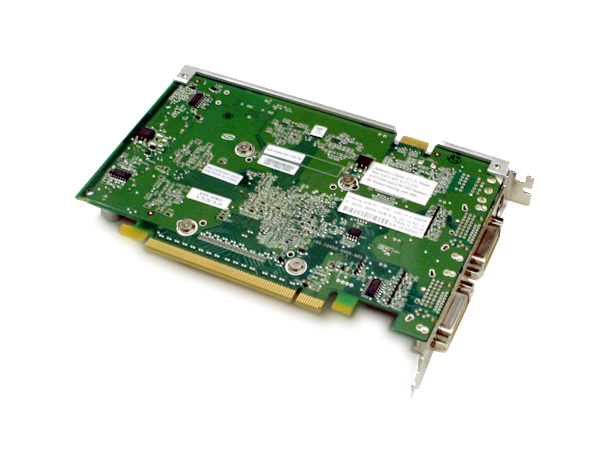

Here is the back of the card. Nothing special, just like any other reference card.

XFX 7600GT review



This card has been pre-overclocked already.

  Stock (Factory Overclock) Overclocked
Core 580MHz 600MHz
Memory 750MHz 775MHz

The core would go only up to 600MHz. The card locks up if we clock higher. The memory could clock to 775MHz.

  Stock Overclocked
3DMark2001 SE 22260 22296
3DMark03 13738 14167
3DMark05 6183 6386
3DMark06 3424 3556

We note that the scores at the 'stock' speed of 580/750 are somewhat lower as compared to the XpertVision card we reviewed on the following page.

XpertVision 7600GT review

The box is pretty huge, but still nowhere the size of the Asus EN7600GT SILENT's box. This card goes for around USD$206 (SGD$340).

XpertVision 7600GT review



We have the label, stating it's a 7600GT card with 256MB of DDR3 memory. The card has already been factory clocked to a higher speed, but nothing was mentioned on the box.

XpertVision 7600GT review

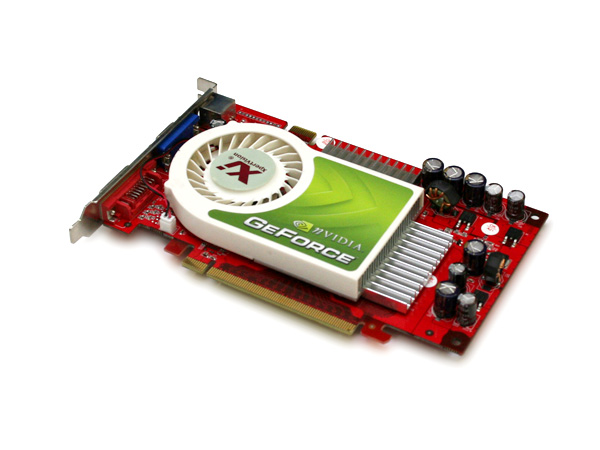

Xpertvision has chosen to go with their own PCB design for the 7600GT card. The heatsink unit used on the card is also different from all the others in this 7600GT shootout. The heatsink is made of aluminium with pretty thick fins and they are well spaced out. The RAM sinks are stuck on by white thermal tape and they really hold well. However, during benchmark sessions, the RAM heatsinks did not heat up much, so we guess placing RAM sinks on the chips have little effect on the maximum overclock. But well, it does improve the card's aesthetics, subjectively. It's quite refreshing to see a card that is different then go through repeats when we were doing this shoot-out.

XpertVision 7600GT review

Now isn't that a sweet-looking card? The blower used on this card is bigger than those used on other 7600GT cards. At full blast, this fan produces comparatively lesser noise than the reference heatsink unit. This fan moves quite a fair bit of air too.

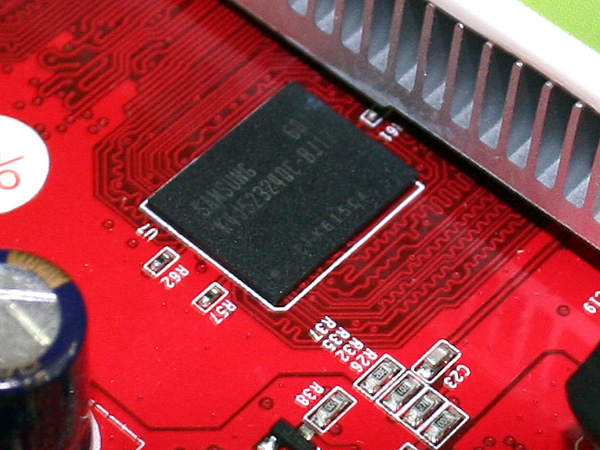

The memory used on this card is Samsung 1.2ns. Some of the markings have faded when we removed the RAM sink, which stuck like glue to the chips.

XpertVision 7600GT review

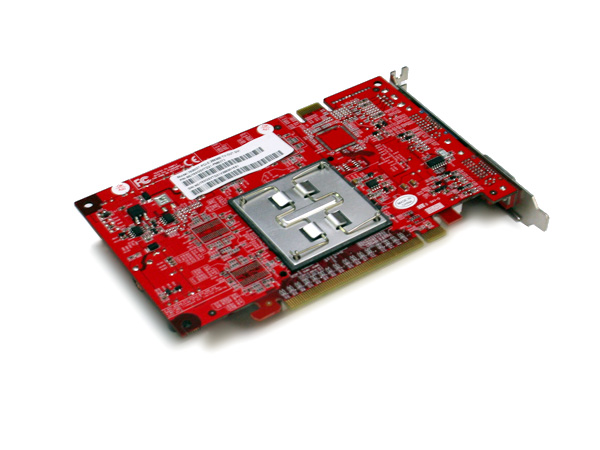

The mounting for this card's heatsink is somewhat interesting. Instead of screws, it uses a backplate with metal wires and hooks.

XpertVision 7600GT review



In addition, this is the only card in the 7600GT overclocking shootout that has both analog and DVI outputs. All other 7600GT cards have dual DVI outputs. To some users on LCDs with only analog connection or CRT users, this might be good news as there is no need to use a converter.

XpertVision 7600GT review



This card has been factory overclocked to 575MHz for the core and 750MHz for the memory. Let's take a look at some numbers.

  Stock (Factory Overclock) Overclocked
Core 575MHz 600MHz
Memory 750MHz 750MHz

Looks like the card is pretty much max-ed out already. 650MHz on the core caused major artifact, while at 625MHz, the card was able to complete benchmarks, but the scores were lower than at the factory overclocked speeds! The memory could not go further though. We found it pretty weird because technically a 1.2ns part should be able to clear 800MHz clock. Perhaps some tweaking was done to the memory timings? We are unsure of this.

  Stock (Factory Overclock) Overclocked
3DMark2001 SE 23548 23609
3DMark03 13924 14119
3DMark05 6238 6356
3DMark06 3375 3453

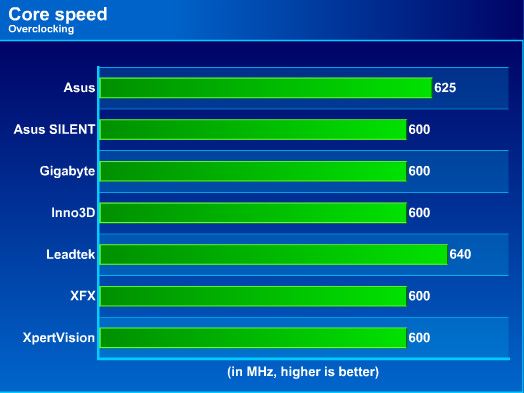

Core Overclock Speed

Here is a summary of the overclocks managed on each card for both the core and the memory.

Core Overclock Speed

Most of the cards here can manage a speed of 600MHz for the core, except the ASUS EN7600GT and the Leadtek 7600GT TDH, with which both card cleared the 600MHz line by quite a bit.

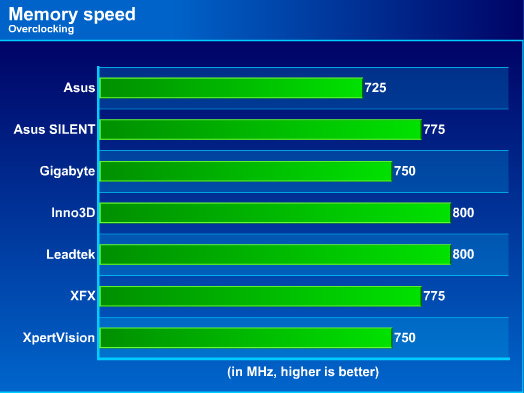

Memory Overclock SPeed

A mixed bag of results for the memory clocks though. We see two extreme ends here.

Memory Overclock SPeed

It is surprising that the Samsung 1.2ns BGA RAM chips on the XpertVision 7600GT did quite badly in the overclocking department. We were unable to raise the clocks further. Minimal clock increase was given on the ASUS EN7600GT card, with only a jump of 65MHz speed. The Inno3D and Leadtek cards are the fastest lot here, both of them hitting 800MHz

Here are the performance results from the 3DMark series, after the cards have each been overclocked to their prime.

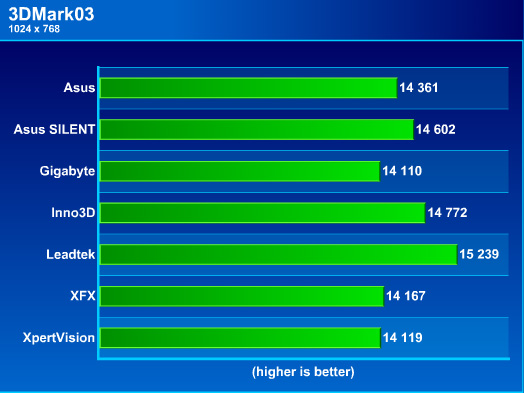

3d mark 2003 7600gt  benchmark

3d mark 2003 7600gt  benchmark

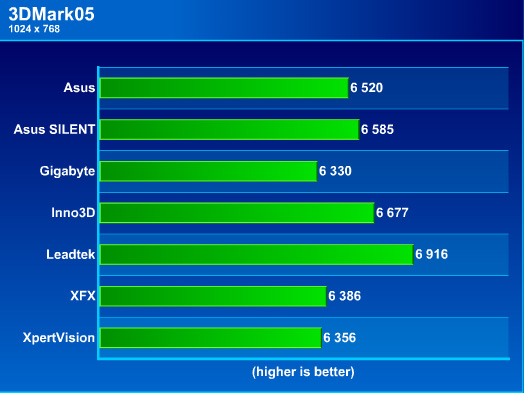

3d mark 2005 7600gt  benchmark

3d mark 2005 7600gt  benchmark

3d mark 2006 7600gt  benchmark

3d mark 2006 7600gt  benchmark

3d mark 2001 7600gt  benchmark

3d mark 2001 7600gt  benchmark

The Leadtek card pulls away from the rest of the competition, mainly due to its superior clocks as compared to the rest of the cards.

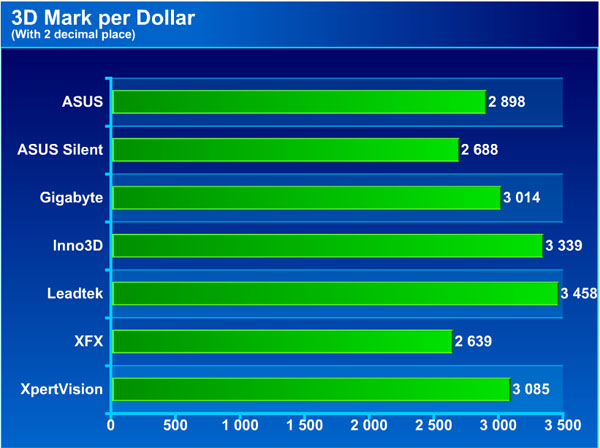

7600 gt Value For Money Scale

For users who are solely interested in performance and $(which is a large percentage of the gaming crowd I'm quite sure), here is the Bang for the Buck Scale for your reference. Take note that this ignores other factors such as RMA Service, Package Bundle, Noise

7600 gt Value For Money Scale

Each card had it's 3D Mark 05 score divided by it's retail price.

We can see that in terms of value-for-money, the Leadtek stands at the top of the pack. Inno3D 7600GT comes in second for value and the XpertVision a third position. Cross comparing these top 3 value cards, only the XpertVision features an improved cooler which reduces noise and improves cooling. So that should put it's value a bit higher than represented by the chart.

At the bottom of the chart is the XFX 7600GT which is over-priced for the performance offered when you compare against the rest. The ASUS EN7600GT Silent is priced rather high on the price/performance scale as well, but it offers total silence with it's passive cooler. The XFX gives nothing but the bare minimum reference cooler.

Round up 7600gt conclusion

The 7600GT cards seem to be voltage limited on the core. The cards all hit a barrier at 650MHz, where at this speed, major artifact come up with the whole screen drawing only black and green objects and lines. With a voltage mod, we are pretty confident these cards can go further. During the operation of the cards, they ran at acceptable temperatures, thus we believe that artifacting at 650MHz isn't really caused by heat issues.

The BGA RAM chips used on all the cards are Samsung 1.4ns. The average speed that they could reach is about 775MHz, with the Inno3D and Leadtek cards surpassing the average levels clocking in at 800MHz. As for the Samsung 1.2ns on the XpertVision card, they may be running faster internal memory timings because we were unable to increase the speed further, and were stuck at the factory overclocked speed of 750MHz.

The card that gave the most value is the Leadtek WinFast 7600GT TDH. It managed to achieve a stable clockspeed of 640/800, up from the default of 560/700. For the overclockability it offers and the low price it goes for, no card in the pack of 7 can beat this.

If you're looking for a quiet solution and will probably not overclock, then the XpertVision 7600GT makes a very good choice. It already comes higher clocked than most of the other cards, has both analog and DVI outputs and the cooling solution is both quiet and effective. It comes with a tough-to-beat price when you think about the additional features it offers on top of the compared cards, namely the special cooler and higher stock clocks. In fact, these seem to come free when you check it's price tag.

The XFX 7600GT turned out to be the biggest letdown. It does not offer any special cooler, nor is the overclockability up to par with the rest of the pack (Probably because the overclockable cards get all binned to retail as the XXX edition), but it clings onto a premium price tag which is not really justified in comparision









xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source

7600gt review - 7600gt benchmark overclock - sli asus gigabyte inno3d leadtek xfx







we would be happy to answer for your question . if you have suggestion or comment regarding this review our support would be glad to help just join our forum and ask u will get the best answer to discuss check our forum section :-)

RATE THIS REVIEW

   / 5   View Stat

xtreview -  7600gt review - 7600gt benchmark overclock - sli asus gigabyte inno3d leadtek xfx

7600gt review - 7600gt benchmark overclock - sli asus gigabyte inno3d leadtek xfx
7600gt review - 7600gt benchmark overclock - sli asus gigabyte inno3d leadtek xfx


xtreview -  7600gt is the middle card range.
We already benchmarked this video card and found that ...

7600gt review
7600gt is the middle card range. We already benchmarked this video card and found that ...



Loading ...


Search News

 geforce 8800gtx and 8800gts
 Xtreview software download Section
 AMD TURION 64 X2 REVIEW
 INTEL PENTIUM D 920 , INTEL PENTIUM D 930
 6800XT REVIEW
 computer hardware REVIEW
 INTEL CONROE CORE DUO 2 REVIEW VS AMD AM2
  INTEL PENTIUM D 805 INTEL D805
 Free desktop wallpaper
 online fighting game
 Xtreview price comparison center
Lastest 15 Reviews

  • 233-e8600 vs q9400 which is better dual or quad core
  • By:Cpu review

  • 232-intel core i7 920 review benchmark and overclocking
  • By:processor review

  • 231-efi bios review msi click bios
  • By:Other review

  • 230-driver scanner review , search and update your drivers
  • By:Software review

  • 229-radeon hd 4670 vs geforce 9500 gt vs geforce 9800 gt vs hd 4850 overclock benchmark and review
  • By:Video card review

  • 228-crossfire hd 4870 x2 vs crossfire hd 4870 review and benchamrk
  • By:Video card review

  • 227-hd 4870 x2 vs gtx 280 full review and benchmark
  • By:computer news

  • 226-amd radeon hd 4870 x2 2x1gb xtreview exclusive review
  • By:Video card review

  • 225-best antivirus software for 2008 - full review
  • By:computer news

  • 224-registry cleaner roundup
  • By:computer news

  • 223-apack zerotherm processor cooler review : btf80 btf90 btf92 o.e btf95 fanless and nirvana nv120 premium
  • By:Processor cooler review

  • 222-choosing your computer optimum configurations
  • By:computer selection

  • 221-budget cooler review
  • By:Cooler review

  • 220-nvidia 9600 gt review and benchmark
  • By:video card review

  • 219-geforce 8800 gts vs 8800 gt vs hd 2900 xt vs hd 3850 vs hd 3870 review benchmark and overclocking
  • By:Video card review

    Click Here To



  • 101-sony vgn-fj1sr review notebook performance benchmark
  • By:notebook review

  • 102-toshiba tecra a6-s513 review notebook performance benchmark
  • By:notebook review

  • 103-retrieve lost partition undelete unformat file recovery
  • By:hdd recovery

  • 104-imac review intel duo core vs imac g5
  • By:hardware review

  • 105-x1900xtx review benchmark overclock performance
  • By:video card review

  • 106-nvidia nforce 500 vs ati crossfire 3200 chipset review
  • By:chipset review

  • 107-d 310 review celeron d310 overclock
  • By:cpu review

  • 108-intel conroe core duo 2 review vs amd am2
  • By:cpu review

  • 109-external hard drive review test comparison : transcend smartdisk kano codi seagate wiebetech wd buffalo linksys ximeta cms
  • By:hdd test

  • 110-cpu comparison chart benchmark intel vs amd speed 3damrk unreal2004 far cry doom
  • By:new reviewer

  • 111-cpu comparison chart benchmark encoding intel vs amd speed
  • By:new reviewer

  • 112-cpu comparison chart daily use benchmark intel vs amd speed
  • By:new reviewer

  • 113-reset bios password dell laptop desktop toshiba ibm compaq and other
  • By:hardware review

  • 114-7600gs review overclock benchmark volt mod : palit
  • By:video card review

  • 115-conroe e6600 review benchmark vs amd fx 62 vs fx 60 vs intel 955 xe
  • By:conroe reiew






































































































































































































































































































































































































































































































































































    xtreview -








    video card 7900 GTX















    Last News


    - Micron Technology Company introduced an enterprise-class SSDs M500DC
    - 5.5-inch iPhone is delayed because of problems with the batteries
    - Fitness bracelet Samsung Gear Fit sold 250,000 copies
    - Quarterly Apple Report iPad sales fell markedly
    - smartphone market slowdown hit on ARM revenue
    - Apple boasts a market successes iPhone 4s
    - Cook called iPad a major bestseller in the history of the company
    - Apple talk about new products
    - In the first quarter, Motorola managed to sell 6.5 million smartphones
    - Xiaomi is preparing to attack the market of ten more countries
    - Sales of GeForce GTX Titan Z will start 29 April
    - Raijintek Morpheus universal cooling system for powerful RAMDAC
    - Japan Display unveiled a 10.1-inch LCD display with a resolution Ultra HD
    - In the first quarter was shipped almost 60 million tablets
    - Plextor M6S SSD
    - 64-bit Android-based device will be available by Christmas
    - Financial statements Qualcomm was worse than predicted
    - Galaxy S5 Crystal Edition
    - Analysts predict a decline in Apple revenue
    - Apple register jewelry brand















































































































































































































































































































































































































































































































































































      Click Here For Full Screen Size
    HALO 3 HALO 3 - Final Fight!



    PREY Prey is something you don t often see anymore: a totally unigue shooter experience.
    Today Image

    computer news computer parts review Old Forum Downloads New Forum Login Join Articles terms Hardware blog Sitemap Get Freebies

    Page loaded in 0.050 seconds.

    xtreview English to German | xtreview English to Spanish | xtreview English to French | xtreview English to Italian | xtreview English to Portuguese | xtreview English to Greek | xtreview English to Japenese | xtreview English to Korean | xtreview English to Russian | xtreview English To Chinese Tradational | xtreview English To arabic
