POSTER: computer news   ||   GEFORCE GTX 480 PHOTOGRAPHS	DATE:2010-03-04

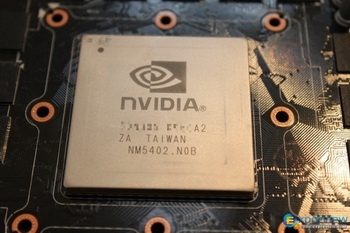

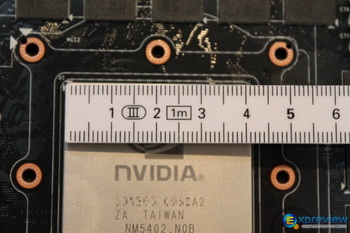

Yesterday we were introduced the appearance of first series GeForce GTX 470, and today appeared the photographs Of GeForce GTX 480. The printed-circuit board Of GeForce GTX 480 differs from the GeForce GTX 470. Twelve memory microcircuits form the 384- bit  memory bus and are located, as before, in three rows on 3+5+4 pieces. The Graphic processor is hidden under the massive shielding heat-distributive plate and takes the form typical for high end NVIDIA GPU for last years. On the left side, we see already customary two interfaces MIO, and also pairs DVI . However, here instead of  S -Video we have the contemporary and more urgent HDMI. In the right side was placed a power-supply system, which counts six phases (three groups of two phases) for the graphic processor and two phases for the GDDR5 video memory. There are two additional  six-pin and octal power connector, which with 75 W from the PCI express bus limits nax consumption to 300 W. Here is the graphic processor: It has the revision a2, and the packing size is approximately 41 X 41 mm., which less than in GT200. It is possible to speak a little about the cooling system: There are four heat pipes.  The preparation for the announcement, goes at the full speed: Related Products :

	xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source

Xtreview Support N-Post:xxxx Xtreview Support	GEFORCE GTX 480 PHOTOGRAPHS
	Please Feel Free to write any Comment; Thanks

XT Future Member N-Post:	GEFORCE GTX 480 PHOTOGRAPHS
	Why is the review of a GTX 480 and the box display \"ATI 5000 series\" ? o.O

XT Future Member N-Post:	GEFORCE GTX 480 PHOTOGRAPHS
	This is a new card prepared by AMD, we just post it without details, since they are not available, for the moment.
