In the Japanese market appeared motherboards ASUS Z10PE-D16 and Z10PA-D8, equipped with two connectors LGA 2011-3. Â Both solutions are intended for use in a server or workstation and support processors Haswell-EP (Xeon E5-2600 v3).

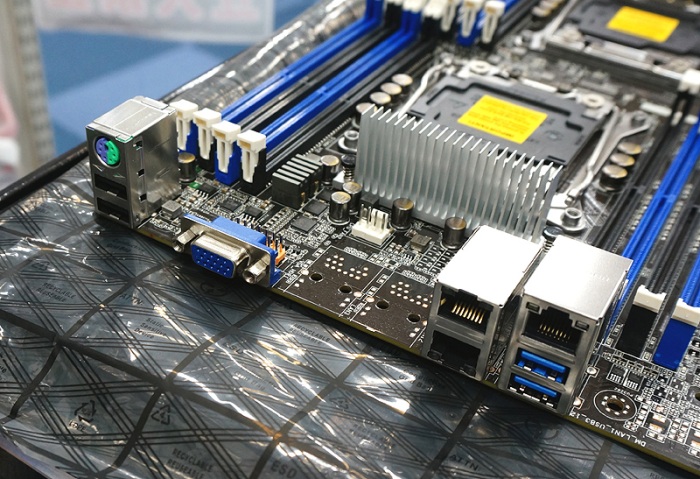

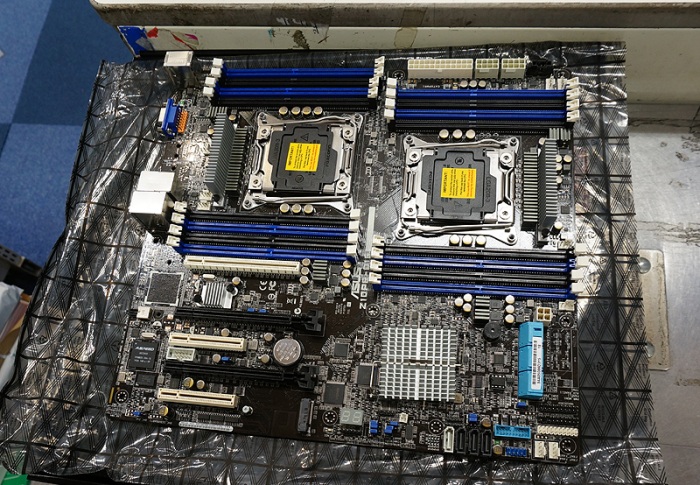

Fee Z10PE-D16 is based on Intel C612 chipset and has 16 slots for RAM type DDR4. Â Compatible RAM modules type RDIMM, NVDIMM and LRDIMM, the maximum amount of memory in the case of the latter can be up to one terabyte. Â Only five expansion slots, three PCI Express 3.0 x16, one PCI Express 3.0 x8 and one PCI Express x4 (physically x8). Â The chipset, Â supports 10 SATA 6 Gb / s, optionally available controller ASUS PIKE II, adding another 8-port SAS.

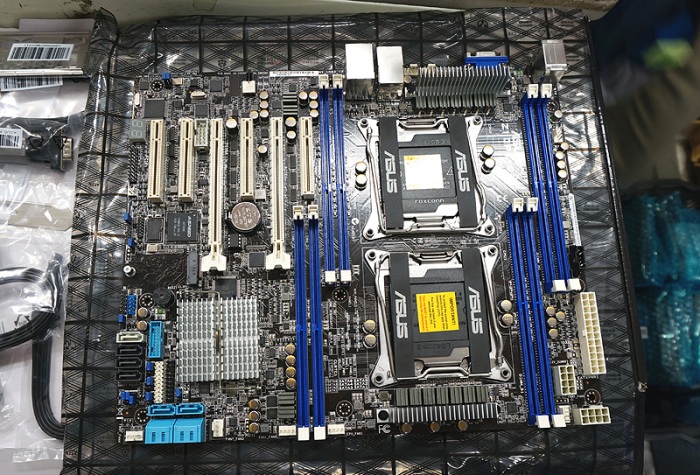

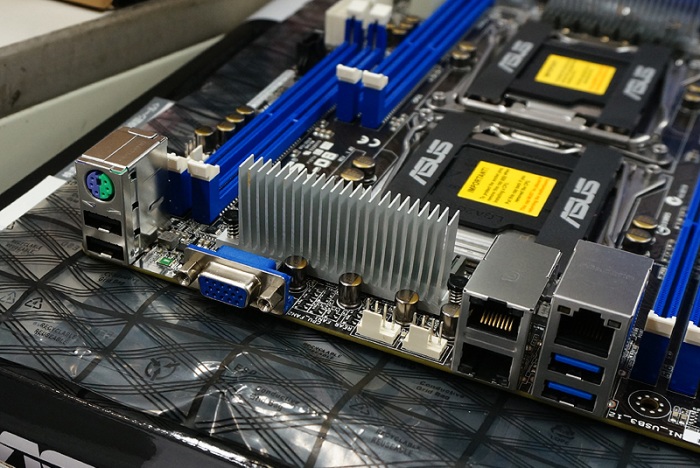

Z10PA-D8 has a smaller size compared to Z10PE-D16 - 305 × 244 mm (ATX) against 305 × 330 mm (EEB).  Maximum memory volume is limited to 512 GB.  Instead of a single slot PCI Express 3.0 x16 on the board there are two slots PCI Express 3.0 x8, and the total number of expansion slots increased to 6 pieces.  The configuration of the SATA ports at Z10PA-D8 coincides with  Z10PE-D16.
