Biostar Company has recently focused on the release of budget motherboards of , though sometimes occur breakthrough" like Z170X4 Gaming for future processors Intel Skylake in LGA 1151.
This week were presented just two low-end motherboards on chipset AMD A68H and future-oriented processors AMD Godavari.
Biostar Hi-Fi A68U3P focused on video playback resolution 4k (connector have HDMI) and is equipped with audio system Biostar Puro Hi-Fi Audio, based, however, on a very old six-channel codec Realtek ALC662, which accompanied a decorative cover portions of conductive layers of the PCB without (for additional protection against interference with other components on the board) and capacitors with liquid electrolyte. The board also received protection from destruction through Ethernet-cable «Super
LAN Surge Protection», Gigabit Ethernet Controller - Realtek RTL8111G.

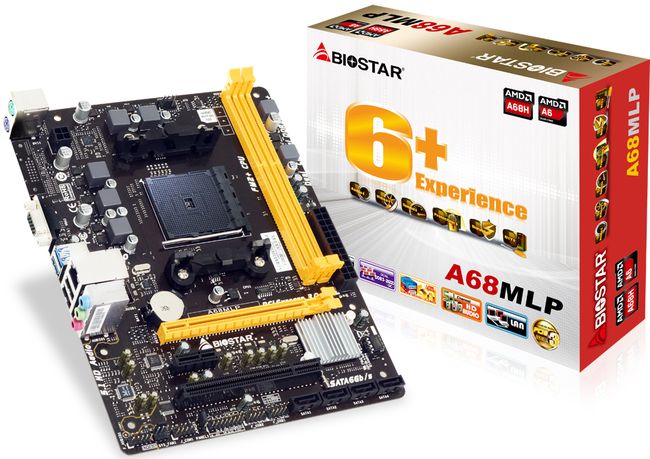

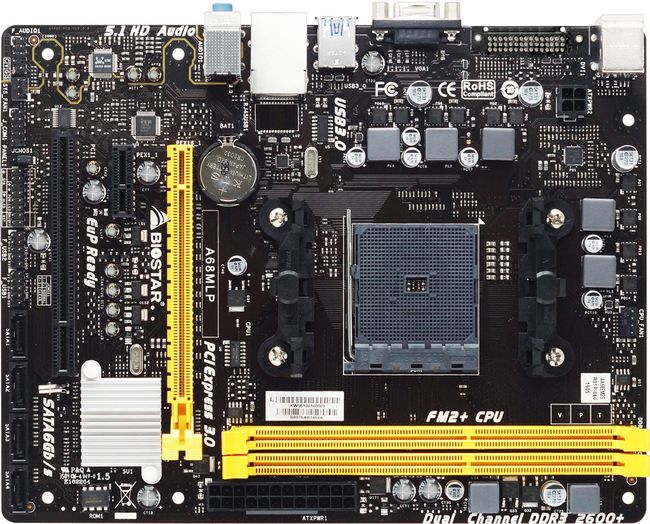

Biostar A68MLP - a more modest solution: there is no word about the HD video (motherboard lacks the HDMI and DVI - left only D-Sub) and the advanced audio system (it is indeed the case: there is no extra body kit Four capacitors while still present).
The rest of the board is very similar: the form factor of performance mATX, for processors power meet the five phases (likely Scheme 3 + 2), supported not only the future AMD Godavari, but in general all the processors Socket FM2 and FM2 + with the value TDP not more than 100 Watt, uses two memory slots DDR3 (total volume of not more than 32 GB), 2 ports USB 3.0 (no longer support A68H) and 6 ports USB 2.0.
Three expansion slots: one PEG (PCI-Express 3.0 / 2.0 x16 - version differs depending on the CPU), one PCI-Express 2.0 x1 and one PCI. The disk system is based on four SATA3.
The recommended price of Hi-Fi A68U3P is $ 49 and the price tag on A68MLP will be even lower. Related Products :
|
