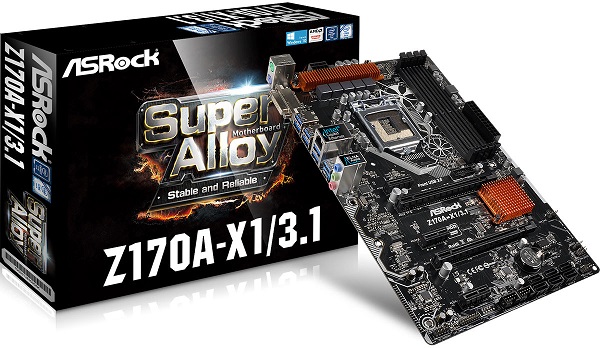

ASRock has unveiled one of the first motherboards worth up to $ 100 to the CPU socket LGA 1151 interface, and support USB 3.1. Novelty called Z170A-X1 / 3.1 it is based on chipset Intel Z170. It is designed to work with Intel's sixth-generation (Skylake).

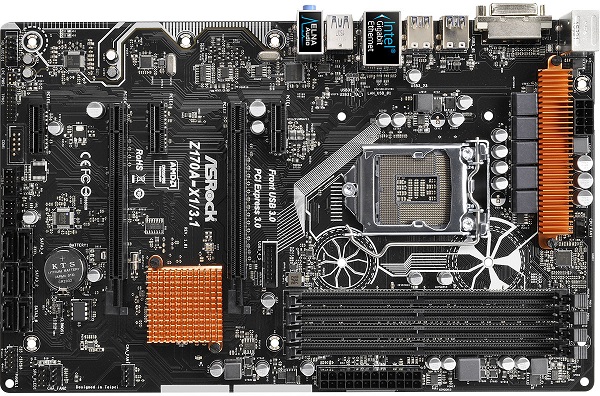

The board has a form factor ATX. It is made of a proprietary standard Super Alloy. It is equipped with high-quality chokes Premium 50A Power, and its printed circuit board has a high durability and improved protection against short circuits. The power system consists of five phases.
ASRock Z170A-X1 / 3.1 is equipped with four slots for memory modules DDR4, which can take up to 64 GB of memory with a frequency of 3466 MHz (OC). A set of expansion slots includes two slots PCI Express 3.0 x16, and three PCI-Express 3.0 x1. Unfortunately, for connecting storage devices have only six SATA 6 Gb / s, but there are no connectors M.2.

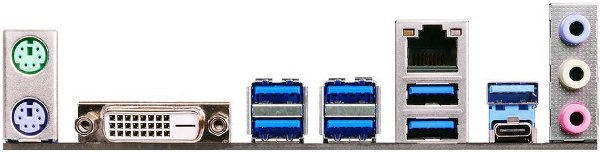

Z170A-X1 / 3.1 is equipped with a sound system based on the Realtek ALC892 codec and ELNA. For network connections have gigabit adapter Intel i219V. Rear panel connectors include ports USB 3.1 Type-C and Type-A with a transfer rate of up to 10 Gbit / s, six ports USB 3.0, two PS / 2 connector, a network port, video output DVI-D and a set of audio. Related Products :
|
