Even last month, the German enthusiast Der8auer successfully applied in practice, hardware modification of power system for video card GeForce GTX 1060 by Palit and Asus, to raise the voltage "on the core" to 1.24 V and increase the GPU frequency up to 2.2 GHz with air cooling. Now on the web, you can find a video with the description on the video modification experiment by Gainward's, moreover recorded this video on intelligible English, which significantly expands the audience compared to the German-language version .

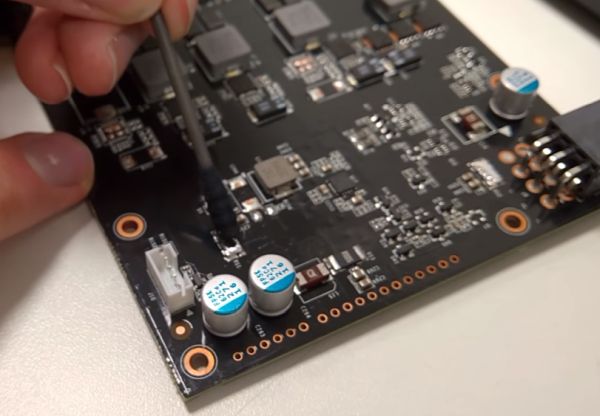

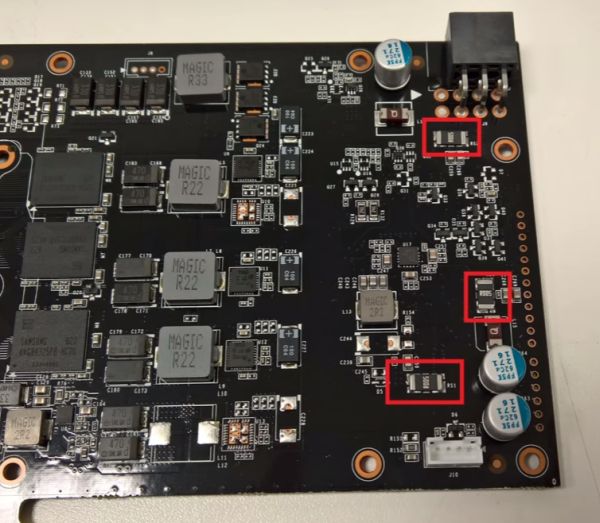

As already established pattern, Der8auer shunt resistor in three power system of video card using the "liquid metal" .

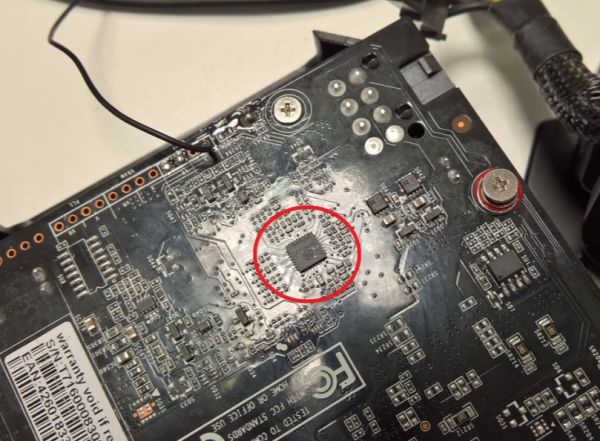

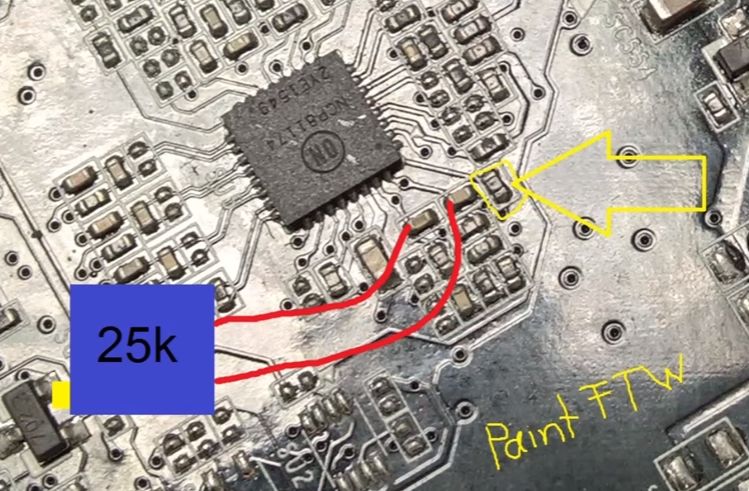

on the reverse side of the PCB has been soldered trimmer, who has participated in the management of the GPU voltage.
It was established experimentally that above 1.25 when using air cooling to raise the voltagemakes no sense.

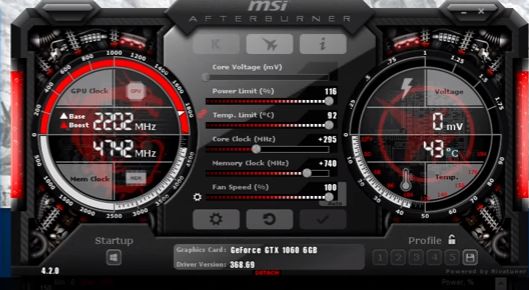

After all the manipulations of the video card GeForce GTX 1060 by Gainward was overclocked to 2200/9484 MHz, which is almost 200 MHz higher than the result obtained before the modification of the power system.
