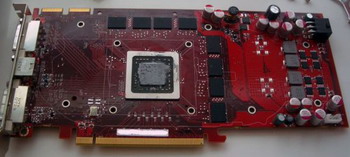

Here is the radeon HD 4850 without cooling system .

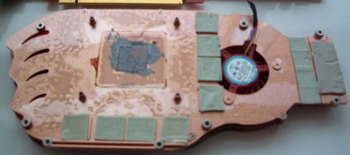

The cooler base is supplied with thermal-pad for memory microcircuits and power transistors.

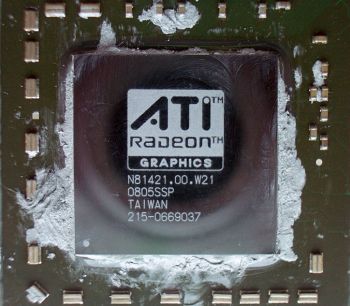

Obviously, this RV770 video chip copy is released on the fifth week of 2008 . It is assumed that this video chip will operate at 625 MHz frequency .

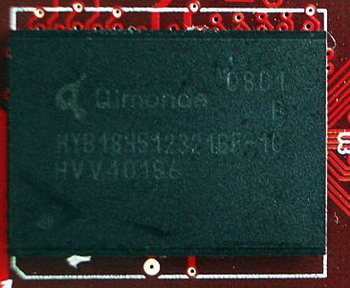

The radeon HD 4850 version with 512mb GDDR- 3 memory is equipped with eight memory microcircuits from qimonda production with 1.0 NS access time . Theoretically, it can work at frequencies more than 2000 MHz DDR.

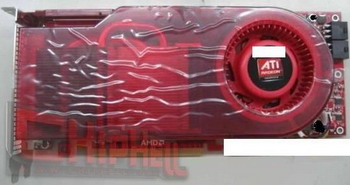

Here is the video card radeon HD 4870 with two-stage cooler ( standard design ).
Two thermal tubes and long radiator . There is no memory on the back PCB side . Related Products :
|
