POSTER: pc hardware news   ||   CORSAIR DHX XMS2 DOMINATOR TWIN2X2048-8888C4DF	DATE:2006-08-29

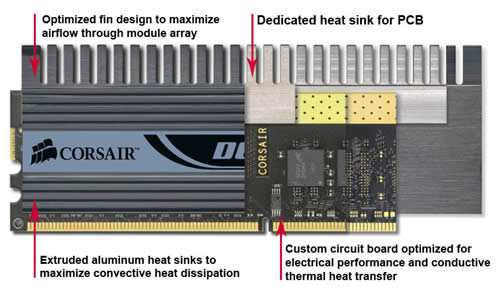

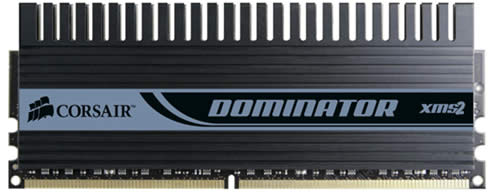

company Corsair  demonstrated   - memory modules  with the original radiators and the elongated printed-circuit board, which were blown out by the accompanying fans. Then   this memory  succeeded to work in  regime Ddr2-1224 with the timing value of 5-5-5-15. company Corsair yesterday announced the memory modules  series DHX XMS2 DOMINATOR, equipped with innovation cooling system Dual-path Heat Xchange (DHX). This technology is protected by patent, it proposes two basic ways of memory module cooling . The first way - traditional, it implies to heat removal from the memory microcircuits    with the aid of the aluminum radiators with the large surface area. The alternate path of the heat removal is more innovation. "this innovation way  removed heat- through contacts BGA- microcircuits into the printed-circuit board of the memory module   (PCB). During soldering of microcircuits BGA to the module of memory is formed completely metallic heat withdrawal directly from the internal part of the memory microcircuit   into the copper layer  grounding (ground plane) on the printed-circuit board. This way of heat withdrawal is very effective. Moreover, studies Micron Semiconductor (application note Tn-00-08) show that it is more than half of entire heat, isolated by the microcircuits of memory, it is removed precisely in this way. For the maximization of the effectiveness of this way in the heat removal was created the special printed-circuit board   . The height of this board was increased so that  would make the installation of this cooling special radiator  possible. This special cooling radiator ensures the removal of   heat, isolated by the microcircuits of memory, and removed through contacts BGA of microcircuit into the layer of grounding printed-circuit board ". now it become understandable, why the memory modules of this series has elongated printed-circuit boards.  for an additional increase in the cooling efficiency Corsair  proposes   three fans with a diameter of 40 mm, which hangs up to the modules of memory. This block has proper name - DOMINATOR Airflow. Producer asserts that work these fans sufficiently quietly due to the control system of the rotational speed. Which is interesting, Corsair  guaranteed safety  the operation of these modules of memory with the voltage of more than 2.5 v, what for the memory of  type Ddr-2 with its rating 1.8 v is theoperation   regime  is close to  extreme. The complete set of the memory modules    Twin2x2048-8888c4df with volume of 2 X of 1 Gb is capable to work in regime Ddr2-1111 with the timing value of  CL=4. the cost of this complete set  composes $600-650. if u Desire  a closer limit u can  purchase collection Twin2x2048-8500c5d, which ensures work in regime Ddr2-1066 with the timing value   CL=5. and cost from  $380 to $400. Both complete  memory sets   are compatible with the  NVIDIA standard EPP. For the  fans DOMINATOR Airflow it cost approximately $25. However, to collection Twin2x2048-8888c4df it is applied   for free. Related Products :
