EFI BIOS REVIEW MSI CLICK BIOS




EFI BIOS review MSI CLICK Bios
Posted:2008-10-27 By Other review
Number of View:119811




EFI BIOS REVIEW MSI CLICK BIOS



By :Other review

Posted:2008-10-27






xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source

EFI BIOS review MSI CLICK Bios

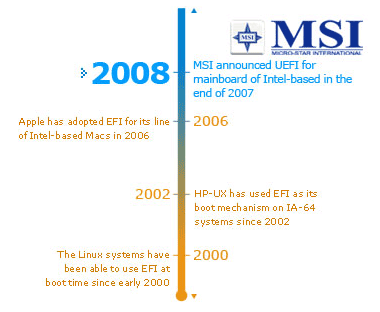

EFI (Extensible firmware interface , BIOS micro-code) development began in 9x years , in the beginning of 200x , Intel developer demonstrated the prototypes of computer systems, which work under EFI administration Now MSI, declared about three new motherboard, which are based on INTEL P45 express chipset , that obtained support to MSI click BIOS, which is based on UEFI specifications .

MSI click BIOS

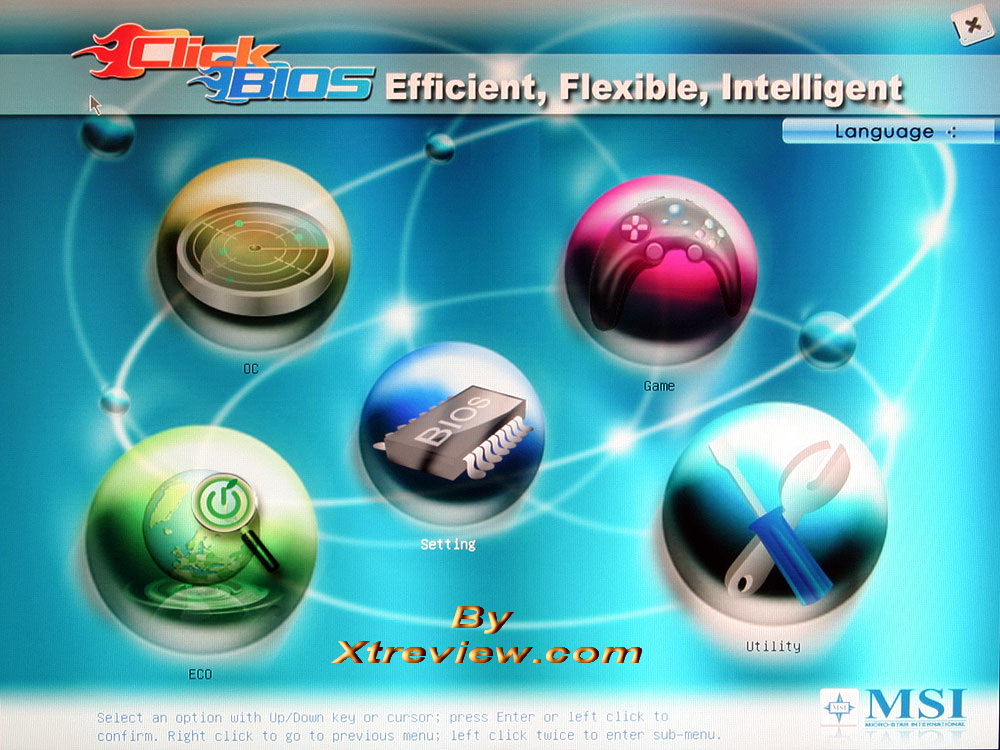

This bios will be very convenient in use (it has a multilanguage interface) it can be controlled by mouse and not only keyboard , different background color ......

MSI click BIOS

MSI click BIOS

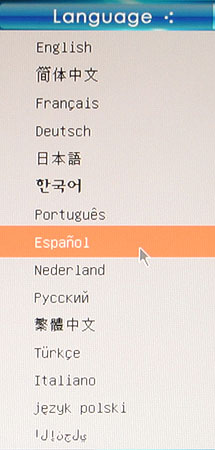

One of the main BIOS advantage is the ability to select texts on native or most familiar language.

MSI click BIOS language selection

The translation of BIOS is a good idea but it is always better to learn all those options on their native language .

Let s start from the OC (overclock) division .

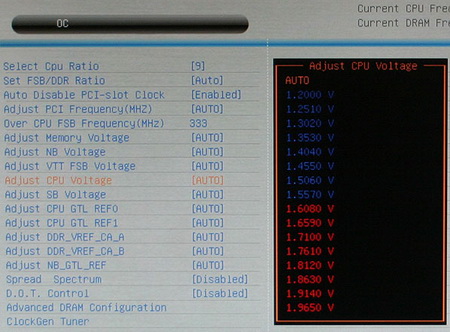

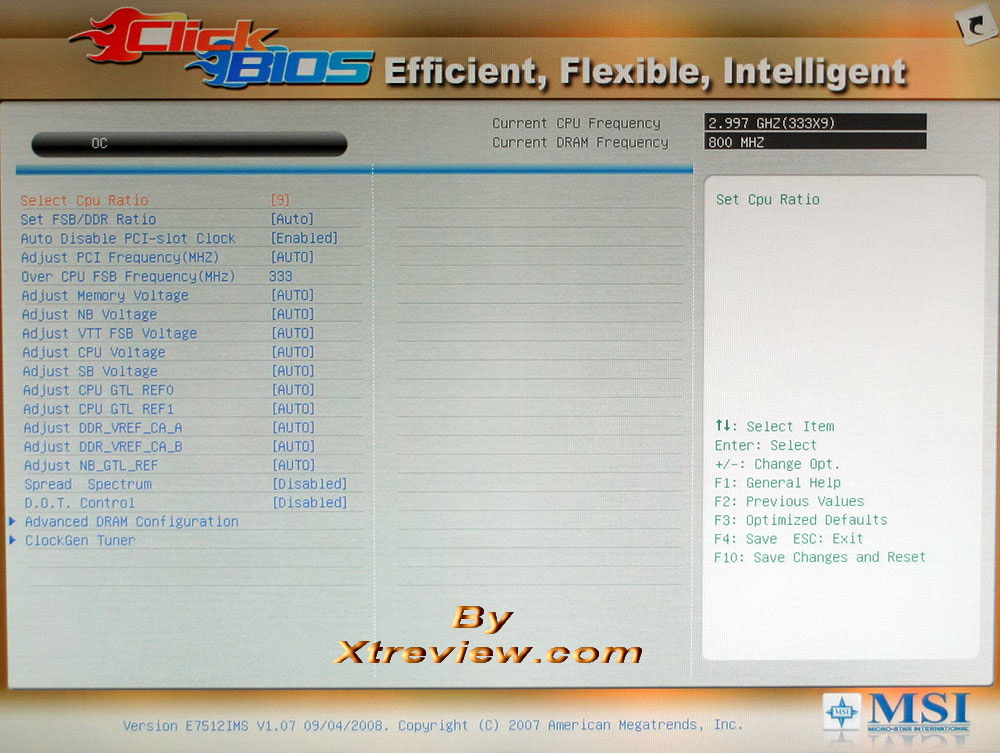

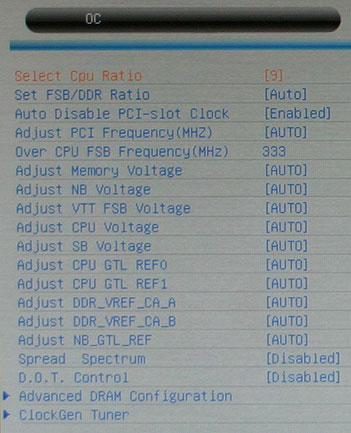

MSI click BIOS OC section

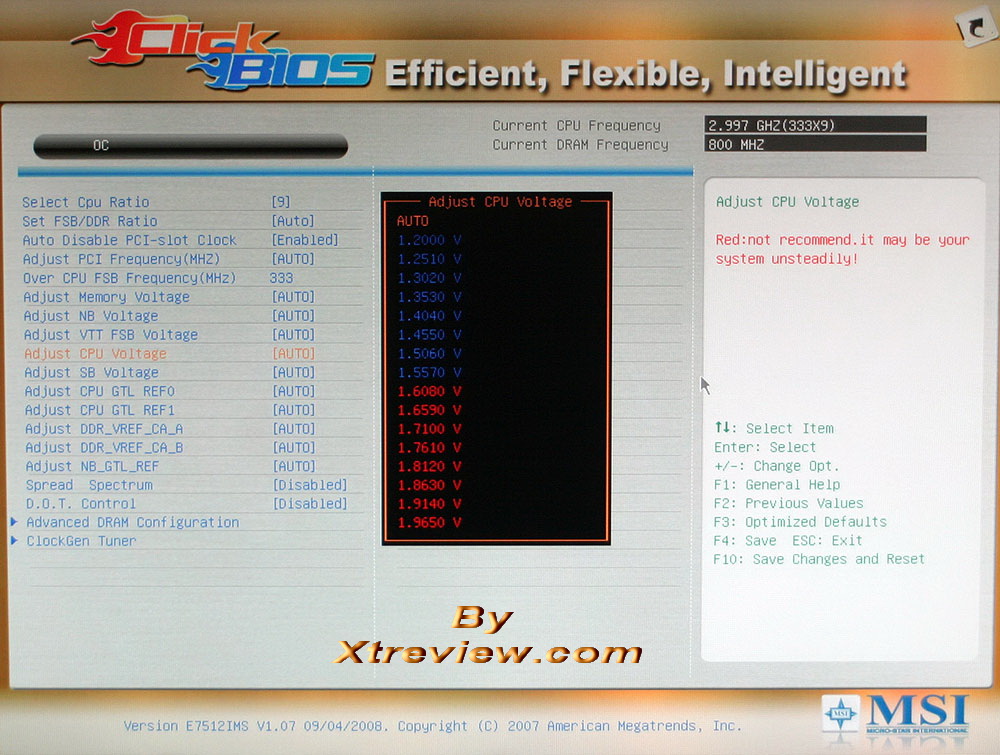

This part contains a complete set of overclock parameters . We can change frequencies, voltage and timing. The too overstated voltage are separated by the red color. Here, for example, the processor voltage selection :

MSI click BIOS OC section

The minimum voltage step change composes 0.051 v, AND this is a huge for contemporary processor. It is necessary to decrease the step at least to 0.025 v, or better to 0.0125 v. Currently many contemporary motherboard propose 0.00625 v as ideal voltage step!

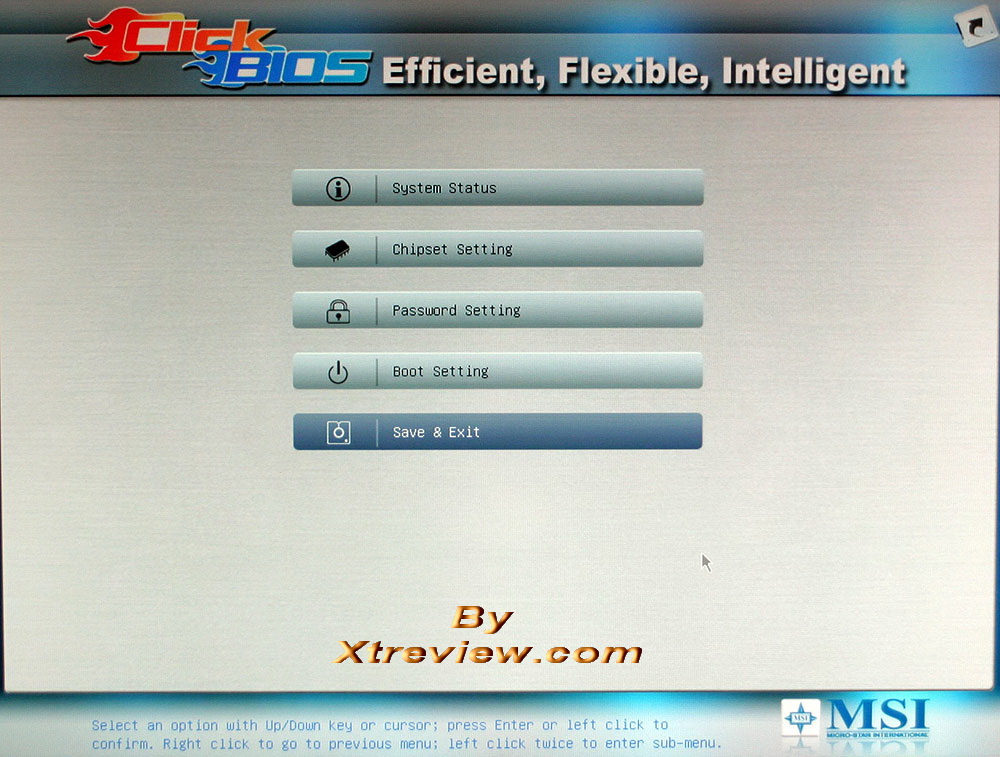

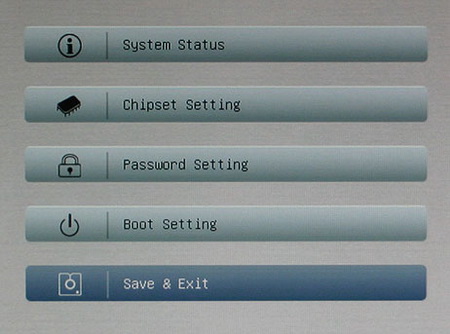

The setting division includes the remaining BIOS setting, it consists in several subsections:

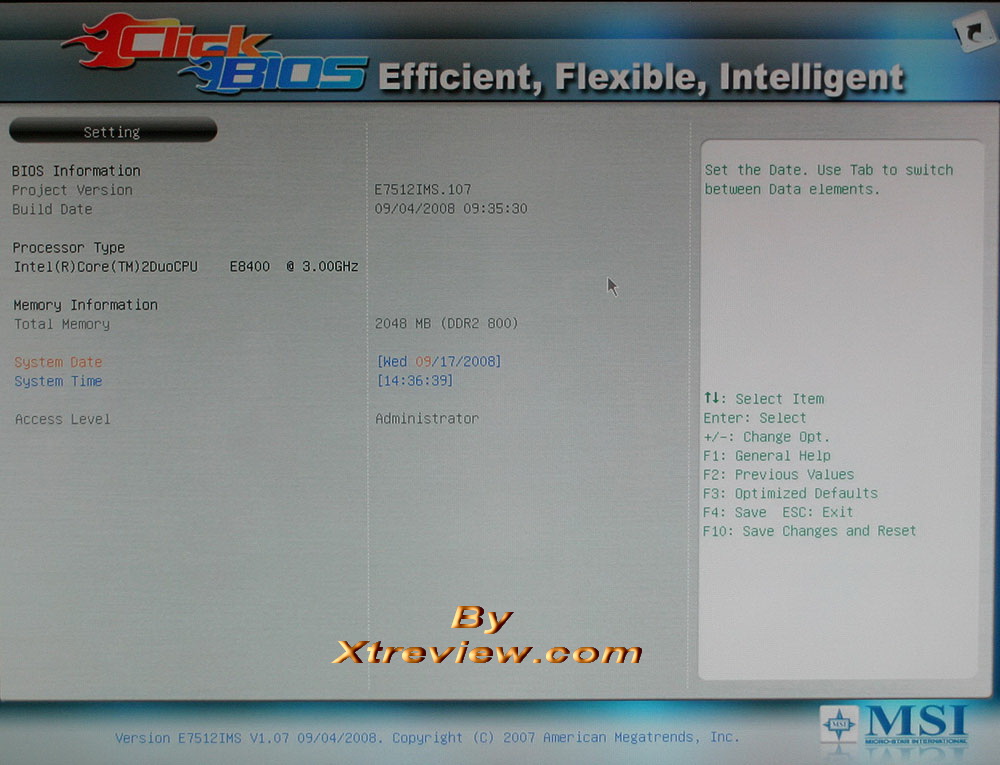

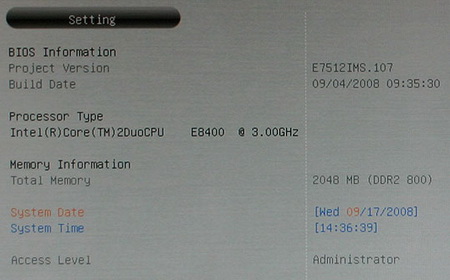

System status : this is not the analog of PC health status, but something average between Standard CMOS features and BIOS System information .

MSI click BIOS system status

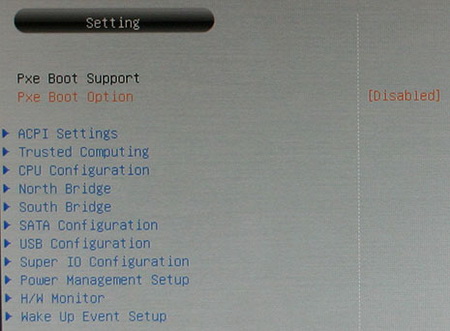

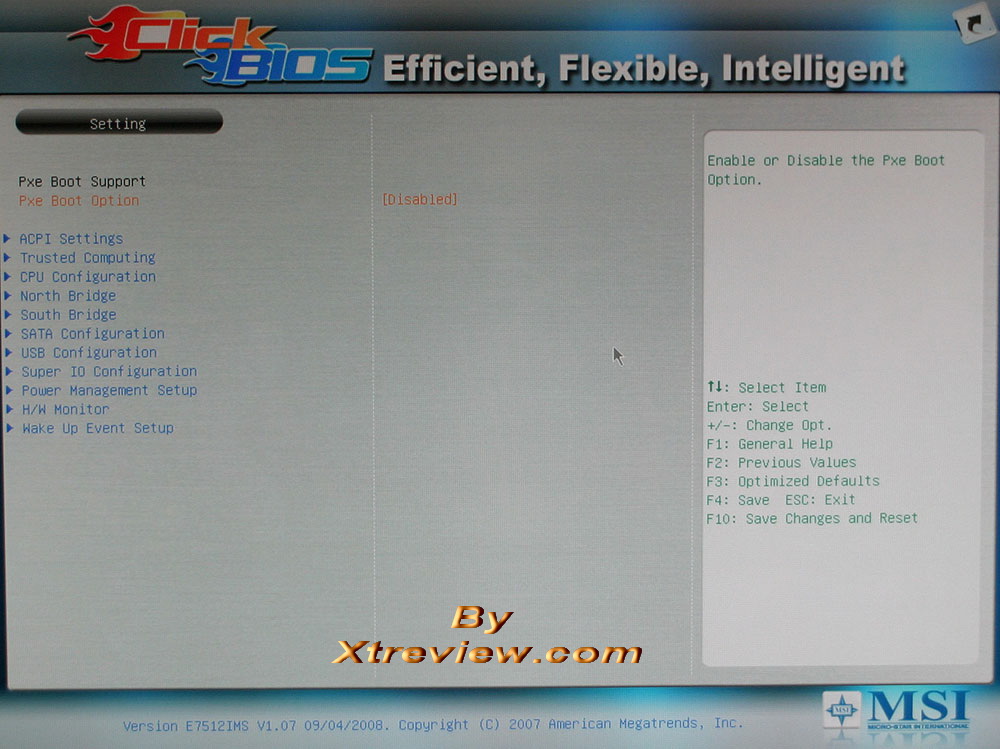

Page with information about Hardware monitor is located in the following subsection chipset setting .

MSI click BIOS hardware monitor

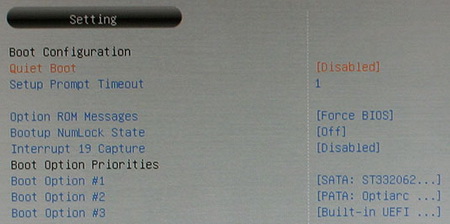

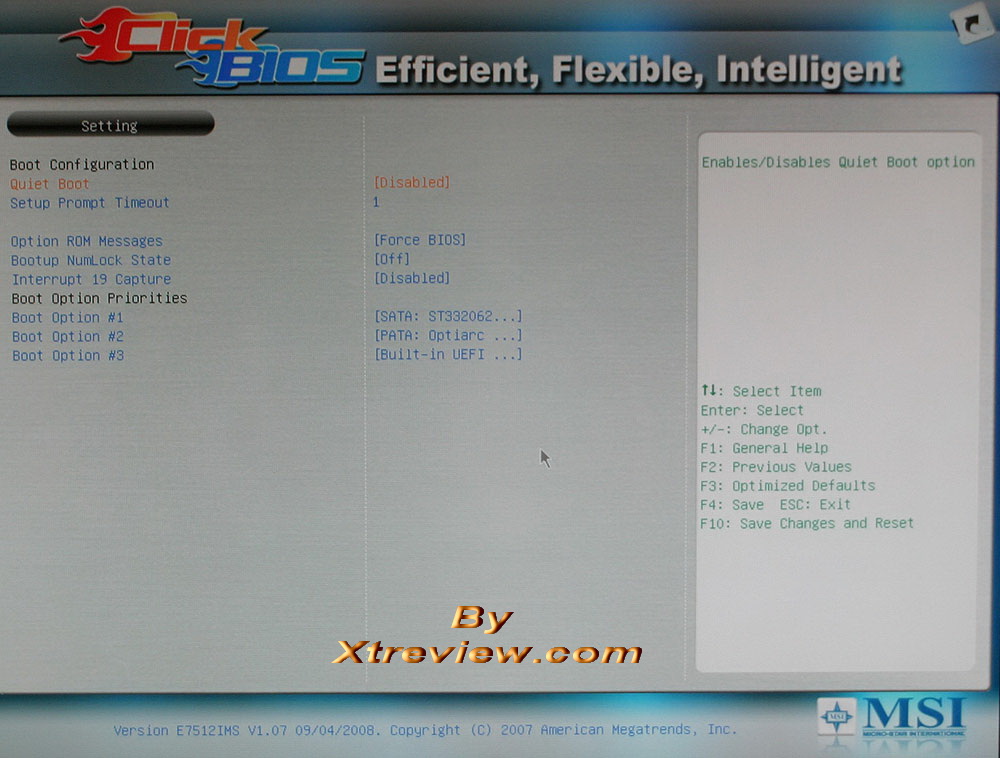

The subsection Of password setting allow to setup a user and administrator password , and Boot setting will help to select the order of boot able device.

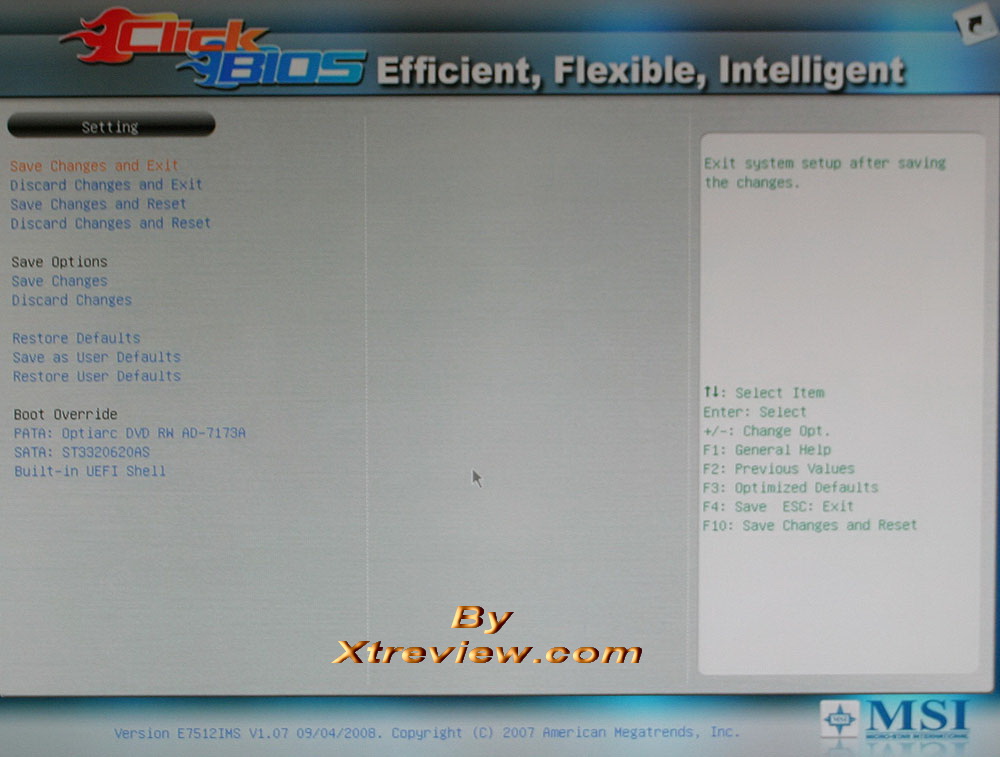

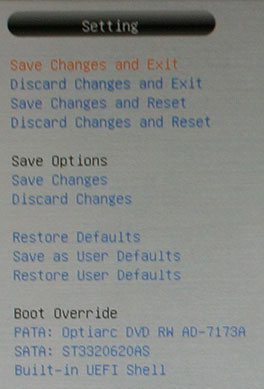

Here is the subsection save & exit . It is necessary to note that there is a possibility to save any setting in a profile. Currently there only one free available profile .

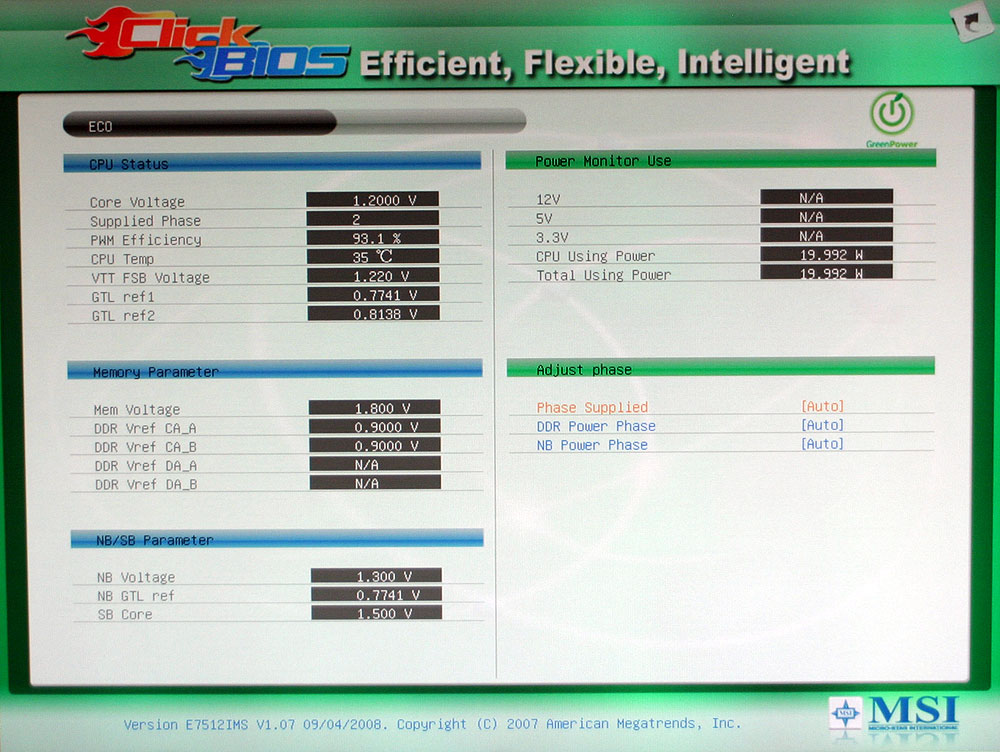

Here is the ECO division which resembles to the utility MSI Green-Power center . User can select the quantity of active phases for the processor , modules memory or north bridge power, or let the selection in the auto mode, In this case the motherboard will regulate the power depending on loads.

MSI click BIOS ECO division

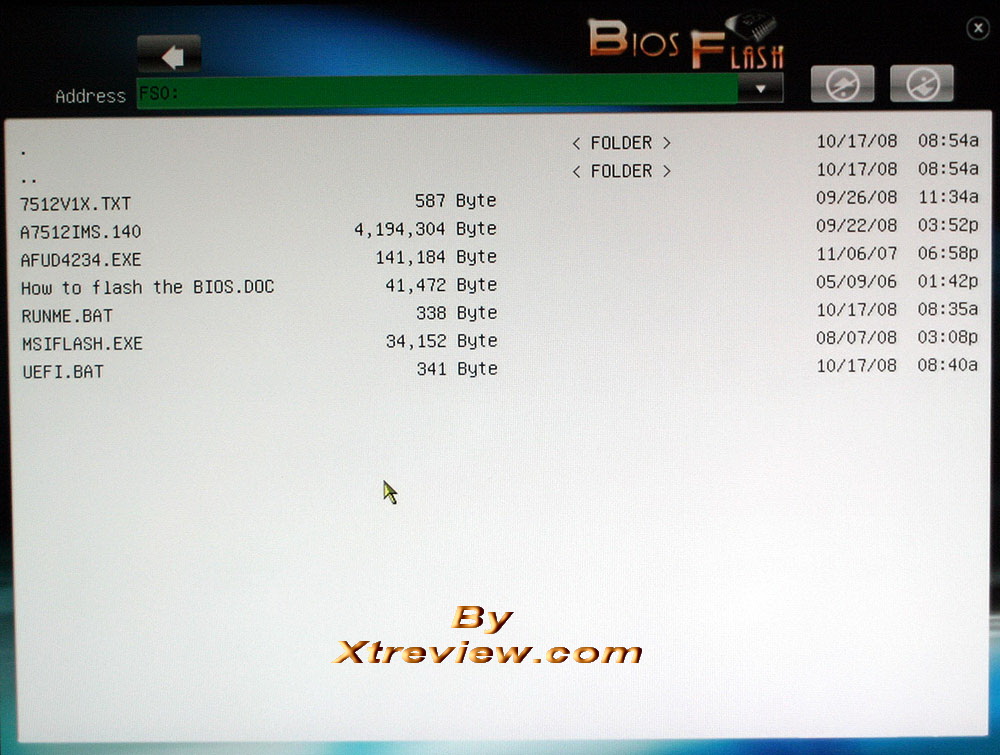

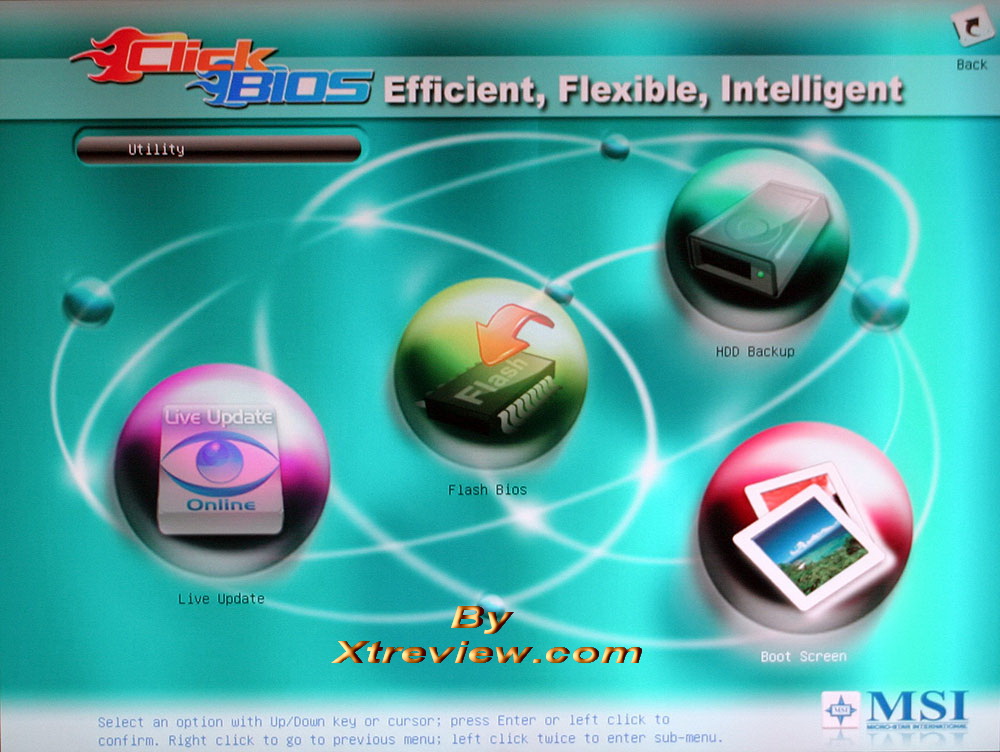

The division utility includes several programs: Live update, Flash BIOS, HDD backup and Boot screen.

MSI UEFI

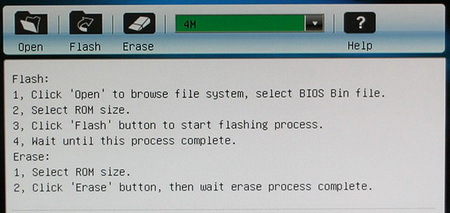

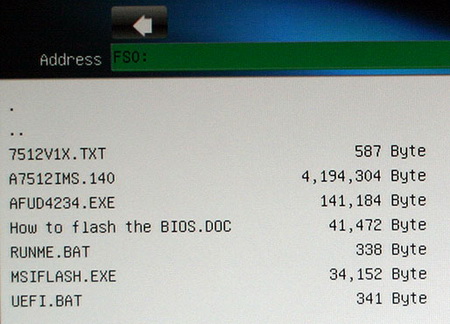

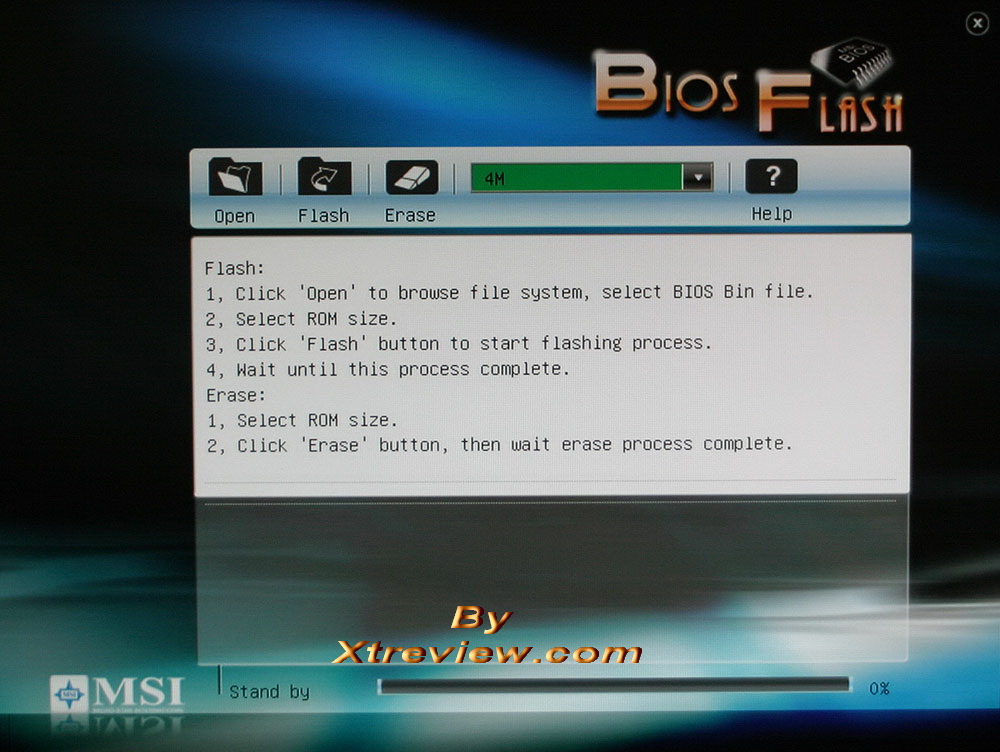

It is necessary to select the ROM size : in our case this is 4 MB..

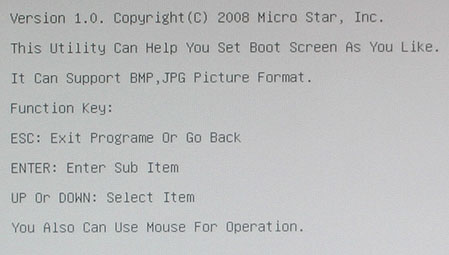

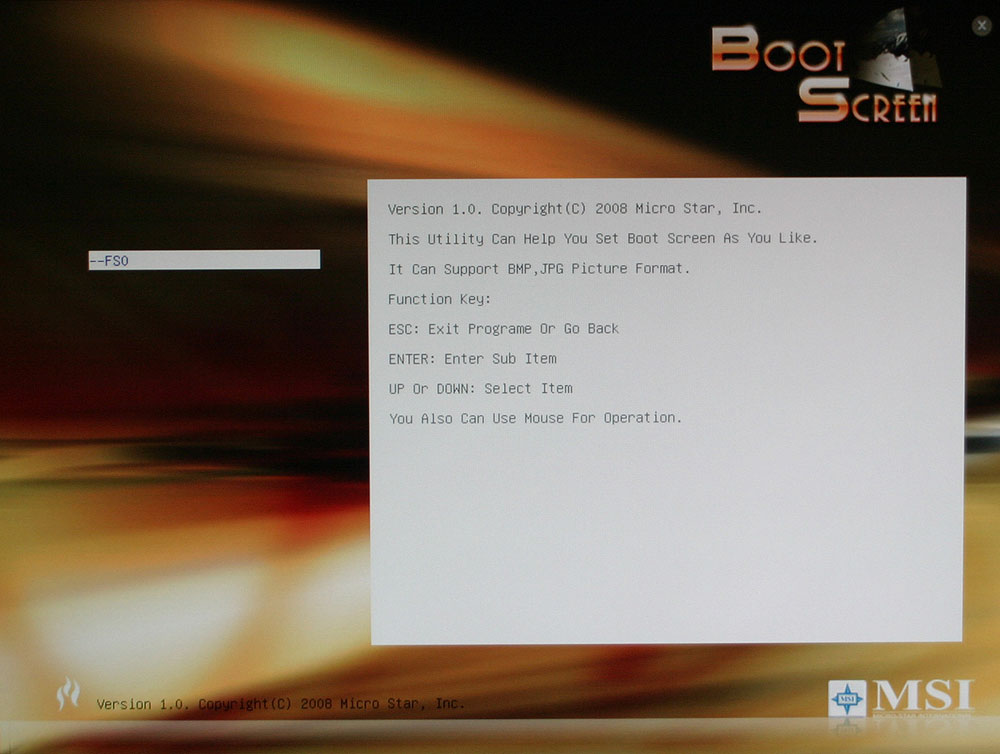

The utility boot screen with the aid of analogous file manager allow user to select picture ( BMP or JPG ) in order to use it as computer boot up logo.

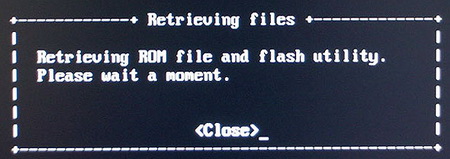

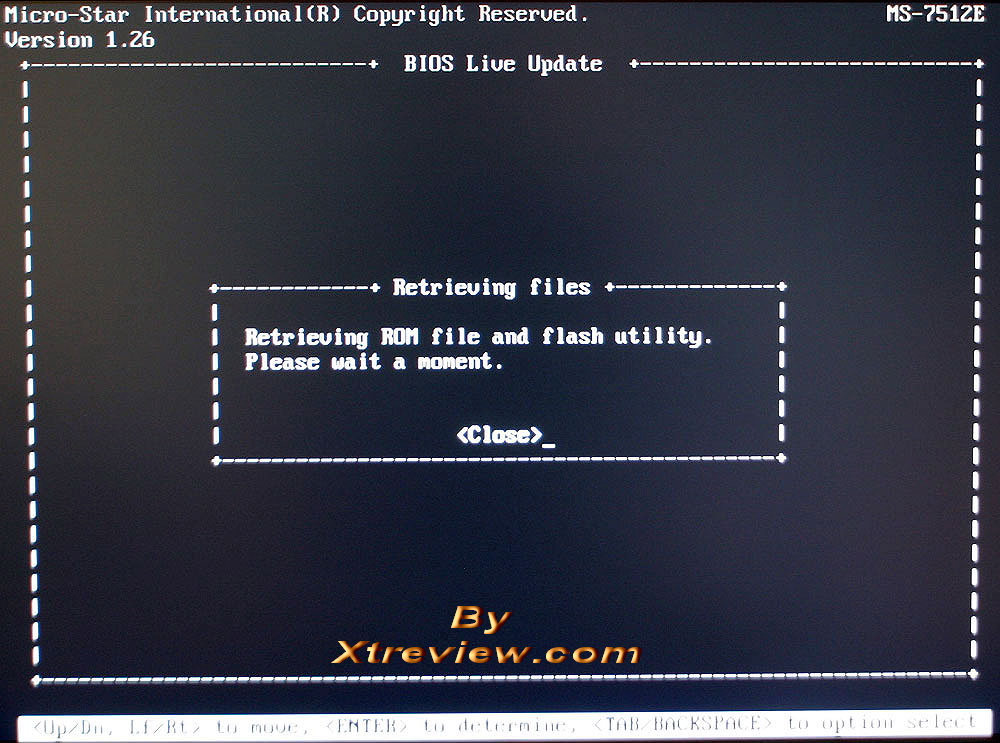

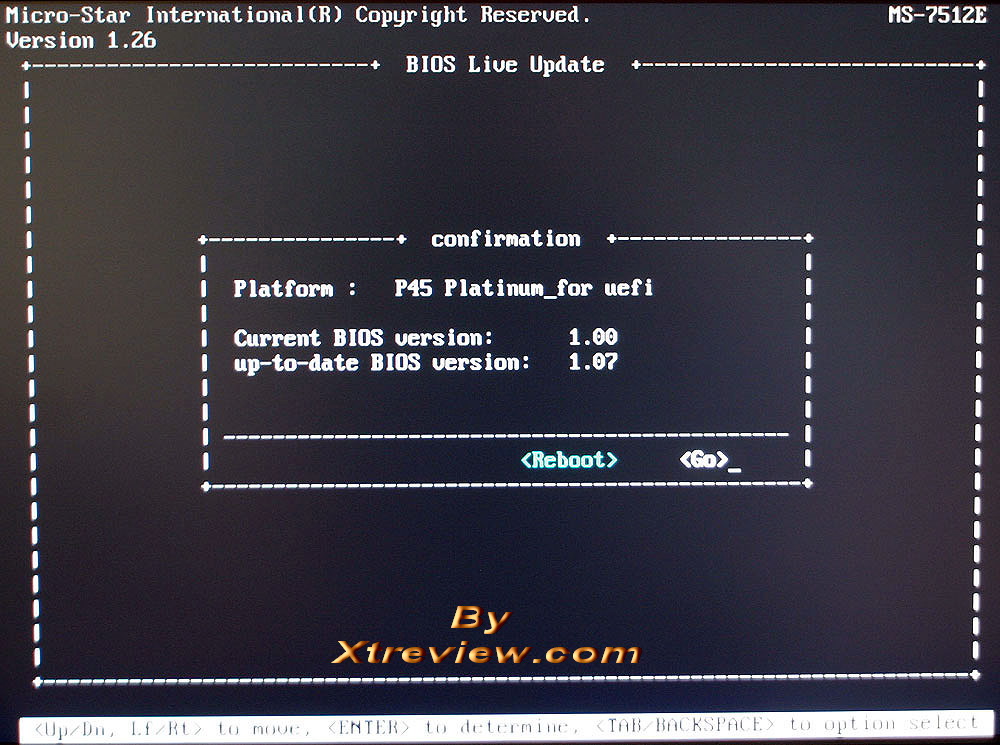

Live update will require the UEFI utility compact disc. It is possible to download not only new BIOS, but also CD with additional software MSI extras disc. This archive occupies approximately 45 MB.and unpacked its volume is equal to about 100 MB.

The utility live update has some bugs and hang out several times

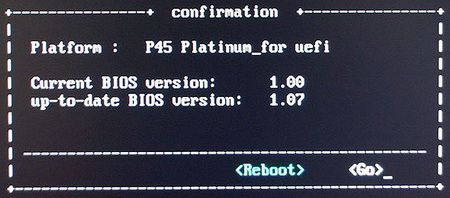

Update confirmation .

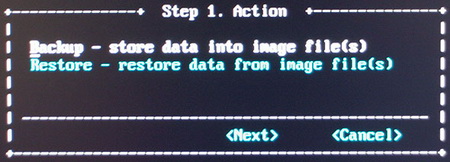

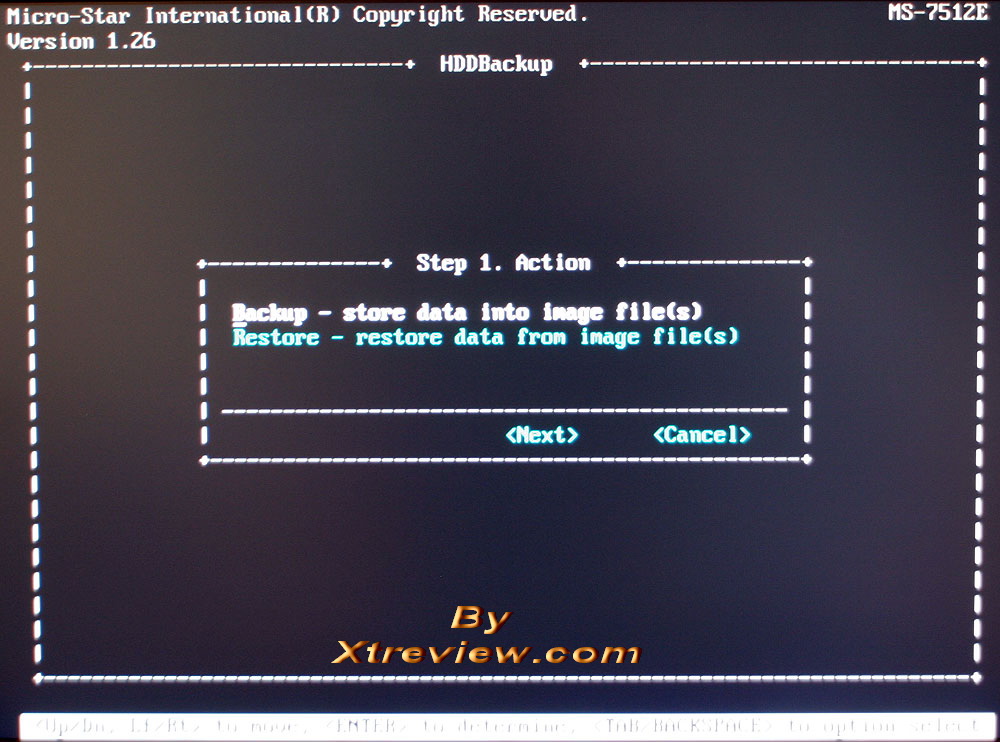

The utility HDD backup allow to make a reserve copy of any hard disk partition  ,if necessary , it will restore information. This utility work only with FAT, FAT32 or NTFS partitions.

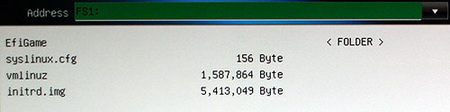

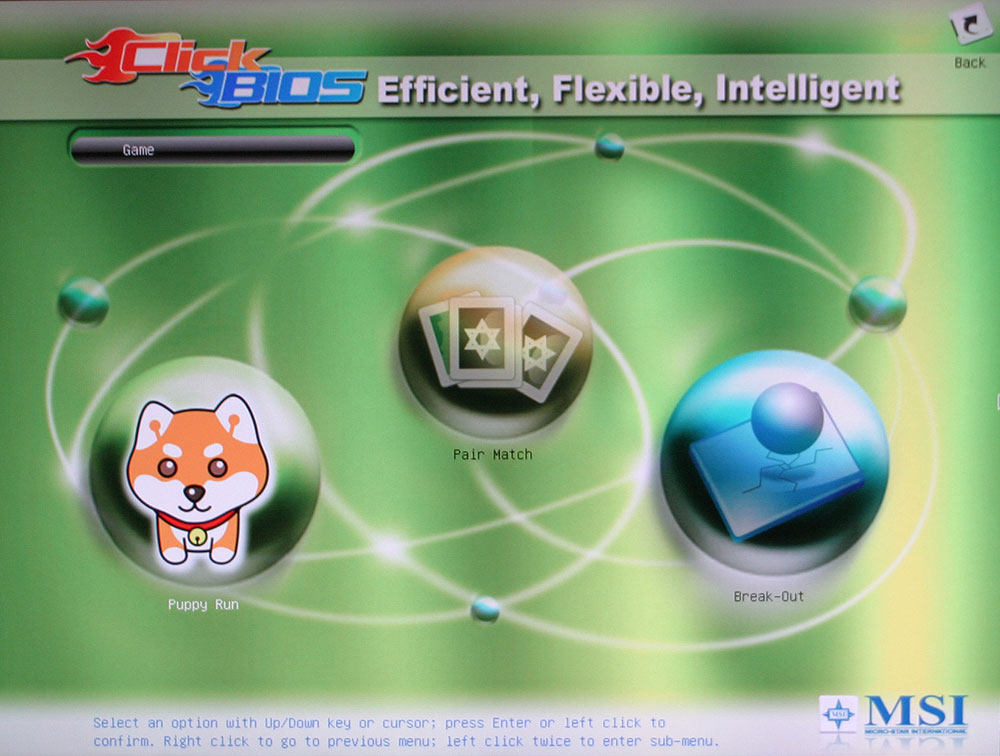

The division game was a disappointment. It contains only three games, which can be also found on additional CD: Puppy run, Pair match and Break-Out.

Now we checked all the possibilities of MSI click Bios. We was able to load the operating system Windows vista successfully, but the processor multiplier and voltage did not decrease in the rest state . The processor energy-economy technologies for some reason did not work.

Conclusion

Theoretically UEFI Bios is actually convenient method for mastery the BIOS possibilities , changing setting..... However, MSI click BIOS currently is only a beta development and it does not befit for the valuable capability . The BIOS update procedure is too complex for beginning user.

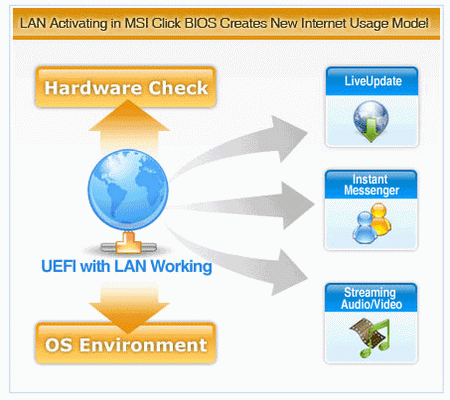

But here MSI report that all BUGS will be fixed and more software will be added as : online messenger , web browser .....

Moreover, MSI company intends to release some applications for advanced users, the list of useful programs will be enlarged with time.
