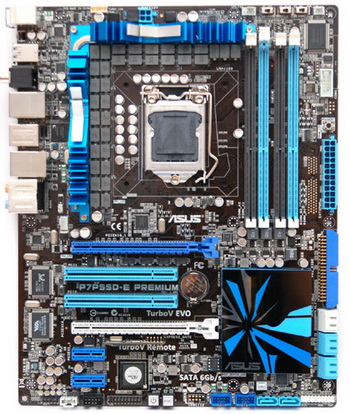

Asus, the leader of motherboard production top- level, always tries to inject the quite last technologies. This time we deal with Asus P7P55D- E premium. The first update is the support of USB 3.0 . It is realized due to the chip NEC D720200F1, which derives to the rear panel I/O two ports USB 3.0. On P7P55D- E premium there is a separate controller SATA-600, which will add to the six standard ports SATA-300 two additional ports with speed to 6 Gbit/s.
There are 48 phases power phase.
Asus P7P55D- e premium is based on Intel p55 express chipset, and the motherboard supports the processors Intel core i7/i5 with LGA 1156 socket. It supports DDR- 3 with up to 2200 MHz DDR frequency in the overclock regime , and the maximum possible volume reaches 16 Gb. There are two ports PCI express x16 for multi-chip video card configurations Moreover, the motherboard support both technology NVIDIA SLI and ATI crossFireX, which will work according to x8 + x8 diagram. Related Products :
|
