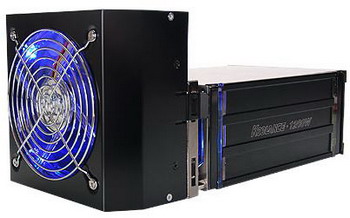

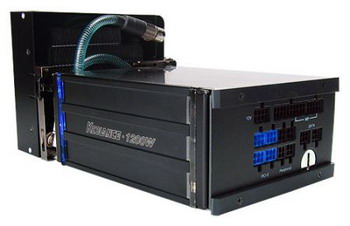

By power unit with a power of 1200 W in our day are not news ; therefore koolance company added to its new creation the PSU-1200ATX-12S with water cooling system (SVO). Taking in account that the declared by producer EFFICIENCY in 80%, SVO must remove to 240 W of heat. PSU is supplied with the already filled cooling liquid reservoir.
The radiator, cooled by 120- mm fan is placed in the limits of PSU case. Noise created by cooler is a bit high - from 25 to 33 dB, depending on the fan rotation speed, which in its turn depends on the radiator temperature . New power supply unit provides four lines +12 v general current power is 96 A. There is a detached module cables, support SLI and CrossFire (four pin connector for PCI express).
PSU-1200ATX-12S can be installed in any case of form factors ATX, E-ATX and BTX. basic obstacle of this PSU is its price witch is equal to 500 dollars.
Technical characteristics:
- Type: EPS12V
- Maximum power: 1200 W (peak - 1400 W) at temperature 40 °c, Active PFC (Power factor of more than 0,9)
- EFFICIENCY: more than 80%
- Connector: 1 x 24-pin (ATX), 2 x 4- pin (CPU), 4 x PCI-Express, 2 x 4- pin (periphery), 1 x 4- pin (floppy disk drive), 2 x SATA
- Maximum current for lines:
- +3,3V (30 A)
- +5V (30 A)
- +12V1, +12V2 (18 A)
- +12V3, +12V4 (30 A)
- Cooling: 120 mm fan
- Overall PSU sizes : 152 x 81 x 210 mm
- Overall radiator sizes : 172 x 141 x 105 mm
- Weight: 6,2 kg
