POSTER: computer news   ||   CONROE BSEL MOD 1333MHZ	DATE:2007-02-06

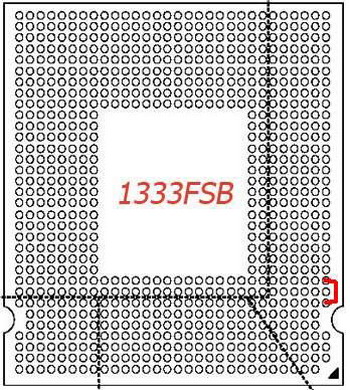

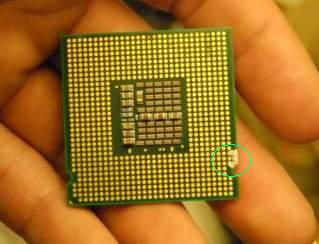

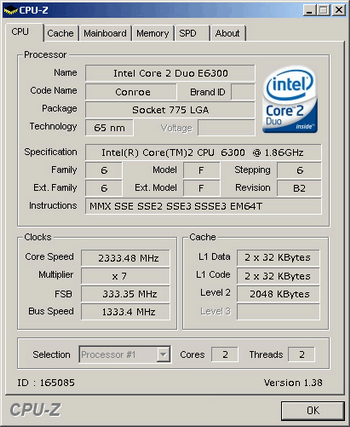

Our permanent readers for sure know that processors LGA 775 with the closing of contacts can get support to higher system bus, but also to run with the increased supply voltage.  It is known that the motherboards asus and Gigabyte can work with the soon released in the third quarter processors series core 2 Duo e6x50 with 1333 MHz system bus after BIOS update .But what If Gigabyte will introduce some unconvincing changes in the design of motherboard and Asus will be satisfied only by BIOS update . One of the active participants in forum xtremeSystems applied the so-called BSEL mod to processor core 2 Duo e6300 (1.86 GHz), which in the normal mode support only 1066 MHz system bus and has the maximum coefficient of 7x.  closing those designated in the figure by red contacts from the lower side of processor it was possible to make this processor with frequency of system bus 1333 MHz. Motherboard support processors with this system bus frequency it was already prepared with the aid of BIOS update . Here is the full-scale photograph of processor kentsfield after analogous modification: The author of experiment reports that for entire modification he spent 20-30 minutes. After modification the processor core 2 Duo e6300 found new default frequency - 2333 MHz :-). Naturally, it is possible to additionally increase the overclock in the system bus But as u see there is no special need for this hardware modification , since most motherboard can handle the frequency of system bus 333 MHz without problems. Four core processor kentsfield also passed this modification successfully; however, as a whole their system bus overclock is more complex . Related Products :

	xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source

Xtreview Support N-Post:xxxx Xtreview Support	CONROE BSEL MOD 1333MHZ
	Please Feel Free to write any Comment; Thanks

XT Future Member N-Post:	CONROE BSEL MOD 1333MHZ

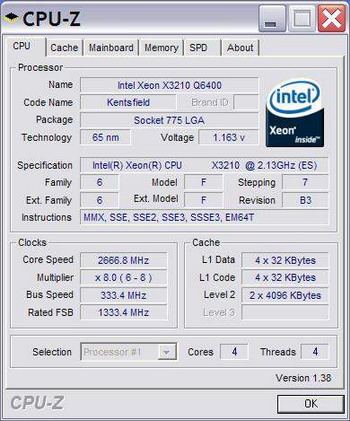

	Q6600 kentsfield revision B3 stepping 7 new speed is now 3.000 Ghtz multiplier BUS 1333 multiplier X9 . Now this is awesome!

XT Future Member N-Post:	CONROE BSEL MOD 1333MHZ
	May work on my Q6600 too ?

XT Future Member N-Post:	CONROE BSEL MOD 1333MHZ
	umm... isn\'t the first picture (the diagram) a mirror image of the second picture (the photo). Either the guy is lying (which does not seem to be the case based on his CPU-Z proof) or the diagram is wrong. The connected pins should be on the opposite side. (note the arrow on the bottom right of the diagram, and the same arrow on the bottom left of the photo.) makes you go hmmmm... ;) -rent

XT Future Member N-Post:	CONROE BSEL MOD 1333MHZ
	The picture is backwards from the BSEL chart above it. Look at the arrow in bottom right hand corner, shouldn\'t that be on the left side of cpu unless your viewing it from the top?
