POSTER: computer news   ||   8800GTS 320MB OVERCLOCKING	DATE:2007-02-13

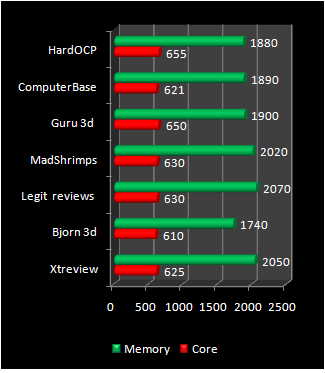

We should recognize that the version Of geForce 8800 GTS with 320 MB  memory type GDDR- E is long-awaited product , but only from the positions of the relatively low price - for the first time graphical solution with the support Of directX 10 on the base of the rapid video chip g80 , proposed for $299. As far as the speed level is concerned, it was sufficient to remove from the previous version geForce 8800 GTS with 640 MB memory , 320 MB and then we will get the new card . It is pretty logical that in heavy graphic regimes in contemporary games the lower memory volume will appear from the negative side. We already published the pleasant characteristic Of geForce 8800 GTS 320 MB. witch was the price. It is known that in western retail this video card will be proposed on price $299, in this case the cost of 640 MB version was reduced to $350. Let us note one additional difference between video cards: version with 320 MB memory is equipped with microcircuits GDDR- E from  hynix production  , whereas version with 640 MB memory uses microcircuits from samsung production  . It is necessary to add that the overclocking potential remain the same, since in the cases of cheap version geForce 8800 GTS we  succeeded to overclock the memory to frequencies more than 2000 MHz DDR . Let us recall that the regular frequencies of video card are equal to 500/1600 MHz, the shader block of video chip operates at frequency 1200 MHz. Here some overclocking stats:   Xtreview - > 625/2050 MHz Bjorn 3d - > 610/1740 MHz; Legit  reviews - > 630/2070 MHz; MadShrimps - > 630/2020 MHz; Guru 3d - > 650/1900 MHz, 700/2000 MHz; ComputerBase - > 621/1890 MHz; HardOCP - > 655/1880 MHz. those Statistics give to understand, how is possible to overclock video card geForce 8800 GTS with 320 MB memory. The video card producers proposed the overclocked versions of this video card: XFX - > 560/1700 MHz, 580/1800 MHz; BFG - > 540/1600 MHz; EVGA - > 576/1700 MHz; Gainward - > 550/1760 MHz; MSI - > 575/1700 MHz; Foxconn - > 575/1800 MHz; Sparkle - > 580/1780 MHz. The shader block of video chip usually overclock from 1200 MHz to 1350 MHz. Price increase after overclock usually is in the range $10-50. Sparkle company already equipped appropriate video card series caliber with cooling system on the base of Peltiers module. The memory volume is required for the owners of monitors with the diagonal more than 20 inch; that play game with resolution more than 1600 X 1200 or 1920 X 1200 with the maximum quality. Other can be satisfied by the speed level  , ensured by video geForce 8800 GTS with 320 MB memory. Related Products :

	xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source

Xtreview Support N-Post:xxxx Xtreview Support	8800GTS 320MB OVERCLOCKING
	Please Feel Free to write any Comment; Thanks

XT Future Member N-Post:

8800GTS 320MB OVERCLOCKING

Nice reference.. But I think some of the clocks should be sorted a bit better. Since most the bioses don\'t handle complex clock calculations and the 8800GTS 320MB G80 cards are based on a 27Mhz crystal and if clock speeds are not evenly divisable by 27 then they will more then likely get rounded. eg: GPU: 650 -> 648 or 675 Shader: 1500 -> 1485 or 1512 Memory 2050: -> 2025 or 2052 Using a TwinTech 8800GTS 320MB a stable OC for me: GPU: 648Mhz Shader: 1512Mhz Memory: 945Mhz Fan Control: 75% (Advertised speed was 500/1200/1600/60%) Using a Inno3D 8800GTS 320MB OC Edition a stable OC for me: GPU: 648Mhz Shader: 1512Mhz Memory: 972Mhz Fan Control: 75% (Advertised speed was 570/1200/1800/60%) Both cards OC\'d completed successfully 3D Mark 06 set to loop each test 100 times. Both cards Scored the same on a single run test. 10435 (Weak point of the system they ran on was an AMD 6000 x2 @ stock 3Ghz, 2GB of DDR2 800 4-4-4-12, Gigabyte Mobo) Now it\'s time to see what these OLD cards can do in Sli....
