A pair of days ago we published the photographs with the fragments of motherboard which was based on the future high performance chipset intel p35 express (Bearlake). Now associate not only provide the complete motherboard photographs but also reported its complete name and more detailed technical specifications.

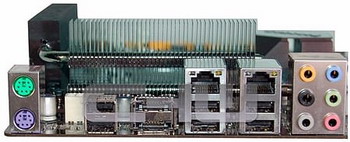

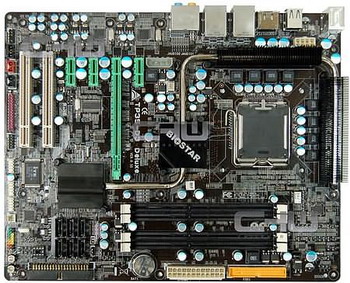

Specification Of biostar TP35D 3- A7 deluxe:
- Processors: Socket LGA 775 Intel core 2 Quad/Core 2 Duo/celeron 400 Series
- Form factor: ATX
- Chipset: Intel p35 + ICH9R
- FSB 1333 MHz
- Memory: DDR3 800/1066 MHz, 4 x DDR3 DIMM up to 8GB
- Expansion cards : 1 x PCI- E x16, 3 x PCI- E x1, 2 x PCI
- Sound: 8+2 HD- codec
- Ports: 12 x USB 2.0, 2 x e-Sata II, 6 x SATA- II (RAID)
- Network: 2 X GB LAN
Besides model TP35D 3- A7 deluxe, Biostar prepared one additional motherboard on this chipset : TP35D 2A7.

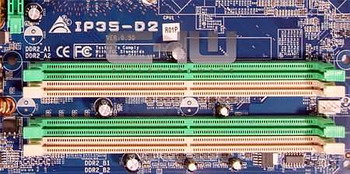

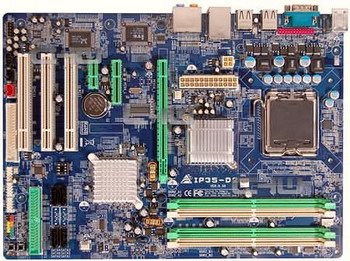

Biostar TP35D - 2A7 Specification :
- Processors: Socket LGA 775 Intel core 2 Quad/Core 2 Duo/celeron 400 Series
- Form factor: ATX
- Chipset: Intel p35 + ICH9
- FSB 1333 MHz
- Memory: DDR2 667/800 MHz, 4 x DDR3 DIMM up to 8GB
- Expansion cards : 1 x PCI- E x16, 1 x PCI- E x4, 1 x PCI- E x1, 3 x PCI
- Sound: 8+2 HD- codec
- Ports: 12 x USB 2.0, 4 x SATA- II
- Network: GB LAN
