EPoX company usually presents new motherboard on fresh chipsets (and their versions). Its version based on AMD 690G was showed even during December : and was called EP-AT690G pro, and now it already present motherboard on chipset NVIDIA MCP68 : EP-AP68P/G.

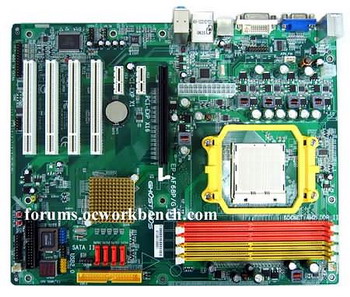

EP-AP68P/G. has standard size ATX with 4- power phase , it is equipped with four ports (which is noticeably higher than usual) for installation of PCI- devices, two port for PCI- E x1 and one PCI- E x16 for video card installation .
EP-AP68P/G is designed for work with processors AMD AM2, memory DDR2 533/667/800 MHz (4 slots memory) by total volume up to 16 Gb. Also on the motherboard there are DVI- D and D -sub, but here HDMI is absent.
Chipset includes built-in video geForce 7050, which support directx 9.0C Shader model 3.0. This integrated video card has as max resolution 1920x1440 with 75 Hz. The technology NVIDIA pureVideo is supported in MCP68 : it is decoded by HD- video in format h.264.
The remaining parameters of this motherboard are similar to those that was seen in predecessor chipset (GeForce 6150): 4 ports SATA- II, one channel IDE- devices, support RAID 0,1,0+1,5 and JBOD and 12 ports USB 2.0. Sound 6-channel HD- codec. Related Products :
|
