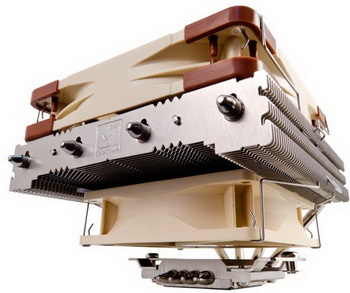

The Austrian company Noctua this week introduced a new CPU cooler, which is due to its moderate height suitable for use in low-profile cases. The height of the radiator without fan is 66 mm. The appearance of regular fan on the heatsink 120 x 120 x 25 mm increases the height of construction up to 93 mm .

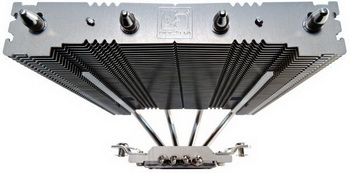

The layout of radiator is quite traditional - from nickel-plated copper base depart four C-shaped heatpipes, they pierce the aluminum fins attached and soldered to them.
Fans used, NF-F12, and NF-B9 support the function of speed control according to the method of pulse-width modulation. This parameter can be changed automatically from 300 to 1500 or 1600 r / min, depending on the model of the fan. Special adapters allow to reduce speed to 1200-1300 r / min. In this case, the noise level when using both fans do not exceed 18.6 dBA, while the maximum value of this parameter is equal to 22.4 dB.
Complete with fan heatsink weight 680 g without them - 415g -cooled processors TDP level is limited to 95 watts. Mounting system provides compatibility with motherboards LGA 775/1155/1156/1366/2011, Socket AM2/AM2 + / AM3/AM3 + / FM1. The cooler is equipped with thermal compound Noctua NT-H1. The cost of NH-L12 is 49.9 euros, or $ 59.9, depending on the region. Related Products :
|
