Today appeared the photographs of four motherboard Gigabyte, based on chipset Intel Z77 and designed for Intel Core second and third generation. Solutions are called GA-Z77X-UD5H, GA-Z77X-UD3H, G1.Sniper 3 and G1.Sniper M3, and will be officially presented at the beginning of April.

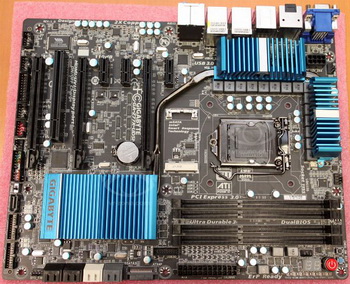

The motherboard power system GA-Z77X-UD5H use 12 + 3 phase, for cooling the power components , connected by a heat pipe. There are four slots for RAM, dual-slot PCI Express 3.0 x16 (8 + 8 lines), one slot PCI Express 2.0 x4 ( PCI Express x16 constructively), three-slot PCI Express x1 and one PCI. There are five ports SATA 6 Gb / s, four ports SATA 3 Gbit / s and a connector mSATA.

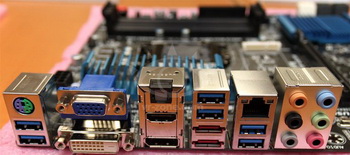

The I / O panel has four video outputs (one each), four ports USB 3.0, two ports USB 2.0, one connector FireWire, port eSATA, two LAN connectors and a set of audio connectors:

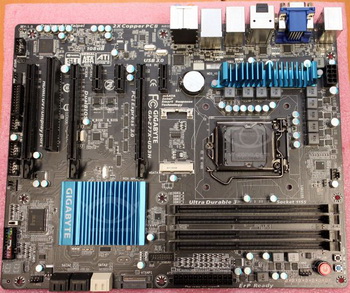

The motherboard GA-Z77X-UD3H is greatly simplified version of older relatives: redesigned VRM, a very rickety radiator, and the circuit board itself looks pretty poor. The combination of slots remains the same, but three additional ports SATA 6 Gb / s disappeared.

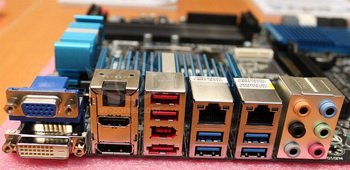

The rear panel hosts six ports USB 3.0, PS / 2 port, two ports eSATA, LAN and a set of audio jacks.

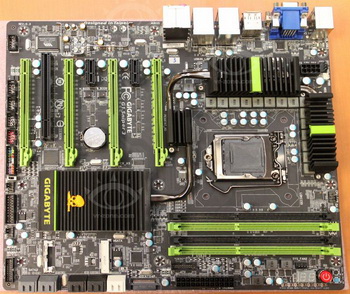

The port G1.Sniper 3 is a chip-to-switch PLX PEX, which provides an additional 16 lines PCI Express. Slots for graphics cards are interspersed with two connectors PCI Express x1 and one PCI. There are six SATA 6 Gb / s, four SATA 3Gb / s, and socket mSATA moved to the lower right corner.

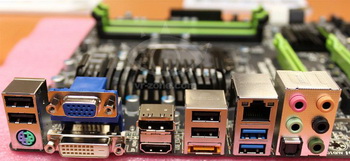

I / O panel looks at the relatively modest.

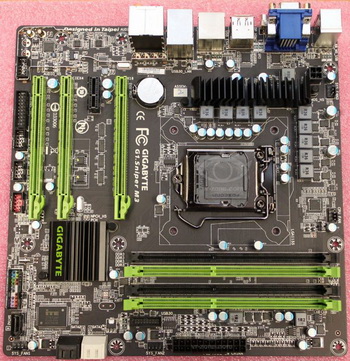

For small gaming machines Gigabyte offers a smaller format Micro-ATX version G1.Sniper 3 - G1.Sniper M3 .

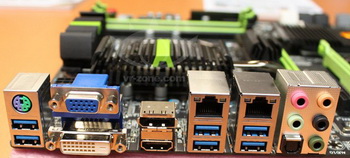

There is only two ports USB 3.0, four-port USB 2.0, video output, a port eSATA, LAN and audio.
