Prior to the official premiere of server processors generation Haswell still a lot of time, but associates already report information that reveals details of future decisions.

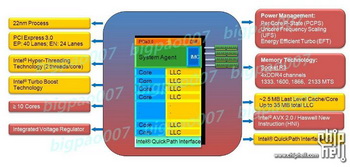

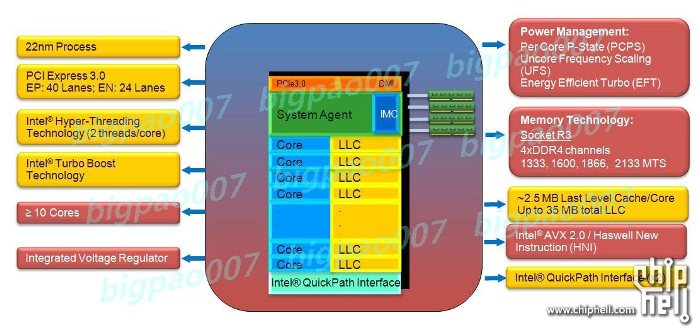

The crystal of CPU will be manufactured on 22 nm technology. The processor contains up to 35 MB cache in the third level at each processing core will fall up to 2.5 MB of cache, which indicates that 14 cores in the older models, Haswell-EP (and not less than 10 in minors). The new four-channel memory controller support DDR4 standard, also the instruction set AVX 2.0, and something called Haswell New Instruction.
Processors will maintain support to 40 lines PCI Express 3.0 (24 lines in the Haswell-EN), two channels QPI bus, Hyper-Threading Technology, and Turbo Boost. For the optimization of energy consumption will be responsible integrated VRM controller .

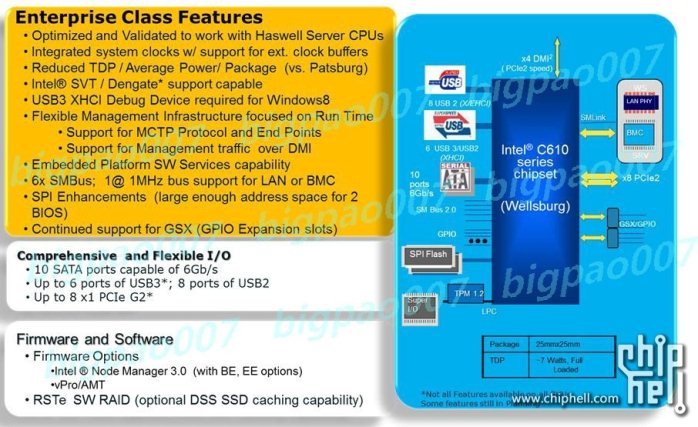

The chipset is C610, also known under the code name Wellsburg. The device supports up to ten SATA ports with a throughput of 6 Gb / s and up to six ports USB 3.0. In this case power consumption is reduced in comparison with the chipset C600 (Patsburg). Related Products :
|
