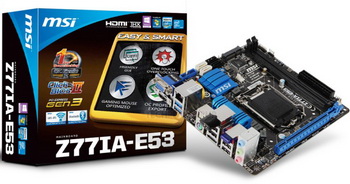

MSI released motherboard size Mini-ITX, which is based on chipset Intel Z77. The solution may be a good base for a compact PC that can handle not only office tasks, but also modern computer games.

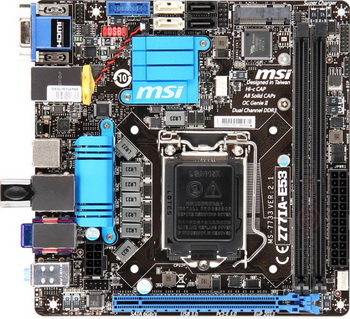

Z77IA-E53 is equipped 7 converter voltage regulator, power is supplied through one Octal socket EPS and standard 24-pin ATX. There are two slots for memory (the maximum total amount - 16 GB), and a single slot PCI Express 3.0 x16, designed for discrete graphics cards.
There are two SATA ports with a capacity of 6 and 3 Gb / s, as well as a connector eSATA 3 Gb / s. The chipset implemented four-port USB 3.0, two of which are displayed on the I / O panel, and the rest are available in a needle connector. The motherboard has a Adapter Wi-Fi, Ethernet, Bluetooth, HDMI video output and VGA, PS / 2 and audio jacks. Related Products :
|
