Graphics generation Southern Islands, which are known as Radeon HD 7xxx with GCN architecture debut took place in the last days of last year.
These pictures in acceptable quality were made public at a conference Hot Chips. Images are only of academic interest and are unlikely to help establish the truth in the eternal debate about the best graphics solution.

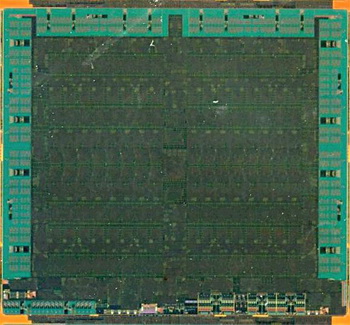

So, the above picture shows the die Tahiti (Radeon HD 79xx). Here you can clearly consider the memory controller and cache in the second level in the three edges chip and individual computing units (Compute Unit) in the center and core logic (controller interface PCI Express, a video decoder, etc.) at the bottom edge.

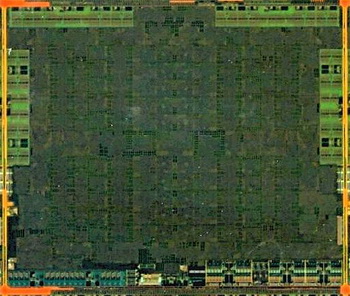

Processor Pitcrain (Radeon HD 78xx) less than its older alternative, which, in general, is not surprising.

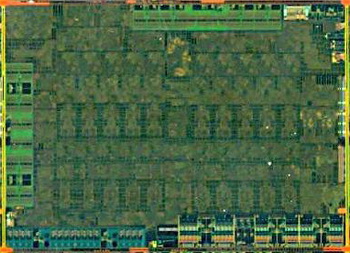

The youngest was crystal Cape Verde, which is used in VGA Radeon HD 77xx.
