POSTER: computer news || GIGABYTE P35-DS3R VS ASUS P5K |
DATE:2007-05-15 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

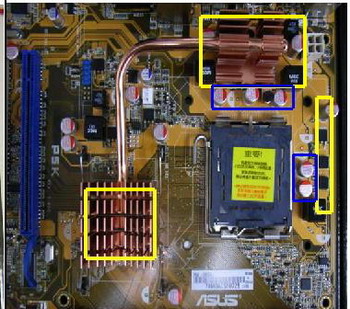

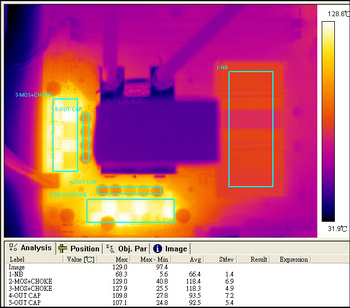

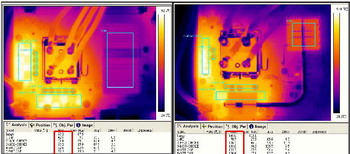

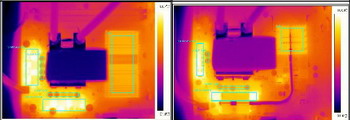

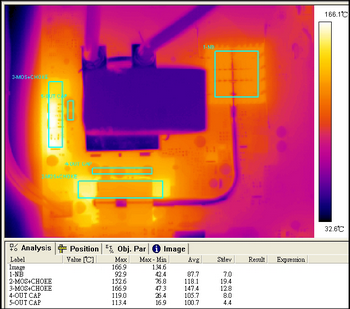

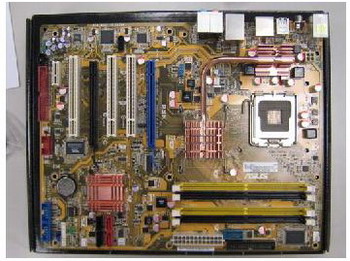

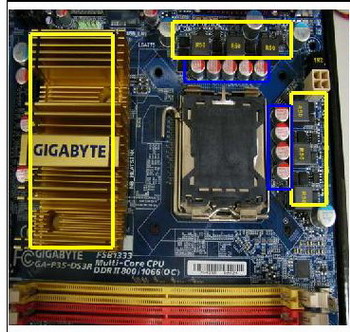

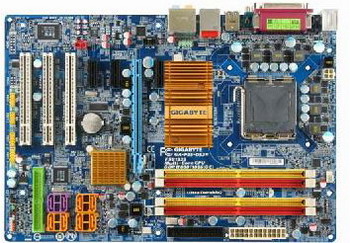

GIGABYTE P35-DS3R 1.0 vs ASUS P5K Thermal Test Report GIGABYTE P35-DS3R ASUS P5K Test equipment: CPU: Smithfield 840-XE FSB: 800MHz 3.2GHz DDR2: Kingmax DDR2 800MHz 512MB*4 Display card: GV-NX73G128D-RH Test items: 1.CPU power temperature comparison: a. CPU 70A loading test b. 3D mark 2006 test c. P4 max power 100% test 2. VCC1_5 & DDR18V POWER &VCC1_05 temperature comparison: a. 3D mark 2006 test GIGABYTE P35-DS3R rev 1.0 (Ultra Durable 2): Design with 6 phase PWM + 18 MOSFET. Low Rds(on) MOSFET, Ferrite core choke, all Japanese made solid capacitors. Asus P5K: Design with 3 phase PWM + 9 ordinary MOSFET only, non-Japanese solid capacitors. Measurement Result: 6 phase power design is better than 3 phase power, the extra 3 phase results in much lower temperature. GIGABYTE P35-DS3R rev:1.0 VCORE is using 6 phase desingn, its goal is to increase efficiency especially in heavy loading. When use Pentium (Extreme Edition) CPU like 840XE Smithfield, thermal performance is much better than 3 phase design P5K (P35-DS3R has lower temperature result) a. CPU 70A loading test: GIGABYTE P35-DS3R CPU VCORE MOSFET temperature is 93.2 Žmaximum; ASUS P5K CPU VCORE MOSFET temperature is 141.0Ž maximum! Difference with 47.8 deg C!!!! b. 3D mark 2006 test: GIGABYTE P35-DS3R CPU VCORE MOSFET temperature is 86.9 Žmaximum; ASUS P5K CPU VCORE MOSFET temperature is 105.8Ž. Difference with 18.9 deg C!!!! c. P4 max power 100% test: GIGABYTE P35-DS3R CPU VCORE MOSFET temperature is 129.0Ž maximum; ASUS P5K CPU VCORE MOSFET temperature is 166.9Ž. Difference with 37.9 Deg C!!!! Detail measurement data as follows: 1.CPU POWER temperature comparison: A. Room temperature 25 deg CF70A loading for 20 mins / no air flow, measure temperature of following pints after 20 mins. Â ASUS-P5K 70A loading -- CPU VCORE Under room temperature P35-DS3R 1.0 Max Ž ASUS-P5K Max Ž North bridge (Position 1) 42.1 MOSFET + Choke (Position 2) MOSFET + Choke (Position 3) Output capacitor (Position 4) Output capacitor (Position 5) B. Room temperature 25 deg C: Run 3D mark 2006; CPU use water cooling (no air flow interference) / measure temperature of following points after 20 Min's. 3D mark 2006 -- CPU VCORE Under room temperature P35-DS3R 1.0 Max Ž ASUS-P5K Max Ž North bridge (Position 1) MOSFET + Choke (Position 2) MOSFET + Choke (Position 3) Output capacitor (Position 4) Output capacitor (Position 5) C. Room temperature 25 deg CFRun P4 Max power 100%; CPU use water cooling (no air flow interference) / measure temperature of following points after 20 Min's. P35-DS3R ASUS-P5K P4 Max power -- CPU VCORE Under room temperature P35-DS3R 1.0 Max Ž ASUS-P5K Max Ž North bridge (Position 1) MOSFET + Choke (Position 2) MOSFET + Choke (Position 3) Output capacitor (Position 4) Output capacitor (Position 5) Conclusion: ASUS P5K although has heat pipe covering north bridge chipset and MOSFETs, but which temperatures are still much higher than GIGABYTE P35-DS3R. * Note those data are provided by Gigabyte so we do not assume any responsibility :-). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source |
|
|
|
|
||
|
Xtreview Support  N-Post:xxxx Xtreview Support  |
GIGABYTE P35-DS3R VS ASUS P5K |
| Please Feel Free to write any Comment; Thanks  |
GIGABYTE P35-DS3R vs ASUS P5K (2007-05-15)
