Gigabyte, motherboard manufacturer introduced two new solutions, equipped with socket LGA 1150 and intended for the generation Intel Haswell.

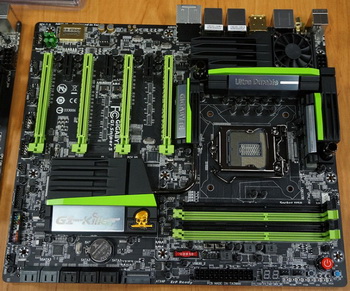

The model ATX, G1.Sniper 5, based on chipset Z87. The motherboard has a 16-phase voltage converter consisting of a Ferrite Core Chokes and components production PowIRstage International Rectifier, under the concept of Ultra Durable 5.
G1.Sniper 5 is equipped with a four-port PCI Express x16 (probably on board was a place hub PLX PEX8747: lines allocated to the scheme 16/0/16/0 or 16/0/8/8 or 8/8/16/0 or 8/8/8/8, depending on the desired multi-graphics configurations), three slots PCI Express x1, ten SATA ports with a capacity of 6 Gb / s, with additional controllers Bigfoot Killer K2000 and Realtek RTL8111F Gigabit Ethernet, ten USB 3.0 ports (four in the form of needle-shaped connectors), HDMI and DisplayPort video outputs, and even a combined PS / 2 port for keyboard and mouse.

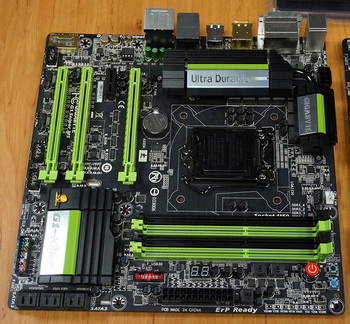

Equipping of micro-ATX, G1.Killer M5, is much more modest. Voltage regulator module consists of eight phases, PCI Express x16 ports only two (16/0 or 8/8), also there is a single slot PCI Express x4 (constructively x16) and one PCI Express x1. The model has six SATA 6 Gb / s, video output DVI, HDMI and DisplayPort, Intel NIC port, and six USB 3.0.

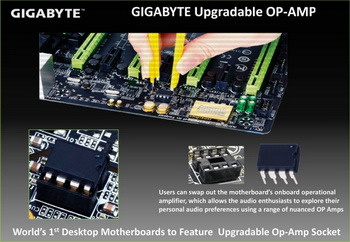

The new motherboard Gigabyte has an advanced audio solution based on the processor Creative Sound Core3D, special electrolytic capacitors and replaced the op-amp for the front channels. The card manufacturer offers two amplifiers: TI Burr Brown OPA2134, optimized for pure audio reproduction across the range, and TI Mouser LM4562NA, which is recommended for popular music, as well as a special tool to replace them.
The entire sound system is isolated from the other components of the motherboard, which should prevent the occurrence of electrical noise typical of integrated solutions. The motherboards also feature a gold-plated analog audio jacks.
