Thermaltake released new power units series : Thermaltake litepower. Those power units are not characterized by high power, advanced functionality or enormous connector quantity . According to the producer , these power units will possess the necessary minimum number of connector  and acceptable power. The first model 400 W has a function of capacity rate correction  (W0161), and the second is deprived  from it (W0162).

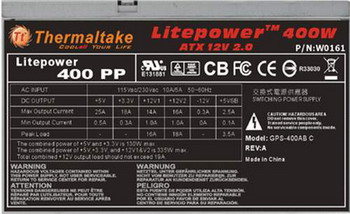

Only one 120 mm fan rotate at 2400 rp/min, pumping over 77,5 cubic feet air per minute. Here is the electrical characteristics of power unit litepower 400W:
|
OUTPUT |
|
|
+5V |
+3.3V |
+12V1 |
+12V2 |
-12V |
+5VSB |
|
Max. Load |
25A |
18A |
14A |
16A |
0.3A |
2.5A |
|
Min Load |
0.5A |
0.3A |
1.0A |
1.0A |
0.0A |
0.1A |
|
Peak load |
-- |
-- |
16A |
18A |
-- |
3.5A |
|
Load Reg. |
±5% |
±5% |
±5% |
±5% |
±10% |
±5% |
|
Ripple & Noise |
70 mV |
70 mV |
150 mV |
150 mV |
200 mV |
70 mV |
Â
The power units of this series have 20+4 - power connector for the motherboard , one 4- pin power connector , six 4- pin (molex) for hard disks, one power connector for PCI express x16 - 6 pins, one 4- pin (floppy-drive), two connector for serial ATA device.
Power unit has 1,6 kg weight . The overall dimensions are 140 X 150 X 86 mm . We hope that the price increase for thermaltake trade mark will be reasonable.
