POSTER: computer news   ||   ASROCK 4COREDUAL-SATA2 KENTSFIELD, AGP, PCI EXPRESS AND DDR-2

DATE:2007-07-09

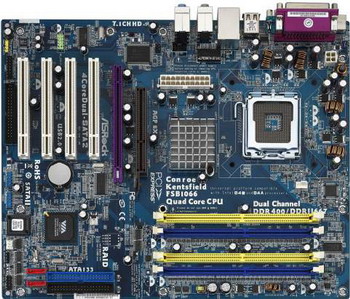

VIA compagnie continue the creation of uncommon and successful motherboard chipset for intel platform . Via chipset supported the valuable AGP 8x interface and the reduced to  PCI express x4 speed interface PCI express x16, and also supported the DDR 400 and DDR 2-667 memory  . A good platform for creating universal motherboard , let us note the famous one made by aSRock company  . ASRock released the motherboard 4CoreDual-SATA2 using VIA PT880 pro + VT8237S.

As it is possible to surmise from the prefix 4Core, this motherboard supports the four core processors intel with 1066 MHz system  bus, and also the dual core processors core 2 Duo. Let us note that this motherboard support four core processors series core 2 Quad and also the series core 2 Extreme with the free multiplier. The support of 45 nm processors  is not mentioned for the moment.

ASRock 4CoreDual-SATA2

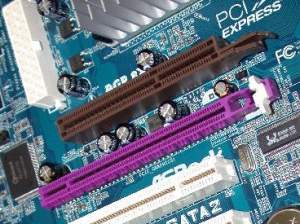

Slots for the graphic card can be used alternately: either AGP 8x or PCI express x16. In addition to four expansion slots PCI.

ASRock 4CoreDual-SATA2 pci=e + AGP8x

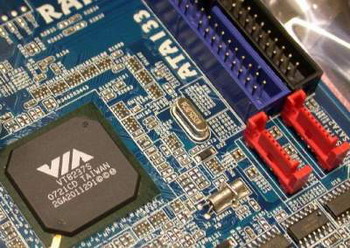

The south bridge VIA VT8237S allow the support of two ports SATA-300 and two ports PATA-133. The North bridge supports dual-channel DDR 400 or DDR 2-667 memory  in two slots DIMM for each type. The volume of each type can reach 2 Gb. Different memory type cannot be used simultaneously.

ASRock 4CoreDual-SATA2 via chipset

On the rear panel of this motherboard (4CoreDual-SATA2) it is possible to find sequential and parallel ports, four ports USB 2.0, network port 10/100 Mbit/s, ports PS/2 for the keyboard and mouse respectively, and also the collection of audio connectors.

The motherboard aSRock 4CoreDual-SATA2 can become first stage to the passage for processors with architecture core for those who have AGP video card system and DDR 400 memory . The cost of this motherboard in Japanese retail is $80.


Related Products :


xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source

Asrock 4CoreDual-SATA2 Kentsfield, AGP, PCI Express and DDR-2


Xtreview Support

N-Post:xxxx
Xtreview Support
ASROCK 4COREDUAL-SATA2 KENTSFIELD, AGP, PCI EXPRESS AND DDR-2
Please Feel Free to write any Comment;
Thanks





XT Future Member

N-Post:
ASROCK 4COREDUAL-SATA2 KENTSFIELD, AGP, PCI EXPRESS AND DDR-2
disculpa la molestia pero quiero saber si me pueden vender un reguelador de voltage de una mother board con matricula PW9928 esperare su respuesta en mi correo muchachiyo2000@hotmail.com gracias





XT Future Member

N-Post:
ASROCK 4COREDUAL-SATA2 KENTSFIELD, AGP, PCI EXPRESS AND DDR-2
This board has only 2 SATA connectors - an HDD and DVD but no room for expansion.





XT Future Member

N-Post:
ASROCK 4COREDUAL-SATA2 KENTSFIELD, AGP, PCI EXPRESS AND DDR-2
hello i have got the motherboard for a long time but i put it in a new case and now i dont know how to plug the power,reset, led +,led- and hdd led can some one pls help me ??? pls send a replie toward bennie_boy@live.nl thanks in advance
