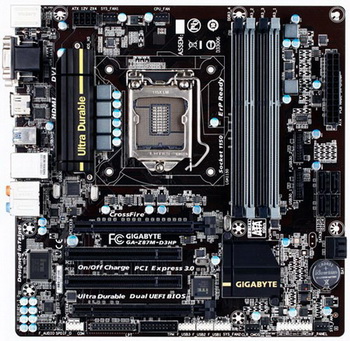

Gigabyte company is preparing to release the latest mid-end motherboard model GA-Z87M-D3HP. The motherboard has a form factor microATX, based on chipset Intel Z87 eighth series and are designed to work with Intel LGA 1150 processors, the fourth-generation (Haswell).
Gigabyte GA-Z87M-D3HP has four power system, also available 24-pin ATX connector and 8-pin connector EPS. The motherboard is equipped with four slots with dual channel DDR3-3000 memory (up to 32GB) slots PCI Express 3.0 x16 and PCI-E 2.0 x4 (support the possibility of constructing chords AMD CrossFireX as follows: x16 + x4). Also available two PCI, six SATA 6 Gb / s controller with RAID-arrays levels 0, 1, 5 and 10, two 6-pin connector USB 3.0, Ethernet controller, and 7.1-channel audio codec Realtek.

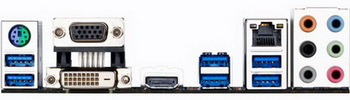

On the back panel there are six ports USB 3.0, one RJ-45, combo PS / 2 (mouse or keyboard), DVI-D, D-Sub and HDMI video outputs, as well as six 3.5-mm audio connector Mini-Jack.
The device support the original concept Ultra Durable 4 +, which is designed to increase the reliability and service life .
