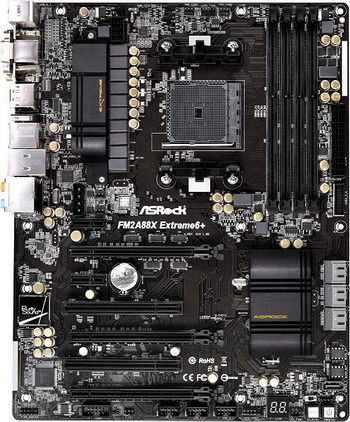

ASRock company , in the original line of A-Style Series, announced a new-ATX motherboard FM2A88X Extreme6 +. The device is based on chipset AMD A88X (Hudson-D4), support socket FM2 or FM2 + AMD processors and the power system with a digital controller is configured as 8 +2 phase.
FM2A88X Extreme6 + supports the concept ASRock XFast 555 with the following exclusive technologies from ASRock company : Fast Boot, XFast LAN, XFast USB, XFast RAM and X-Boost. The latter is designed to unlock the disabled cores in the processor . It is also worth noting support of technology AMD Dual Graphics, which allows to combine the computing power in the integrated APU graphics and a discrete graphics card.
The board is equipped with four slots for RAM standard DDR3-2600 + (up to 64GB), two PCI Express 3.0 x16 slots and one PCI Express 2.0 x16 (support ligaments Quad CrossFireX, CrossFireX and 3-Way CrossFireX), two PCI Express 2.0 x1 and two PCI slots. In a 5.1-channel audio with Purity Sound audio codec Realtek ALC1150, S / N ratio of 115 dB, Headphone Amplifier TI NE5532 and technology to support DTS Connect. There is also a Gigabit Ethernet-controller Qualcomm Atheros AR8171 support function Home Cloud Technology and Security Wake On Internet Technology.
