Gigabyte company has introduced two new motherboards based on Intel Z87 Express chipset and equipped with Thunderbolt 2.0 ports - Z87X-UD5 TH and Z87X-UD7 TH. Both new products are in the form factor ATX, technology support Ultra Durable 5 using quality voltage regulator IR3550 PowIRstage from International Rectifier, a printed circuit board with twice the thickness of the copper conductors in the Power and Ground layers, and chokes with ferrite core. In addition the unit received two chip BIOS, diagnostic LEDs and voltage monitoring points. The bandwidth of Thunderbolt 2.0 20GB / s.

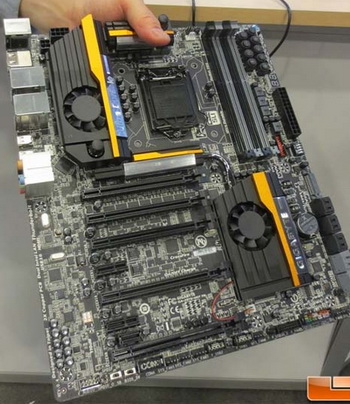

Model Z87X-UD5H equipped with 16-phase CPU power circuit has three slots PCI-Express 3.0 x16 (configuration x16/x8/x4), PCI-Express 2.0 x1 and PCI slots. Also available ten SATA 6 Gb / s ports, two eSATA 6 Gb / s, ten USB 3.0, two-port Gigabit Ethernet, support for 802.11ac and Bluetooth 4.0, 7.1-channel audio and two video output DVI, HDMI and DisplayPort outputs , in FireWire.

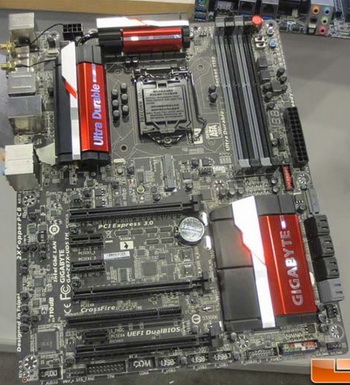

The model Z87X-UD7 TH is powered by 24-pin ATX and 8-pin EPS connectors, as well as an additional 4-pin ATX and SATA connectors. It is also equipped with a 16-phase CPU power circuit has five slots PCI-Express 3.0 x16 (three 3.0 x16, and one 3.0 - x8), ten ports SATA 6Gb / s, two Ethernet ports, support for 802.11ac and Bluetooth 4.0.
