Besides the presented high-speed adapter RX2600XT diamond OC edition on base Of radeon 2600XT , MSI company announced one additional interesting model, which is made on NVIDIA GeForce 8600GTS (G84) and its oriented for economical buyer witch requires from middle class adapter its maximum performance.

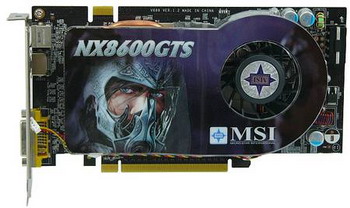

MSI NX8600GTS diamond plus

This new card from MSI obtained the designation NX8600GTS diamond plus and it is proposed to buyer with the game COMPANY of HEROES. The special adapter feature is the new design, which gives support to the technology HDMI audio mixing and high operation speed accelerator as a whole.  HDMI is realized on the card without any adapters.

The chip NVIDIA G84-403 proposes 32 stream processors and supports the technology SLI .

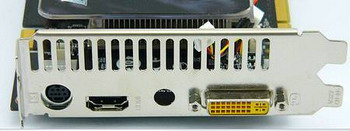

MSI NX8600GTS diamond plus DVI +HDMI

Msi used in this card the memory samsung K4J52324QE - BJ 1a, standard GDDR3 with access time 1,0 ns, witch was called to raise performance level of this card higher than the majority of other 8600GTS.

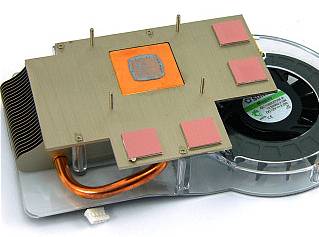

MSI NX8600GTS diamond plus cooling dual slots

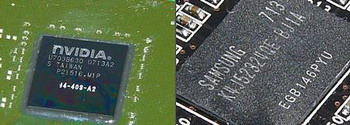

MSI NX8600GTS diamond plus  G84-403

MSI NX8600GTS diamond plus Characteristics :

  • GPU: NVIDIA geForce 8600GTS (G84-403, G84-303, WEI - 303 or WEI - 216)
  • Support directX 10
  • Memory Frequency , type: 2000 MHz GDDR3
  • Memory Volume, interface: 256 mb., 128- bit
  • Memory Bandwidth : 32 Gb/s
  • Support the technology dynamic overclock D.O.T express
  • Cooling: massive 2 slot cooler (radiator with thermal tube made from copper)
  • Support HDTV/HDCP/HDMI (Single link TSMD, 1920 x 1080 points)

MSI NX8600GTS diamond plus vs MSI RX2600XT diamond OC edition 3d 2006 :

MSI NX8600GTS diamond plus 3d2006

MSI NX8600GTS diamond plus vs MSI RX2600XT diamond OC edition Doom 3 :

MSI NX8600GTS diamond plus doom3

The speed of NX8600GTS diamond plus can be compared with RX2600XT diamond OC edition. On the test 3DMark 06 (1600 x 1200), This NVIDIA product got 4667:4283, and in the game doom 3 with the same resolution we got : 145,5 fps against 124 fps (NX8600GTS diamond plus VS RX2600XT diamond OC edition).






Related Products :


xtreview is your : Video card - cpu - memory - Hard drive - power supply unit source

MSI NX8600GTS diamond plus review


Xtreview Support

N-Post:xxxx
Xtreview Support
MSI NX8600GTS DIAMOND PLUS REVIEW
Please Feel Free to write any Comment;
Thanks





XT Future Member

N-Post:
MSI NX8600GTS DIAMOND PLUS REVIEW
hey i just ordered a nx8600 diamond plus, im currently running on a 3.2ghz dual core and 1gb ddr2 ram, can you tell me how im gonna go on the latest games if you have any clue? thankx great article





XT Future Member

N-Post:
MSI NX8600GTS DIAMOND PLUS REVIEW
The NX8600 GTS is a good card for current game , as overall it should be as fast as 7950 GT -7900 GTX in most game , witch is pretty enough in most case for 1280x1024 with AA and AF.
