POSTER: computer news || NEXUS 5 IFIXIT |
DATE:2013-11-05 |
|
|

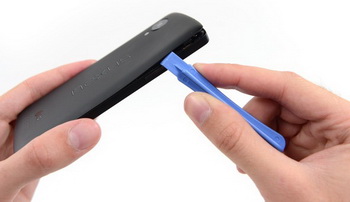

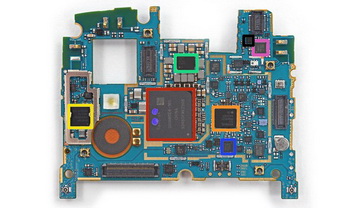

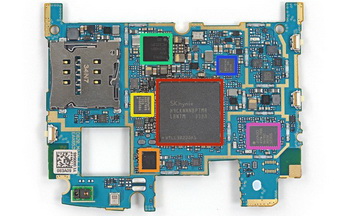

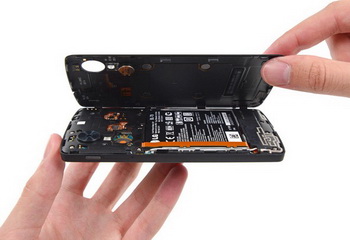

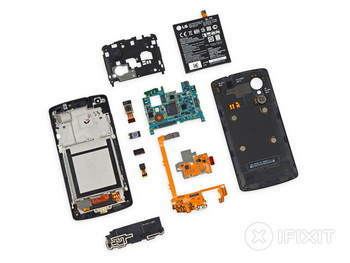

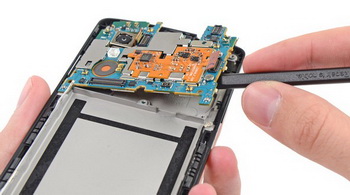

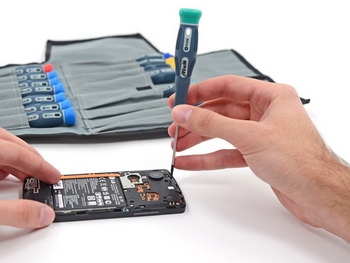

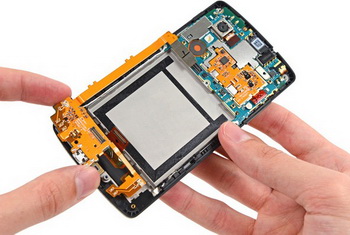

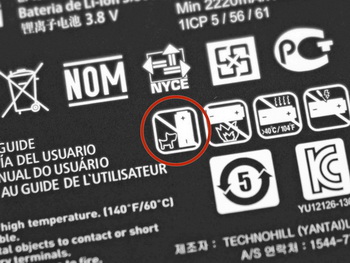

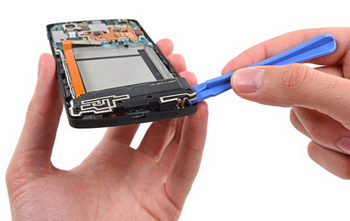

iFixit team take up a brand new smartphone Google Nexus 5 .  The Nexus 4 and the second-generation tablet Nexus 7 received seven points out of a possible ten.  The first point - the case rests on the plastic snap.  However, not all.  At the bottom  the manufacturer did use some glue.  The battery is also held on the glue, but iFixit experts claim that it used only as much as is necessary and that fact is not in any serious obstacle in the process of disassembly.  battery (3.8 V, 2300 mA • h), as smart phone manufactured by LG.  Further disassembly is a fairly simple process.  Directly on the PCB can be seen SoC Snapdragon 800, 2 GB of RAM Hynix H9CKNNNBPTMRLR-NTM, 16 GB of flash memory Sandisk SDIN8DE4, adapters Broadcom BCM4339 and Qualcomm WTR1605L, and other electronic components. After removing the board will only remove the camera, headphone jack and speaker.  Manufacturer used in this case a modular design that greatly simplifies disassembly. Overall Nexus 5 received eight points out of ten, that is a great result.  The disadvantages include a single unit of glass, display and frame is an advantage specialists iFixit carried a modular design, a small amount of glue , a small number of standard screws and mounting snap-on back cover. | ||
|
|
||
|
