We already reported about the first motherboard on base of new chipset AMD RX780, which became Jetway A780G. This product left a transitional sensation, since most chipset possibilities was not released - first version system bus hyperTransport , interfaces PCI express - version 1.1.

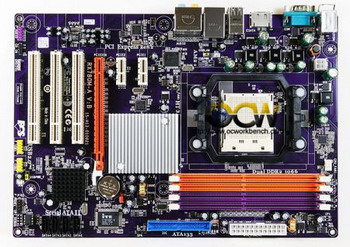

Today with fully RX780 capability appeared the motherboard ECS RX780M- A.
ECS RX780M- A Technical characteristics :
- Chipset AMD RX780 + SB600
- Support processors AMD socket AM2/AM2+, including futures phenom
- System bus hyperTransport 3.0 with 5,2 mln transfers per second
- Memory: 4 slots for DDR 2-667/800/1066 with total volume up to 32 Gb in dual-channel regime
- Expansion cards: 1 x PCI express x16 version 2.0, 2 X PCI express x1, 3 X PCI
- Network: gigabit adapter
- 4 X SATAII with RAID 0, 1, 0+1 support , 1 X PATA
- Sound: 7.1 HD- codec
- Ports: 6 X USB 2.0, 1 X eSATA
If ECS RX780M- A is put on the market it will became the first motherboard on base of RD790, which combined socket AM2+ support , HyperTransport 3.0 and PCIe 2.0 Related Products :
|
