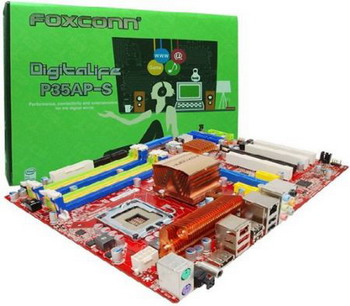

The new motherboard foxconn P35AP- S support most extended until today memory types - DDR2 and DDR3.
Maximum DDR 2-1066/800/667 capacity can be 8 Gb, for DDR 3-1333/1066/800 it is limited 4 Gb.
Like many other highly productive products, foxconn motherboard uses polymeric capacitors, which increases stability with overclock and increases the service period .
Foxconn P35AP- S Technical characteristics :
- Supported processors: Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium dual-Core e2xxx, Celeron 4xx, Pentium EE, Pentium 4PXE, Pentium D, Pentium 4
- Chipset: Intel P35+ICH9R
- Expansion Slots : 2 x PCIe x16, 2 x PCIe x1, 3 x PCI
- Support IDE/ATA: ATA 133 x 1, + 6 x SATAII with SATA support RAID 0, RAID 1, RAID 5, BY RAID 10; and matrix storage technology , 2x External SATA
- Sound: 8-channel, Realtek ALC888
- Network: the gigabit adapter realtek RTL8111B
- 1 x IEEE-1394, 8 X USB
- Shape factor: ATX
