Gallery of GeForce GTX 960 from NVIDIA partners


Recommended : Free unlimited image hosting with image editor

DATE:2015-01-22

As it was promised in the first minutes after the official announcement of GeForce GTX 960 NVIDIA partners offer a wide range of own products of this model, with many of them have increased frequencies and interesting cooling system. .

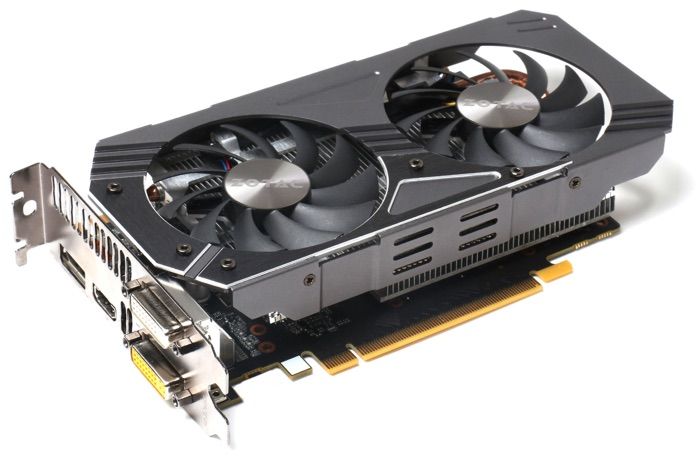

ZOTAC  introduced four versions GeForce GTX 960, but they can be grouped in pairs on the base of the ports layout on the rear panel. In one case, a combination of 2 x DVI + 1 x HDMI + 1 x DisplayPort, another - 1 x DVI + 3 x DisplayPort + 1 x HDMI.

The basic version of GeForce GTX 960 ZOTAC is content with 1177/1240/7010 MHz frequencies, and the cooling system is equipped with a pair of heatpipes and two fans. To the power supply card is connected via one six-pin connector.

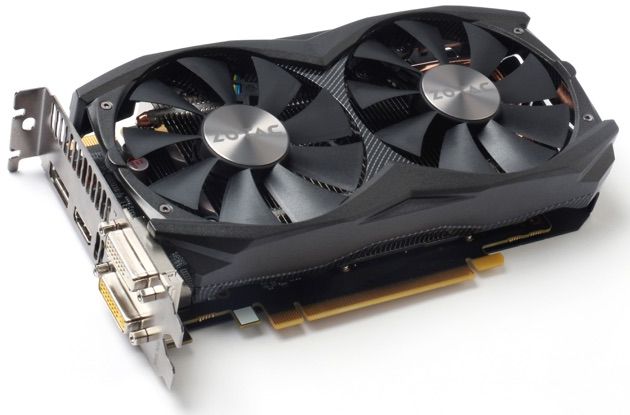

Option AMP! Edition is already able to offer   jacket cooling system with two larger fans and reinforcing plate on the back side of the PCB. The frequency of the video card upgraded to 1266/1329/7010 MHz.

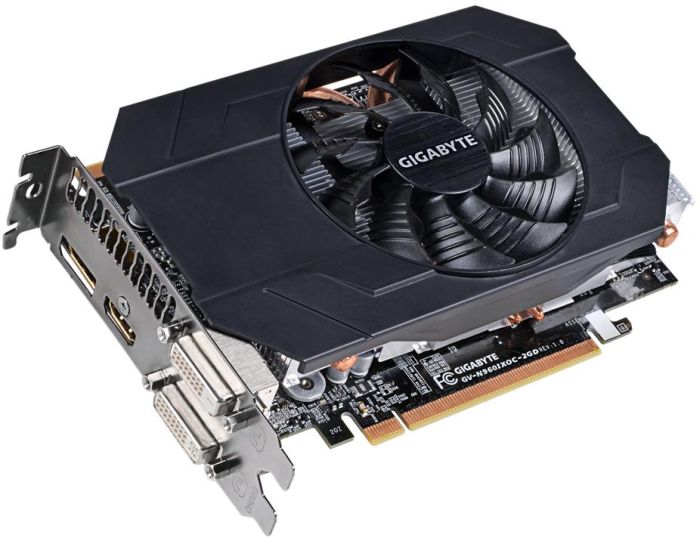

Gigabyte has their own versions of GeForce GTX 960 is built on increasing the number of fans in the cooling system. The most compact option is named after GV-N960IXOC-2GD, can be installed in the motherboard format Mini-ITX (video length is 181 mm), and the cooling system combines two heat pipes direct contact and fan impeller with a diameter of 90 mm. Frequency increased to 1165/1228/7010 MHz, has one six-pin power connector on the rear panel there was a place for the two ports DVI, one HDMI and one DisplayPort.

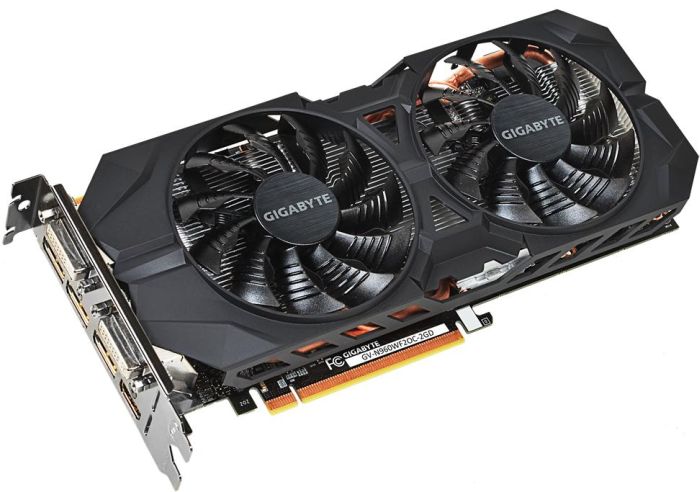

Graphics card GV-N960WF2OC-2GD increases the number of 90 mm fan up to two and the number of heat pipes - up to three. In addition, fans are able to remain noiseless in those moments when the active cooling of the video card is not required. At the same time on the back of the product there are no ventilation slots: the entire space occupied by a pair of ports DVI, one HDMI and three full-size DisplayPort. In fact, it makes it easy to connect up to four monitors at the same time without using active splitters. The frequency of the video card make 1216/1279/7010 MHz, and to the power supply is connected with two six-pin connectors.

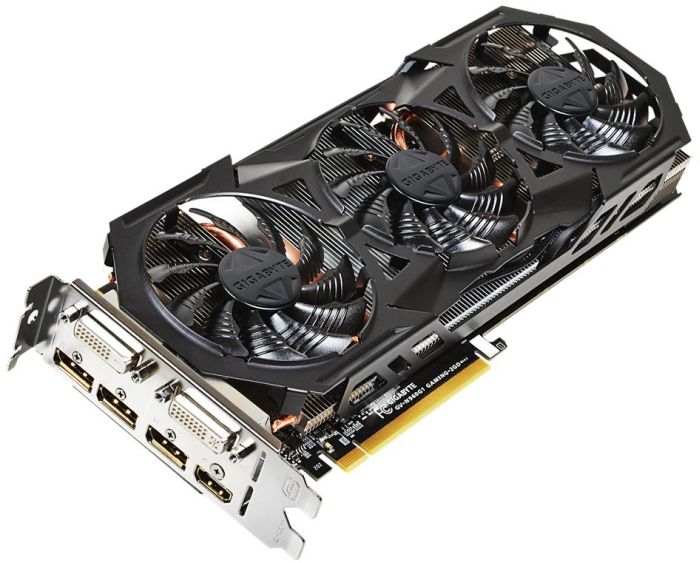

Finally, the video card GV-N960G1 GAMING-2GD equipped with a type of cooling system WindForce 3X with three fans . Heat pipes of this cooling system are also in direct contact with the upper surface of the GPU. Frequency already raised to 1241/1304/7010 MHz, it has two six-pin power connector, the layout of the ports on the rear panel is identical to the previous video card.

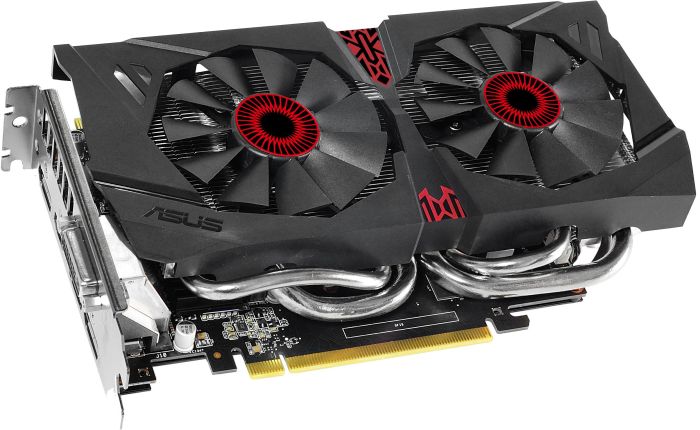

Asus company produced only one product series Strix. Video card with part number STRIX-GTX960-DC2OC-2GD5 has the cooling system DirectCU II direct contact with four heatpipes and two fans, the ability to completely stop. The frequency depends on the mode: 1228/1291/7200 MHz for game and 1253/1317/7200 MHz for overclocking. The combination of ports on the back panel are : 1 x DVI, 3 x DisplayPort, 1 x HDMI.

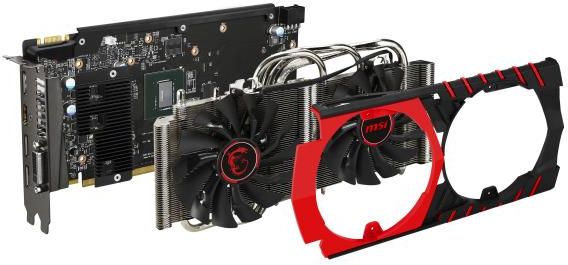

MSI  proposed four models  only one reference  and withfrequencies 1127/1178/7010 MHz, two used cooling system Twin Frozr V, one has received  efficacy option named Armor 2X.

Like many others GeForce GTX 960, knows how to stop the fans. Provides just three sets of frequencies: 1127/1178/7010 MHz for quiet operation, 1190/1253/7010 MHz for games, as well as 1216/1279/7010 MHz with the urgent need for factory overclocked. The rear panel is arranged in a 1 x DVI, 3 x DisplayPort, 1 x HDMI.

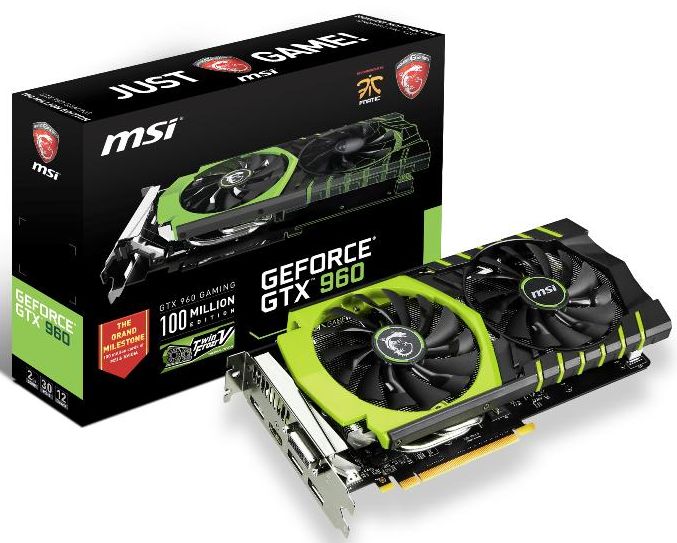

The same card can be bought in Jubilee version with a different color scheme.

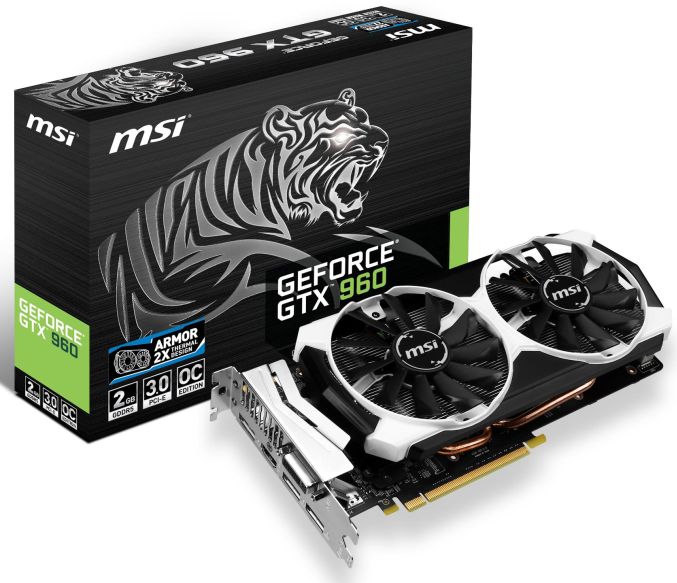

In the category of just overclocked video cards MSI offers the model GeForce GTX 960 OC with the cooling system Armor 2X, which is characterized by frequencies 1178/1241/7010 MHz. To the power supply card is connected through a single connector with six pins.

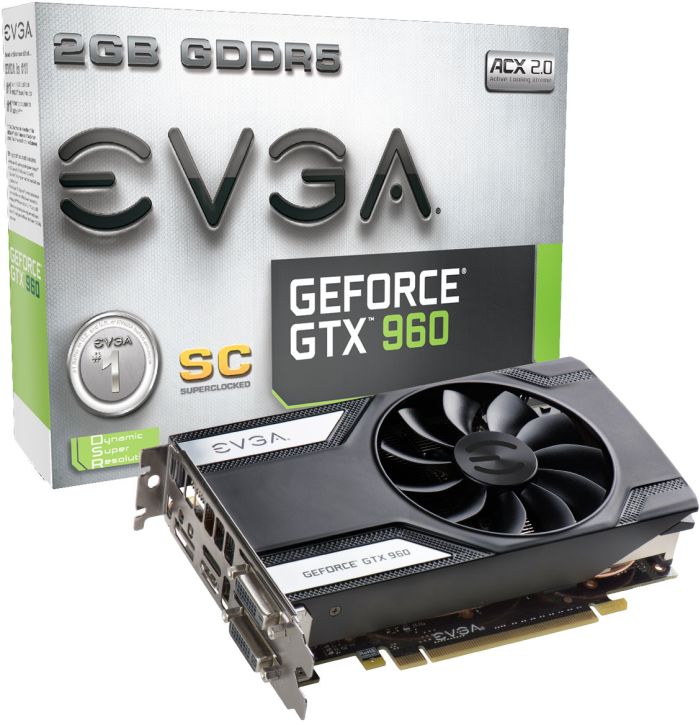

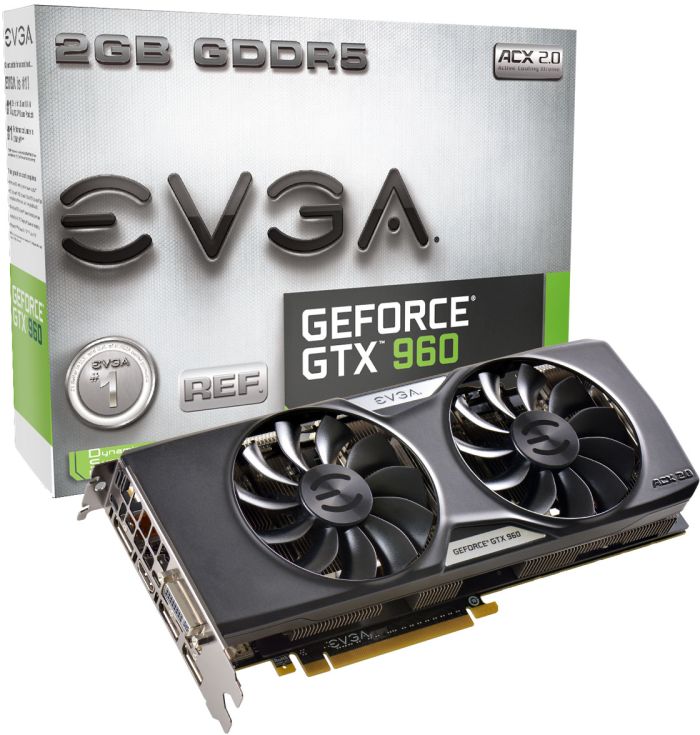

EVGA company equips some of its video card series GeForce GTX 960 with cooling system ACX 2.0+ with three straight heat pipe diameter of 8 mm and two fans who do not start until the GPU temperature reach 60 degrees Celsius. Fans are equipped with double ball bearing that can operate up to four times longer than the bearings in the products of some competitors. Under the section of the main radiator plate hides MMCP, which can reduce the temperature by 11 degrees of power elements, and 9 degrees lower the temperature of the memory chips.

QSD BIOS function allows you to switch between two alternative profiles VGA BIOS - it can be useful not only to remember the best overclocking settings, but to recover the card after unsuccessful overclock attempts .

In fact, EVGA range is  currently reduced to three graphics cards with the cooling system ACX 2.0+, which are equipped with Eight-power connector and built under the 6 + 2 phase power system, and a video series SuperClocked, which differs shorter PCB and cooling system with a single fan, a six-pole power connector and a power system with the formula 4 + 1 phase. By the way, this video card is more characterized by the presence of only one BIOS chip without a switch. This video card operates at frequencies 1216/1279/7010 MHz.

Hierarchy  models ACX 2.0+ series is constructed as follows:

  • EVGA GTX 960 ACX 2.0+-> 1127/1178/7010 MHz frequency;
  • EVGA GTX 960 SuperSC ACX 2.0+-> 1279/1342/7010 MHz frequency;
  • EVGA GTX 960 WTF ACX 2.0+-> 1304/1367/7010 MHz frequency.

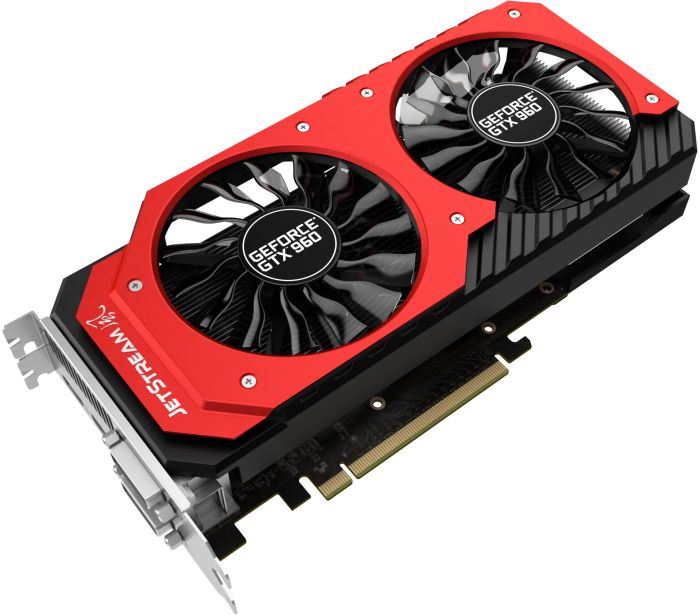

Palit company interested enthusiasts by two cards with the designation JetStream: the basic version operates at frequencies 1203/1266/7200 MHz version with the prefix Super is characterized by 1279/1342/7200 MHz frequencies. Both cards are equipped with a pair of size 90 mm fans and three heatpipes. These fans are also quiet until the video card consumption value reaches the power  of 60 watts or GPU temperature rises to 60 degrees Celsius.

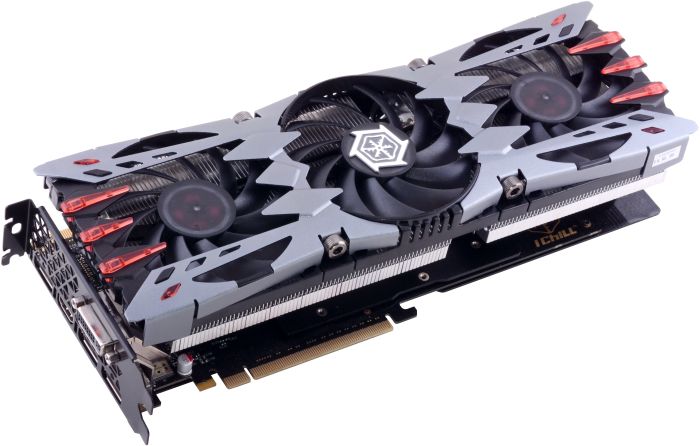

Company Inno3D promised to release in March this year version of GeForce GTX 960 with 4 GB of GDDR5 memory  .

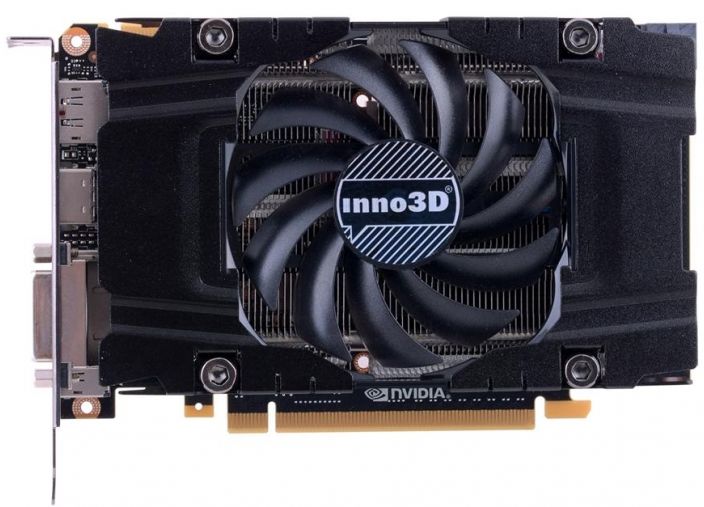

The most compact version of the cooling system HerculeZ X1 and a single fan is compatible with the format of Mini-ITX, 1127/1178/7010 MHz frequency is limited.

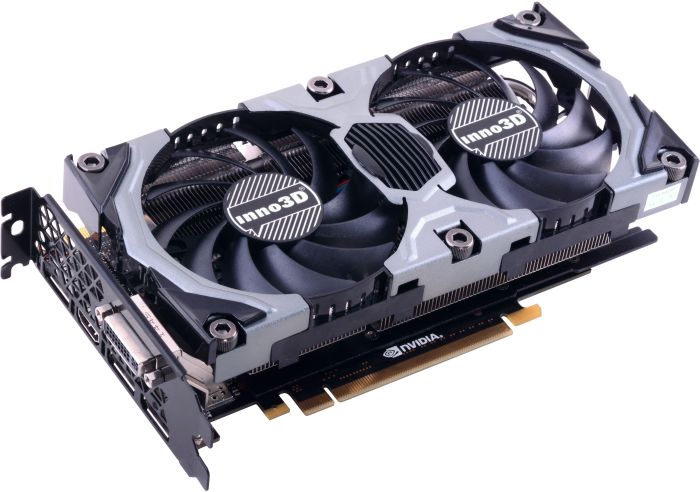

Larger graphics card cooling system HerculeZ X2 OC has already two fans, and the frequency increased to 1178/7010 MHz. Finally, the most serious video series iChill suffix Ultra and cooling system HerculeZ X3 Air Boss without the annoying side-fourth fan. Frequency  reach 1329/1393/7010 MHz.

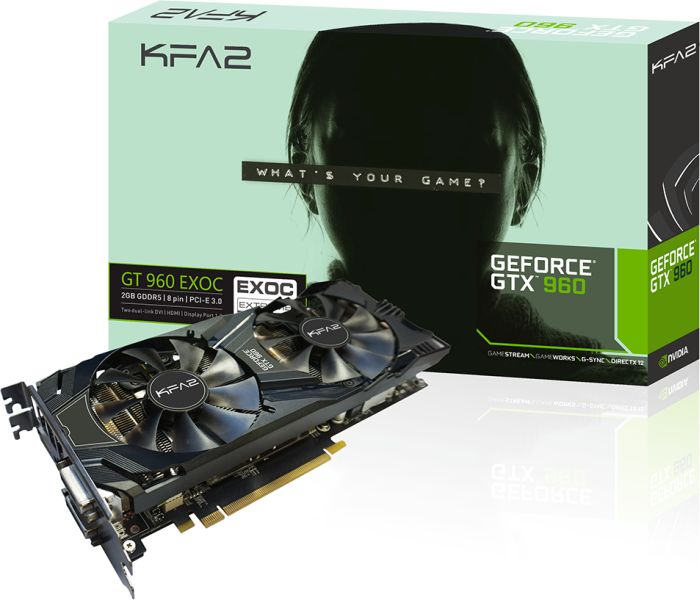

Company Galax / KFA2 presented two models. The first is the suffix EXOC, and offers frequency 1203/1266/7010 MHz paired with original cooling system and Eight-power connector. Shown video dimensions - 271 x 124.3 x 41.5 mm.

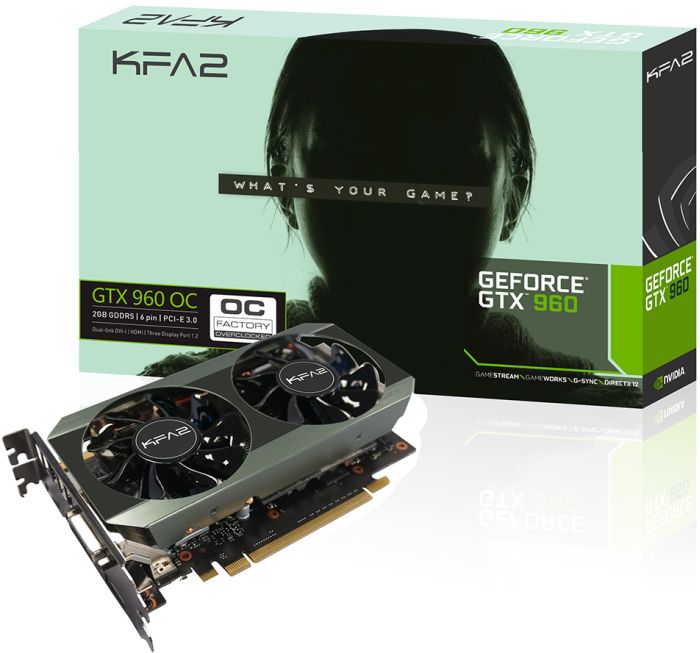

The GeForce GTX 960 OC received the cooling system with two fans. To the power supply card is connected via a single six-pin connector. Default frequencies are 1165/1228/7010 MHz.

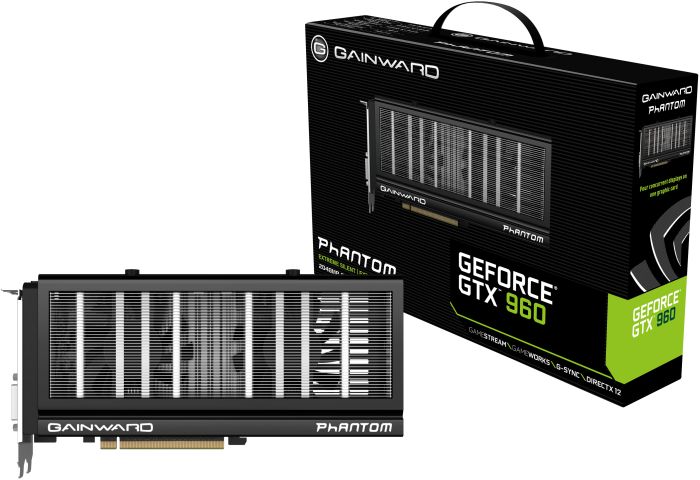

Finally, Gainward noted in addition to the standard video card with high frequencies, the two solutions with the cooling system Phantom. Recall the peculiarities of its layout: two fans are located between the circuit board and heat sink fins.

Phantom graphics card base version operates at frequencies 1203/1266/7200 MHz,  Phantom GLH is characterized by 1279/1342/7200 MHz frequencies. Both cards are content with six-pin power connector and layout options ports on the rear panel, implying the presence of two DVI. A feature of the cooling system Phantom is the ability to remove the fan blades for cleaning from dust. The fan speed can be adjusted using the proprietary utility EXPERTool.
