EVGA company presented the GeForce GTX 980 Ti Classified K | ngp | n Edition. This card is not only be accompanied by an expanded advisory support, but also sold sorted by overclocking potential instances.

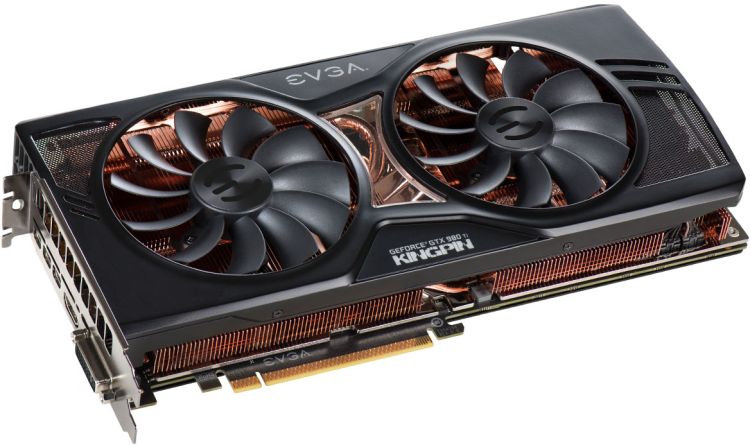

Radiator with five straight heatpipe diameter of 8 mm and a cooling system ACX 2.0+ in this card is made of copper, the front side of the printed circuit board covers the special plate with cut-outs for individual elements, which cools the memory chips and the power components. The fans are switched on if the GPU temperature exceeds 60 degrees Celsius.
The power system is based on a 14 + 3 phase, it can withstand loads of up to 600 A, and the power supply is connected through a combination of connectors 8 + 8 + 6 pins. The PCB has a 12-layer design. EVGA has provided additional temperature sensors to monitor the verclock process and cooling pads allow you to read with a multimeter and proprietary connector provides connection of the EV Bot. The light illumination can be changed with the help of company utility .
The card is equipped with three chips BIOS, among which you can switch quickly. The rated speeds are 1203/1304/7010 MHz, but the cost of a specific instance will depend on the exemplary overclocking potential of the GPU, resulting in a certain sort. So, for a graphics card from the group of "72% +" will have to pay 923 euros, while the most successful instance of the group "80% +" is estimated at 1150 euro. By the way, there are no guarantees for the achievement of such acceleration is not available, it is only a pre-sorting.

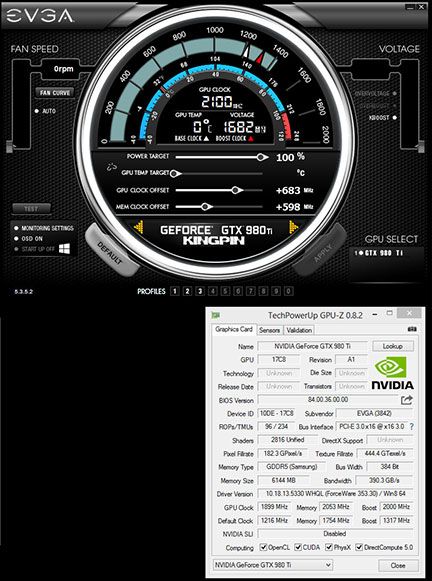

As recognized by EVGA, the creator of the video card already clocked it up to 2100 MHz .
