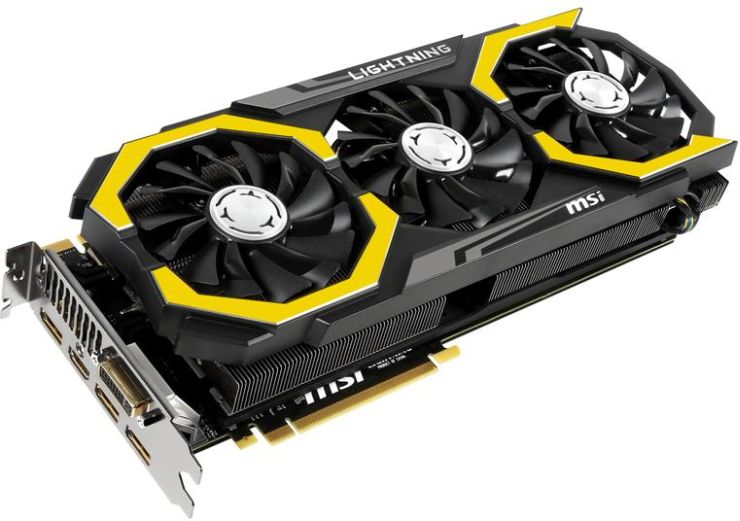

Today appeared full specification of the video card GeForce GTX 980 MSI Ti .

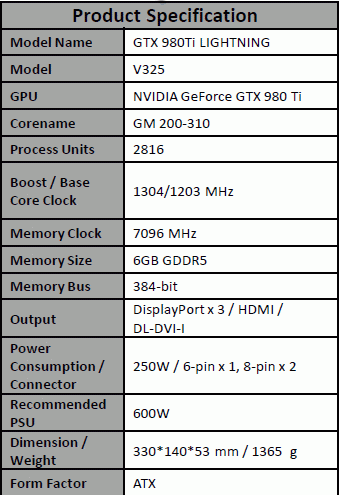

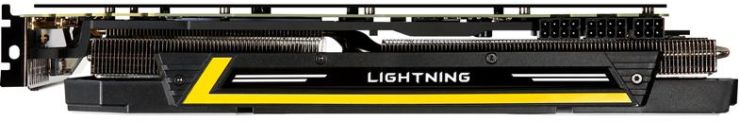

The overall dimensions (330 x 140 x 53 mm) and weight (1365 g) . The card occupies the space of three expansion slots. Logo Lightning is highlighted in the sidebar. Frequencies - 1203/1304/7096 MHz. The graphics card consumes less than 250 watts, is connected to the power supply through a combination of connectors 8 + 8 + 6 pin, and the recommended power supply unit - not less than 600 watts.

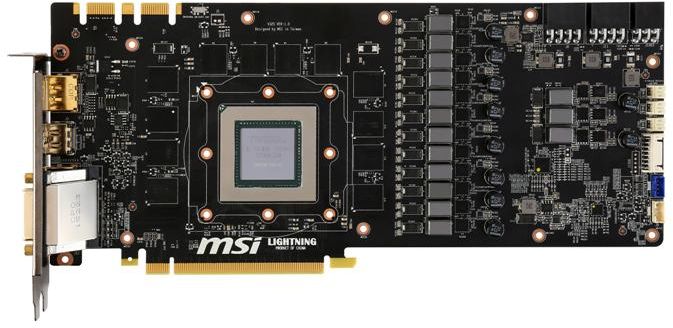

The cooling system employs not only three large fan but also five heat pipes, three of which have a diameter of 8 mm. The GPU power system has 12 phases, the memory three phases. In the second BIOS chip stores the settings for extreme overclocking using liquid nitrogen or freon.
The GPU temperature , memory chips and power components is monitored by special software.
