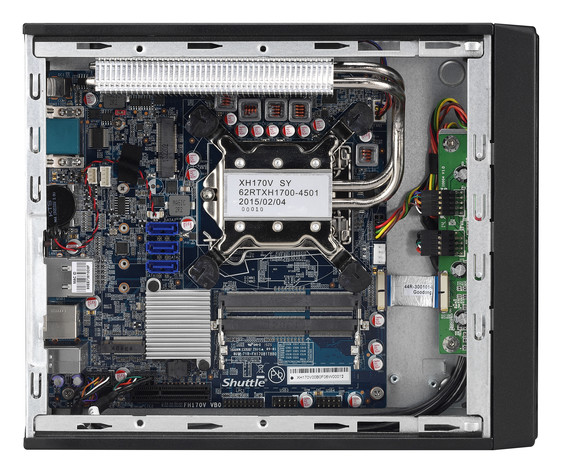

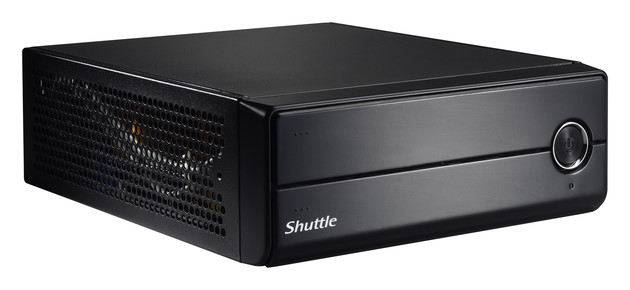

Shuttle has introduced a system for the assembly of compact computer XH170V. New case has a volume of only 3.5 liters, with dimensions of only 240 x 200 x 72 millimeters. The system is equipped with a standard size motherboard mini-ITX Chipset Intel H170 and CPU socket LGA 1151.
The user will be able to complement Shuttle XH170V with processor Intel Core Skylake up to 65 W, two RAM modules DDR3L total volume of up to 16 GB, and multi-drive storage. More precisely, there is space for two 2.5-inch drives, a thickness of 12.7 and 9.5 millimeters, respectively. In addition, the new product supports the installation of the optical drive 12.7 millimeters thick, or instead of it, you can install one more 2.5-inch drive.
On the front panel of the cover a special hidden two USB 3.0 ports and 2.0, and two 3.5-mm jack for headphones and microphone. The device is equipped with slots M.2, mini-PCIe and PCIe x1, three SATA 6 Gb / s and one eSATA 3 Gb / s. Behind there is the same set of ports USB, as well as front and connector Gigabit Ethernet, HDMI 1.4 video output and two DisplayPort 1.2, which can output through the video resolution of Ultra HD (3840 x 2160 pixels). For ensuring responsible energy system external power supply capacity of 90 watts.
The cost of the system to build a mini-PC Shuttle XH170V is 224 euros . Related Products :
|
