Gigabyte has introduced two new motherboards, which are designed for the construction of workstations based on Intel's sixth-generation.

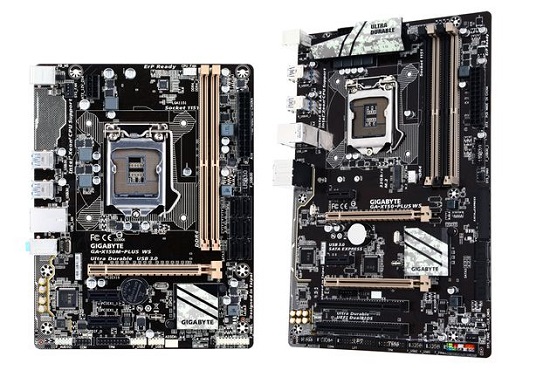

The models are called GA-X150-PLUS WS and GA-X150M-PLUS WS, and they have various ATX and microATX, respectively. Novelty is equipped with processor socket LGA 1151 and are based on chipsets C232. Motherboard support work with CPUs Xeon E3-1200 v5, and the processor Celeron, Pentium and Core i3-generation Skylake.
Model GA-X150M-PLUS WS is equipped with two slots for RAM DDR4. Supports installation of both conventional and memory without ECC, up to 32 GB with a frequency of 2133 MHz. GA-X150-PLUS WS is equipped with four slots, and can take up to 64 GB .
Smaller motherboard is equipped with a single slot PCI Express 3.0 x16 and two PCI Express 3.0 x1, while the larger model has a dual-slot PCI Express 3.0 x16, two PCI Express 3.0 x1 and one PCI. To connect the drives in the board X150M is only six ports SATA 3.0 (6 Gb / s), whereas in X150, as well SATA Express port (10 Gbit / s) and M.2 connector (32 Gbit / s), in addition six SATA 3.0.
Both motherboards are equipped with Gigabit LAN controller, sound system in X150M is based on a codec Realtek ALC887, and X150 - to the ALC892. Port selection on the back of the motherboards are practically identical, and includes two USB 2.0 ports and four USB 3.0, network port, and PS / 2 connector for mouse and keyboard. The difference lies in the number of audio outputs: a smaller version of three or more - six. Related Products :
|
