ECS company , as well as a few other manufacturers, too, decided to experiment with a new form factor motherboards offered by Intel. This so-called size Mini-STX with the side of the board 140 x 147 mm.

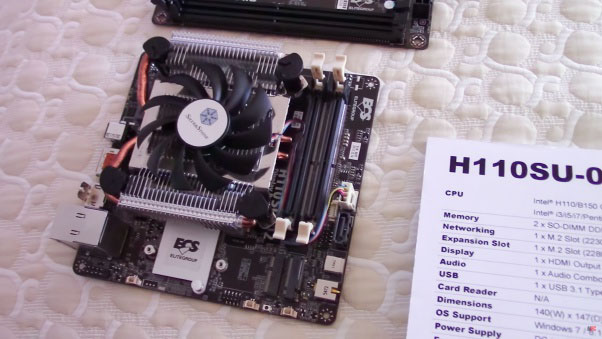

Thus, ECS. At CES 2016 showed H110SU-02 on Socket LGA 1151 processors , the maximum power consumption of the CPU board 65 watts. The board is equipped with an external power supply power 90 W (19 V).
The memory system is represented by two SoDIMM slots for memory DDR4. In the presence of a single port SATA 6Gb / s and two slots M.2. One full-length for the SSD (2280), and the second is shorter - for Wi-Fi-module, for example (2230). Platform - a chipset Intel H110 / B150. The integrated network adapter card to the appropriate port. USB ports are represented by a single port USB 3.1 Type-C and two ports USB 3.0. Video ports - one HDMI port and one port DisplayPort. Related Products :
|
