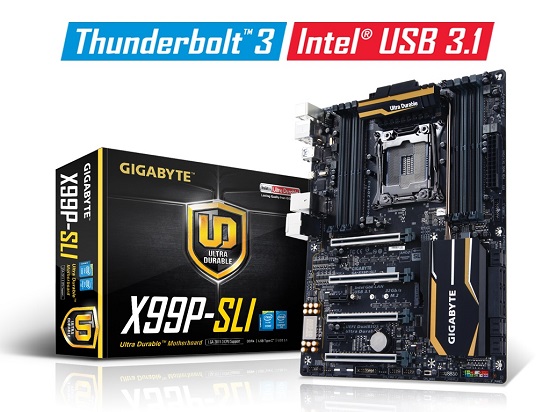

Motherboard Gigabyte GA-X99P-SLI has become the world's first motherboard based on Intel X99 chipset has received Certificate of Compliance Thunderbolt 3. This interface is available via USB Type-C and provides data rates up to 40 Gbit / s. Thunderbolt 3 support allows you to connect devices such as external discrete graphics cards in special cases such as Razer Core .

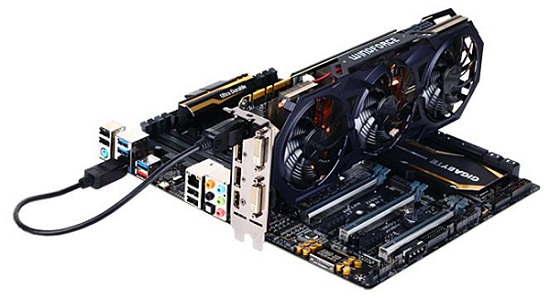

Thunderbolt 3 also means can carry the output image, but as processors Intel X99 platforms have built-in graphics controller, the controller must have a Thunderbolt connection with a discrete graphics card. To this regard, Gigabyte has placed on the back of the GA-X99P-SLI DisplayPort input that connects to the video output on the graphics card discrete cable included that allows you to display the image just after Thunderbolt interface 3 via USB Type-C port. Note that a single Thunderbolt port 3 can connect up to six monitors.
Below are the main features of the motherboard Gigabyte GA-X99P-SLI:
- The processor socket: LGA 2011-3;
- Chipset : Intel X99;
- Slots for memory modules, eight DDR4-3333, up to 128 GB, XMP support;
- Expansion Slots: Two PCI-Express 3.0 x16 (at x16 mode), two PCI-Express 3.0 x16 (in x8 mode), two PCI-Express 2.0 x1;
- Ports and slots for storage: ten SATA 3.0, one M.2, one SATA Express;
- Network Intel Controller Gigabit ;
- Sound: 7.1 channel codec Realtek ALC1150;
- I / O Panel: USB 3.1 Type-C / Thunderbolt 3, USB 3.1, three USB 3.0, four USB 2. 0, five 3.5-mm audio jacks, an optical output, network port, DisplayPort, PS / 2.
