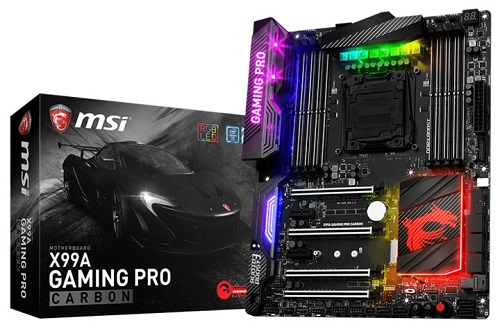

MSI has officially introduced a motherboard X99A Gaming the Pro the Carbon . Novelty is based on a set Intel X99 chipset and is designed primarily for those preparing for release Broadwell-E processors, as well as last year's Haswell-E. The new motherboard is decorated in the same style as the previously issued X99A Godlike Gaming the Carbon , but it looks modest, and is likely to be cheaper.

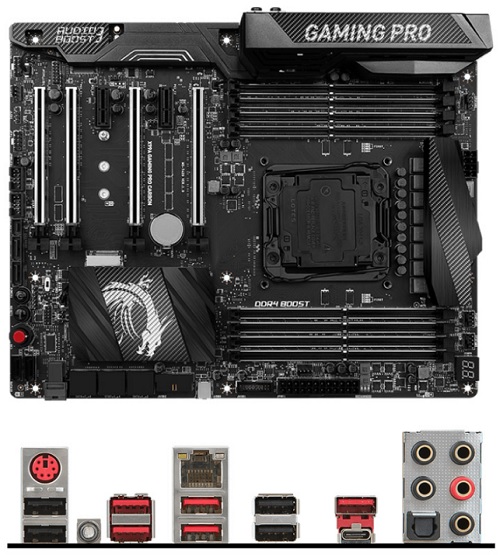

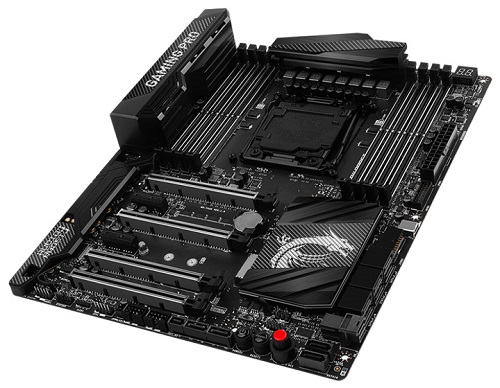

processor socket LGA 2011-3 power system motherboard MSI X99A Gaming Pro Carbon includes eight phases. Near the CPU socket eight slots for memory modules DDR4-3466. A set of expansion slots includes two slots PCIe 2.0 x1 and four PCIe 3.0 x16, working in a mode x8 / x16 / x8 / x8. Supports ligament 3-Way AMD CrossFire and NVIDIA SLI.
At the bottom of the motherboard, next to the buttons Power and Reset, is a red button Game Boost, which allows for 8-speed CPU overclocking. According to the manufacturer, via Game Boost technology can raise the CPU frequency to 5GHz within seconds. We should also note the presence on MSI X99A Gaming Pro Carbon front port USB 3.1 Type-C. It is located near the right edge of the board, between the SATA ports and connector ATX power supply. Apparently, it is intended to connect the port USB Type-C on the front panel of the case.
Worth noting the customizable LED backlighting Mystic Light. It supports 16.8 million colors and 17 may operate in different modes. There is also a 4-pin connector to connect to and control the LED strips. The motherboard MSI X99A Gaming Pro Carbon is equipped with a sound system Audio Boost 3 based on codec Realtek ALC1150, and support Nahinic technology. For network connectivity meets Intel I218-V gigabit controller. Also we note the presence of rear USB ports 3.1 Type-A and Type-C. Related Products :
|
