The compact computer systems are gradually becoming more and more popular, because now very productive components can fit in a compact package. A component manufacturers wishing to contribute in every way to minimize the size of the system. Now MSI has introduced a line of Aero ITX graphics card, whose members differ in exactly compact dimensions.
Just eight compact new products were presented: two versions of GeForce GTX 1070, four models GeForce GTX 1060, and one GeForce GTX 1050 Ti and GeForce GTX 1050. All cards come with a compact cooling systems with one large fan, though cooler design is still different. For example, the video card GeForce GTX 1070 cooler is equipped with three heat pipes with direct contact, at the GeForce GTX 1060 - one long S-shaped tube, and finally compact GeForce GTX 1050 and GeForce GTX 1050 Ti, MSI does go
without heat pipes.

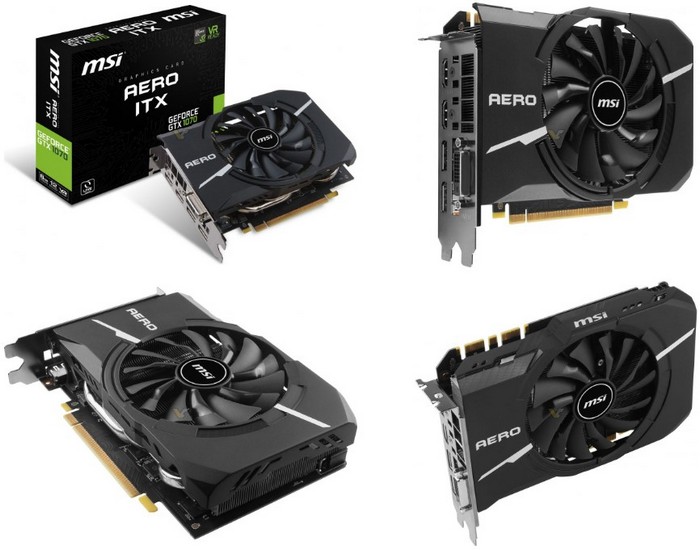

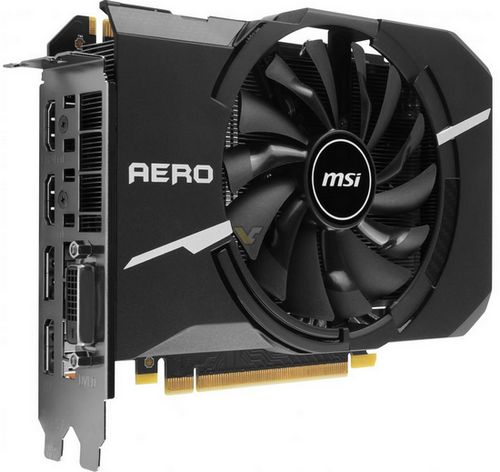

MSI graphics card GeForce GTX 1070 Aero ITX, as mentioned above, is available in two versions, one of which has a factory overclocked graphics processor to 1531/1721 MHz, and the other works with the standard frequencies 1506/1683 MHz. The length of each cards is only 184 mm, and they each have an 8-pin socket of additional power.

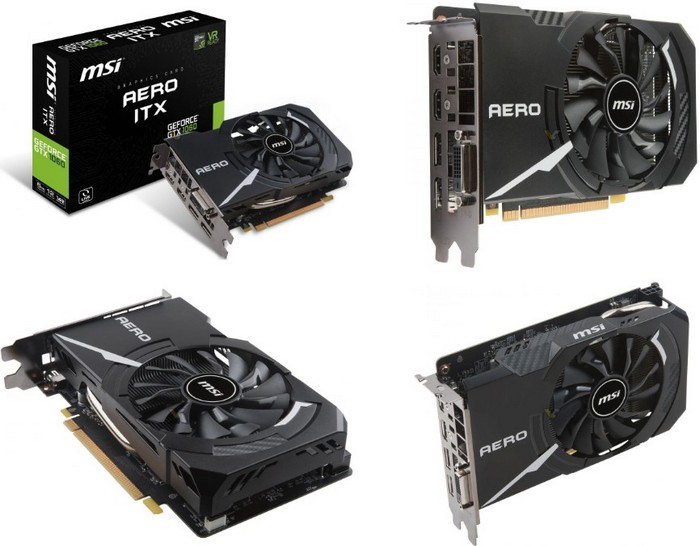

Graphic Card MSI GeForce GTX 1060 Aero ITX are available in versions with 3 or 6 GB of GDDR5 memory, which, as we recall, are built on the GP106 GPUs with 1152 CUDA cores and 1280, respectively. Each version is also available as a factory-overclocked, and without it. Both overclocked graphics processor running at a frequency of 1544/1759 MHz. The length of each cards is 175 mm, and they are powered by a 6-pin connectors.

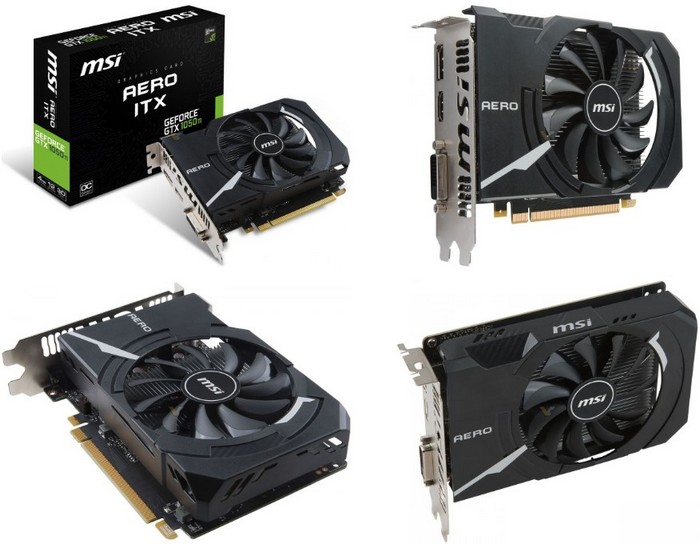

Finally, MSI GeForce GTX graphics card Aero ITX 1050 and GeForce GTX 1050 Ti Aero ITX built on an even more compact circuit boards, have a length of 155 mm, and does not require additional power supply. The model with the prefix Ti has 4 GB of memory, and its GPU running at 1341/1455 MHz. In turn, the GeForce GTX 1050 Aero ITX equipped with only 2 GB of memory, and its GPU overclocked to 1404/1518 MHz. Related Products :
|
