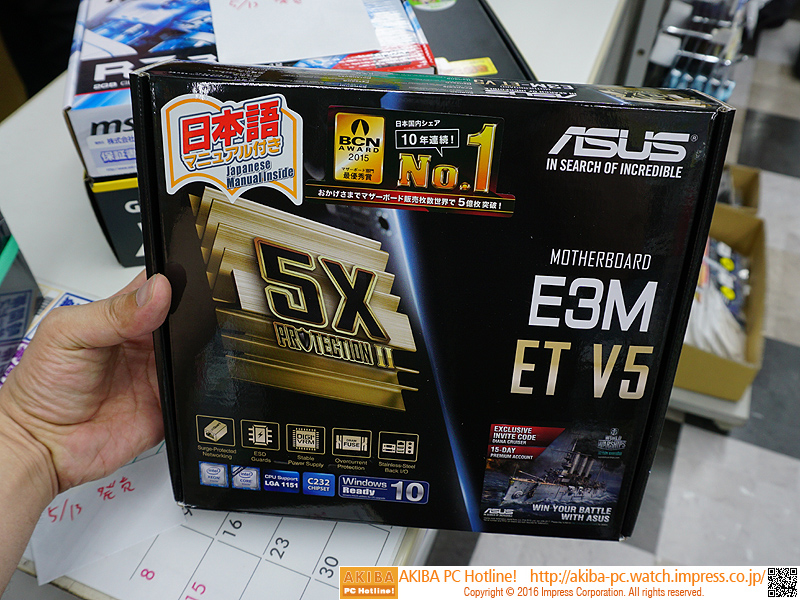

Motherboard ASUS E3M-ET V5 are prefigured in the official website of the manufacturer (the first public version of the BIOS and all dated January this year). However, commercially it was impossible to find. Fortunately, the situation began to improve. Japanese colleagues, were able to detect ASUS E3M-ET V5 in several well-known retail outlets in Tokyo's Akihabara district.
The novelty is notable in that it offers not only the chipset Intel C232, support for the Intel Xeon processor (along with household Core i3 / i5 / i7, Pentium and Celeron), and DDR4 non-ECC, but also form factor MicroATX. At this point, if you walk on the price lists of both Russian and foreign stores, motherboards based on the Intel C232, made in this size category, almost impossible to find.

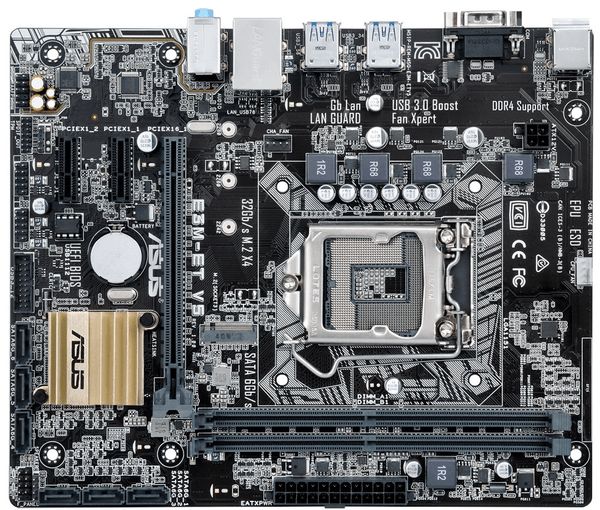

ASUS E3M-ET V5 allows the installation of up to two modules DDR4 up to 16 GB each equipped with a single slot PCI-Express x16 slots and two PCI-Express x1, a seat for installing SSD-drive form factor M.2 NGFF (supported like SATA, so and PCI-E), six SATA3 connectors, audio section based on the Realtek ALC887 controller (there was a place on the liquid electrolyte capacitors and isolation from the rest of audio section of the board) and Gigabit LAN controller Realtek RTL8111H.
The object of our attention is a class budget segment solutions.
According to the technical specification, the maximum frequency of memory - 2133 MHz. Related Products :
|
