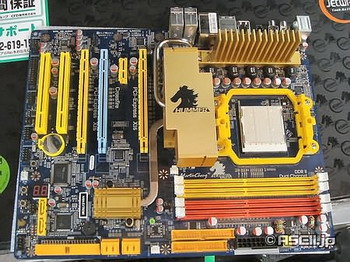

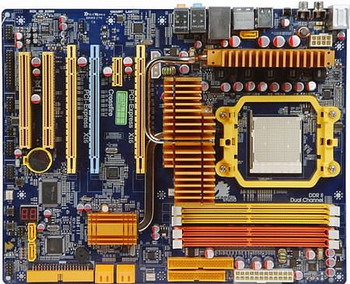

Jetway company prepared a new motherboard, which was made using AMD 790FX + SB600. This new product is called Jetway hA04-Extreme.
Jetway HA04-Extreme : is a motherboard class hi-end for the installation of socket AM2+  processors  (support processors AMD phenom and Athlon 64 X2, system bus HT 3.0).
On this motherboard there is three slots for video card installations ( PCI express 2.0 ), which work according to : x16 +  x16 or x8 +x8 +x16 ( ATI cross fire X), there is one PCI express x1 and two PCI- slots ; in addition to four memory slot ( DDR 2-1066 (up to 8 GB) ). The sound system is released with 8 channel channel  realtek/ALC888, network is made by Marvell/88E8056. It is possible to connect up to 6 serial ATA  II ports  (RAID 0, 1,0+1,10, JBOD are supported), There is one eSATA and two IDE. The Number of USB ports  is equal to 10.
This motherboard use polymeric capacitors OC_CON, operating temperatures range  from - 55c to +125ºc.
In Japan Jetway HA04-Extreme cost 230 dollars. Related Products :
|
