Korean site Bodnara.co.kr on their pages posted image motherboard B350M-DS3H Gigabyte Technology Company. Since AMD's desktop processors generation Bristol Ridge (on the Excavator core) is not available to the free market, which is expected in the next month, the producers still do not indulge us with official information about motherboard with CPU socket Socket AM4. So while we have to settle for leaks.
Gigabyte B350M-DS3H, as follows from its name, uses the south bridge B350 - is the solution for mainstream PCs that extends the capabilities of interfaces built into the APU Bristol Ridge. For production systems, AMD is rumored to offer a chipset X370 (and processors Zen core), and for the budget segment and APU Bristol Ridge prepared Southbridge A320.

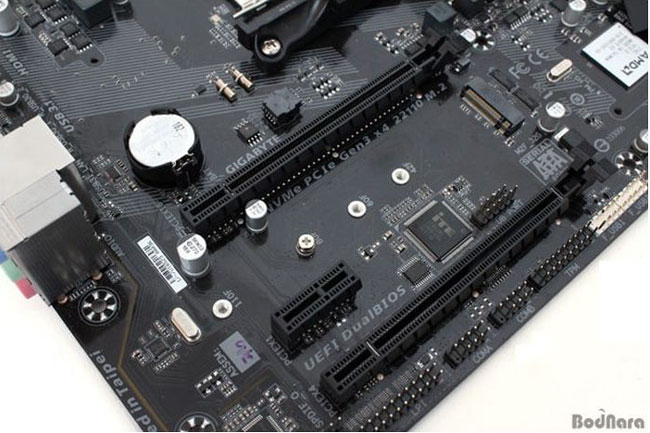

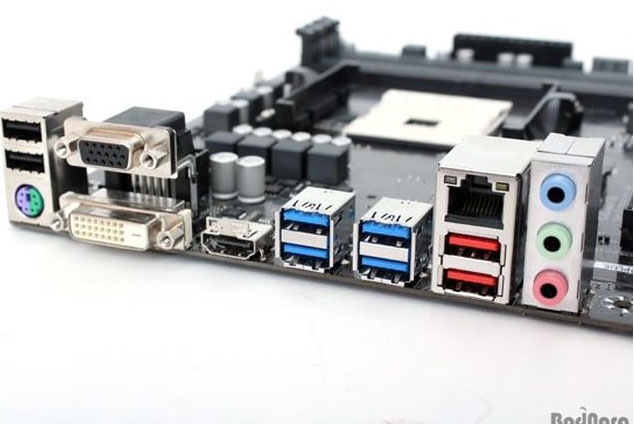

Thus, the board Gigabyte B350M-DS3H carries 1331-pin CPU socket Socket AM4, four slots for memory DDR4 DIMM and is powered through the 24-pin ATX connector and 8-pin connector EPS. You can also find on the motherboard two slots PCI Express 3.0 x16 (allowed configuration x8 / x8 or x16 / x4), one slot PCI Express 3.0 x1, six ports SATA 6 Gb / s, a single slot NVMe PCI Express M.2, four USB ports 3.0, two USB 3.1 ports and audio codec Realtek. Port USB Type-C is absent.
