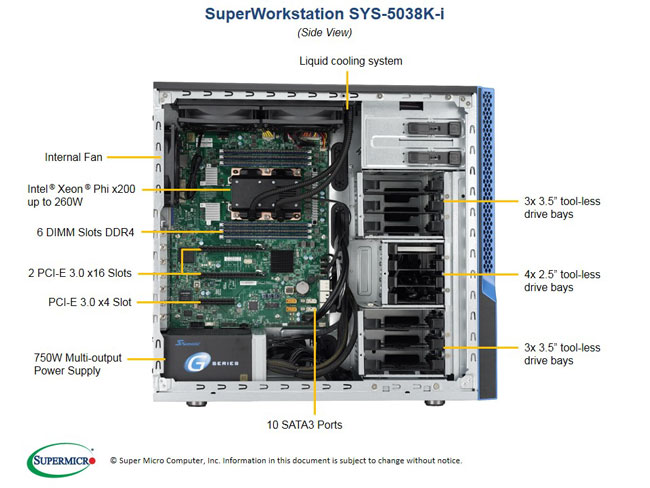

Supermicro presented motherboard K1SPE for processor socket Intel LGA 3647 (Socket P) . The board is released in ATX form factor , although focused on branded servers Supermicro SYS-5038K-i. However, this server as a desktop system unit, so that it looks a little different from a desktop PC.
The board can be set to one of the new Intel Xeon Phi x200 processors with the number of cores up to 72 pieces, support 6-channel memory ECC DDR4-2400 RDIMM (up to 192 GB) and 16 GB of onboard memory type HMC. Also, the processor is integrated PCI Express 3.0 controller with support for 36 lines. On board we can see two full-slot PCI Express 3.0 x16 slot and one PCI Express 3.0 x4. Optional Intel processors Xeon Phi x200 (14-nm Knight Landing) can carry a dual interface Omni-Path.
The processor is supported by the chipset Intel C612. The board can be detected two ports of 1 Gbit / s Ethernet, 10 ports SATA 6Gb / s port 1 VGA, 1 COM port, five USB 3.0 ports and 1 USB 2.0 port. Judging by the description of the server, CPU cooling is engaged in maintenance-free liquid cooling system with dissipation up to 260 watts. Full specs Supermicro K1SPE board can be found at this page on the company website.
