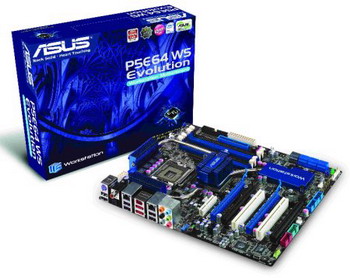

ASUS Company presented the motherboard P5E64 WS evolution, made on base of the newest chipset intel x48. Note the basic difference between X48 and X38 is the official support of FSB frequency up to 1600 MHz. Asus P5E64 WS evolution support four interfaces PCIe x16. This allow to connect up to 8 external monitors.
- Supported processors: Intel core 2/Pentium D/pentium 4 (LGA 775)
- Chipset: Intel x48 + intel ICH9R
- System bus: 1600/1333/1066/800 MHz
- Memory: 4 x DIMM, total capacity 8 GB, DDR3 1800 (overclock)/1600/1333/1066/800, Dual-channel mode
- Expansion Slots : 4 x PCIe x 16 (x16, x16, x4, x4), 1 x PCIe x 4, 2 x PCI 2.2
- Intel ICH9R controller : 6 x SATA 150/300 (RAID 0,1,10,5)
- Esata Controller : 2 x eSATA 150/300, 2 x SATA 150/300, 1 x ATA
- Audio: ADI 1988B, 8 channels, HD azalia audio
- LAN: Marvell 88E8001/88E8056 dual Gb LAN
- USB: 12 ports USB 2.0
- IEEE 1394a: 1 external and 1 internal port
P5E64 WS evolution is equipped with the energy-economy technology EPU. In addition this motherboard support AI gear3, which according to the producer, allow to attain a processor energy savings up to 80,23%.
The technology HE 95 ensure effective power by up to 28%. Furthermore, HE 95 does not require drivers or software. Device is automatically activated .
P5E64 WS evolution has also a G.P. Diagnosis card , intended for rapid check of system work .
The Motherboard P5E64 WS evolution is completely compatible with SAS- controller ASUS SASsaby. Related Products :
|
