Portwell company , which arrived for the industrial computers market in 1995 , presented its SBC- solution (single-board computer) on base Of intel centrino atom.

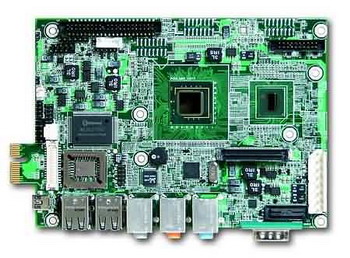

The new product, use the shape ECX factor (embedded compact extended ) : portwell PEB-2736.
PEB-2736 motherboard support up to two screens, it is equipped with flash memory and support TPM modules (trusted platform module).
Portwell PEB-2736 Technical characteristics :
- Processor: 45- nm intel atom ultra low power SFF
- Chipset: Intel US15W SCH
- FSB: 400/533 MHz

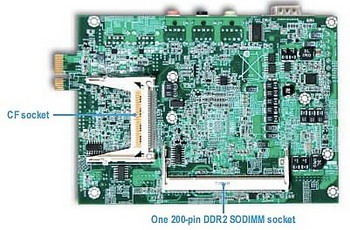

- Memory: 1 slot for 200- pin. SO-DIMM DDR2 533 ( up to 1 GB) + 44- pin.
- Monitoring fans , temperature TSP, voltages

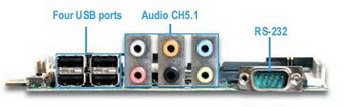

- PCIEx1/USB (2+4 ports), port RS-232
- 24- bit connector LVDS
- Video : Intel GMA 500
- Sound: High definition audio CH5.1
- Operating temperatures Range: from 0 to +60c
- Sizes: 146 X 105 mm
- OS : Windows/Linux.
|
PORTWELL PEB-2736
|
