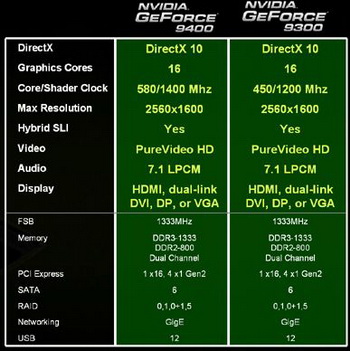

The announcement of chipset NVIDIA MCP7A was already prepared . In essence, GeForce 9400 differ from GeForce 9300 only in terms of the higher graphic core frequencies : 580/1400 MHz against 450/1200 MHz.
NVIDIA now pretend the title of the fastest integrated chipset producer for intel platform . Competition to the graphic system MCP7A can be composed only by AMD products (series 780G and 790GX), but here those chipset are for AMD processors only.

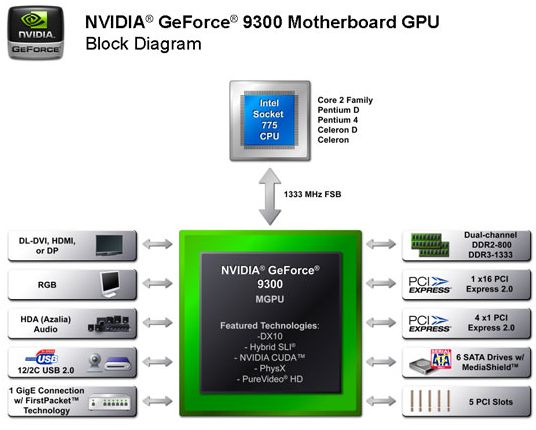

The chipset GeForce 9300 and GeForce 9400 have a one chip layout. The graphic core has 16 stream processors, ensures support to DirectX 10, PhysX, CUDA, Hybrid SLI and PureVideo HD. Both chipset are equipped with dual-channel memory controller with DDR 2-800 and WITH DDR 3-1333 support , and technologies are relased on 65 nm. They support LGA 775 processors with 1333 MHz frequency .
Twenty lines PCI express 2.0 : one slot PCI express x16 and up to four slots PCI express x1. Motherboard can include up to five slots PCI. Six ports SATA-300 are supported WITH RAID 0, 1, 0+1 and 5. Gigabit net controller supports the technology firstPacket, and USB 2.0 ports quantity can reach twelve.

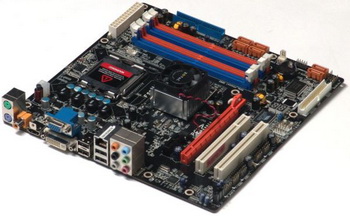

All those connection are supported : D -Sub, DVI, HDMI, RGB and DisplayPort. Here is the motherboard ZOTAC on base of chipset GeForce 9300.
The technology hybrid SLI allow to accelerate physical effects, whereas discrete video card is occupied by the three-dimensional acceleration. The cost of motheboard on base of GeForce 9x00 must be packed witin the limit $100. Related Products :
|
