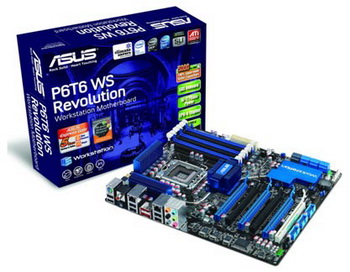

The motherboard ASUS P6T6 WS revolution is intended for work stations. It supports multiprocessor graphic systems NVIDIA 2 Way and 3- way SLI and ATI crossFireX. The total quantity of PCI expansion slots are equal to six.
The motherboard power system is based on 16+2 (16- phase vCore regulator and 2 phase power controller vDRAM/QPI, located inside the CPU). This motherboard use only polymeric capacitors. According to ASUS, all this allow to prolong the service period of components, decrease energy losses and enlarge the overclocking potential .
ASUS P6T6 W use the technology rapid load express gate.
ASUS P6T6 W characteristics :
- Processors : Intel core i7 extreme edition/core i7 (LGA1366);
- Chipset : Intel x58/ICH10R; NVIDIA nForce200;
- Memory : three-channel, DDR3 1600 (O.C.)/1333/1066 MHz with errors correction and without it; six slots for DIMM modules ; max volume 12 GB;
- Expansion Slots : 2 x PCIe 2.0 x16 (x16 or x8); 1 x PCIe x16; 2 x PCIe x8; 1 x PCIe x4; ;
- Controller intel ICH10R, 6 x SATA 3 Gbit/s, RAID 0, 1, 0+1, 5 and JBOD; marvell 88SE6320 ext SAS (2 ports SAS with RAID 0, 1 support ); marvell controller 88SE6121 ext SATA (2 ports eSATA with RAID 0, 1 support );
- Sound system : codec ADI 2000B, 8 channels, HD audio;
- Network adapter : realtek 8111C, two Gigabit ethernet with teaming regime support ;
- Ports USB 2.0 : 12.
