Ultra Products X-Finity ULT-XF600 (600W)
The ULT-XF600 is manufactured by Wintech and is based on the same components as
the previous model. The difference between the two is mainly in the cooling
system design. For some unclear reason the senior model is cooled with two
coaxially mounted 80mm fans rather than with a single 120mm fan.
Ultra Products X-Finity ULT-XF600 (600W)

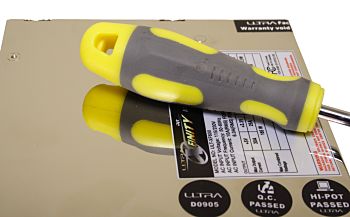

The steel case of the PSU looks matte in the snapshot but it is steel indeed.
Ultra Products X-Finity ULT-XF600 (600W)

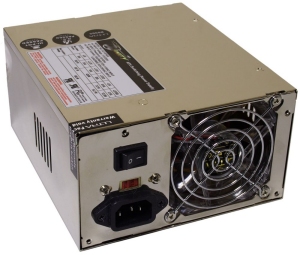

Like the ULT-XF500, this power supply supports input voltages of 110V and
220V. The switch is placed in its traditional location here, next to the mains
connector.
Ultra Products X-Finity ULT-XF600 (600W)
Ultra Products X-Finity ULT-XF600 (600W)
Ultra Products X-Finity ULT-XF600 (600W)

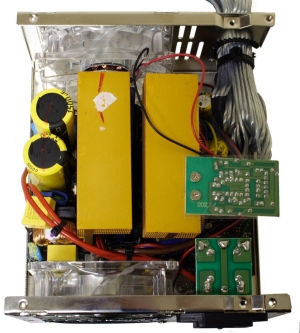

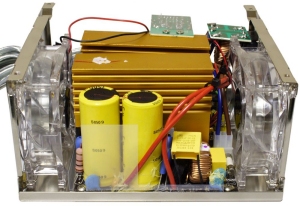

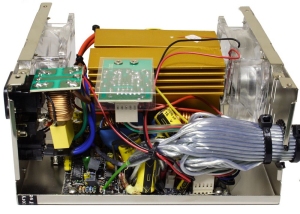

It’s easy to see the ULT-XF500 and ULT-XF600 are based on identical PCBs but
differ in the ratings of the components (the high-voltage capacitors on the
input of the senior model are 1500µF rather than 1000µF now, and the heatsinks
are larger). One of the fans is smugly nestled in the gap between the PCB and
the panel that was empty in the ULT-FX500; the engineers had to make the case a
little longer to fit the second fan.
Ultra Products X-Finity ULT-XF600 (600W)

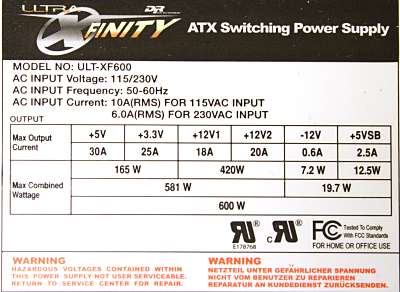

The load capacity of the PSU has increased according to its wattage. The
allowable current on the +12V rail is 3A higher in comparison with the junior
model, but the max load on the +5V and +3.3V rails hasn’t changed much.
The PSU is equipped with the following cables and connectors:
Mainboard cable with a 24-pin connector (with a detachable 4-pin part); 45cm
long
CPU cable with an 8-pin EPS12V connector; 51cm
CPU cable with a 4-pin ATX12V connector; 49cm
Two graphics card cables with 6-pin connectors; 51cm
Two cables with four Molex connectors and one floppy mini-plug on each; 49cm
to the first plug and then 15cm more to each next plug
Two cables with two SATA power connectors on each; 16cm+15cm
Like those of the previous model, the cables are flat and silvery. Curiously
enough, they have put multicolored marks on the wires where the cables are
soldered to the power supply’s PCB.
Alas, the cross-load characteristic of this power supply is worse than its
predecessor’s: the +5V and +3.3V voltages are rather stable, but the +12V is
obviously set too low. As a result, this voltage is going to sag to 11.5-11.6V
in a modern computer where it has to bear the main load while the low-voltage
rails are under a load of 30-50W only.
At a load of 560W the voltage ripple is 35 millivolts on the +5V rail, 70
millivolts on the 35V rail, and 40 millivolts on the +3.3V rail. The
higher-capacity capacitors on the input do not help the PSU cope with a
low-voltage pulsation which still persists
The PSU is cooled with two 80x80x25mm fans of an obscure origin (they are
labeled “Ultra”, but I doubt Ultra Products itself manufactures fans and
transports them to Taiwan for Wintech). The speed of the fans depends almost
linearly on the PSU temperature. The unit is quiet, almost silent, at low loads,
but at loads of 200-250W the fans are perfectly audible.
The efficiency and power factor graphs for this unit are almost the same as
the ones for the ULT-XF500. This is expectable considering their similar circuit
design. The efficiency is 81% at the maximum.
So, the X-Finity ULT-XF600 power supply has the same pros and cons as the
junior, ULT-XF600 model. This PSU doesn’t have any exceptional traits (I don’t
count in the silvery cables among such since owners of non-transparent system
cases won’t notice them at all while other users are offered much more exciting
options like shining cables, for instance). Its +12V voltage is set too low; it
has a rather strong low-frequency pulsation on the output and is rather loud
under high loads. If you are not worried about these drawbacks, the PSU will
suit you fine. It is quite capable of powering up a modern computer.
